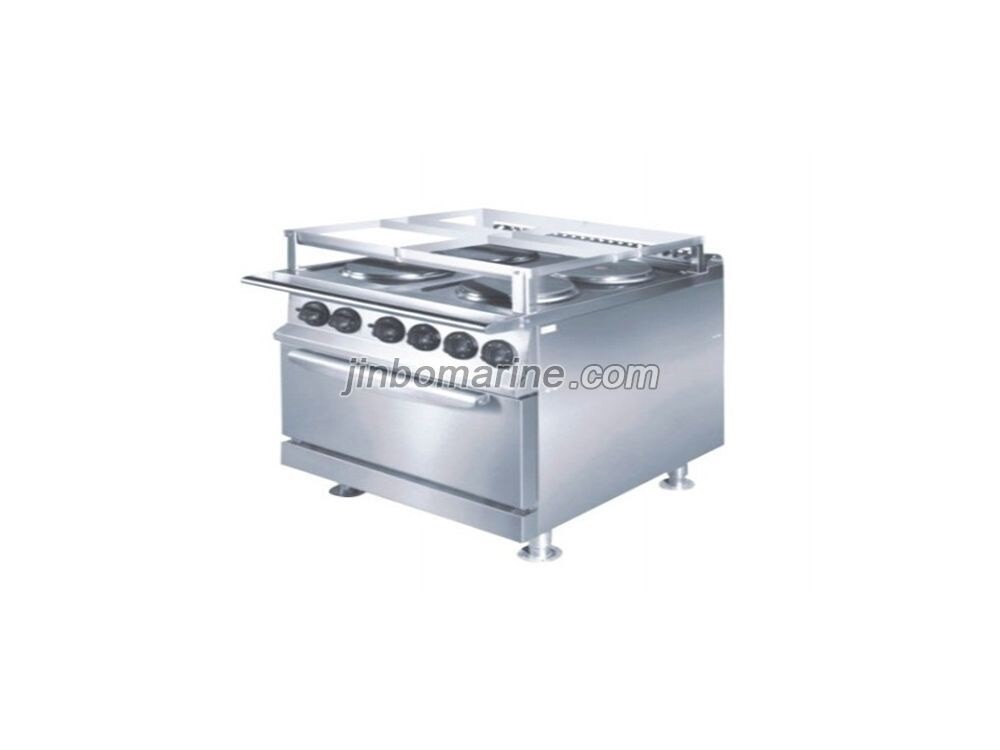

DZR6/R Round Hot Plate Marine Cooking Range W/Oven

Request a Quote Not what you need, please send your RFQs via Email.

Details

DZR6/R Round Hot Plate Marine Cooking Range W/Oven

1.Complete stainless steel execution.
2.7-stop thermal control knob.
3.With handrail and storm racks.
4.The hot plates can stand abrasion,corrosion and high temperature.
5. Hot plates and control elements are imported from Germany.
6.Oven or locker can be set up under the range.

DZR6/R Round Hot Plate Marine Cooking Range W/Oven Specification


Model Voltage Rating Size(WxDxH)mm Weight
DZR4 380-415V/3P/50Hz
440-480V/3P/60Hz
10.4Kw 700x700x850 65kg
DZR4/R 380-415V/3P/50Hz
440-480V/3P/60Hz
15.2Kw 700x700x850 105kg
DZR6 380-415V/3P/50Hz
440-480V/3P/60Hz
15.6Kw 1050x700x850 80kg
DZR6/R 380-415V/3P/50Hz
440-480V/3P/60Hz
20.4Kw 1050x700x850 120kg
