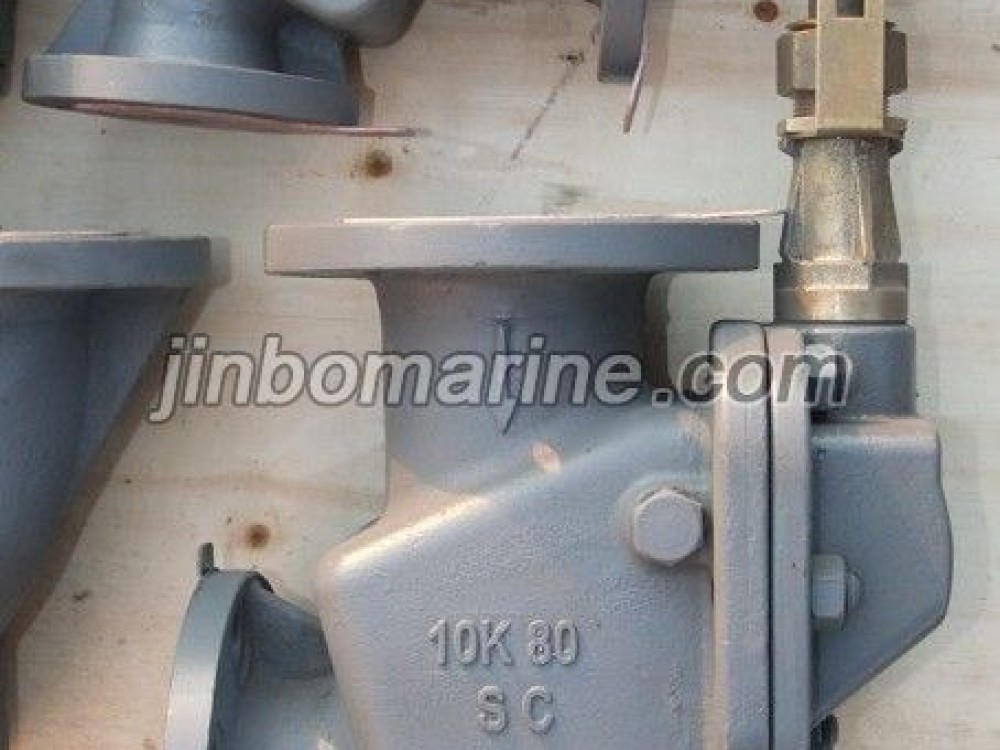

Marine Cast Steel Angle Storm Valve JIS F3060R 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Steel Angle Storm Valve JIS F3060R 10K:

Design Standard: JIS F3060-1996

Test Standard: JIS 7400-1996

Flange size as per JIS B2220 - 10K

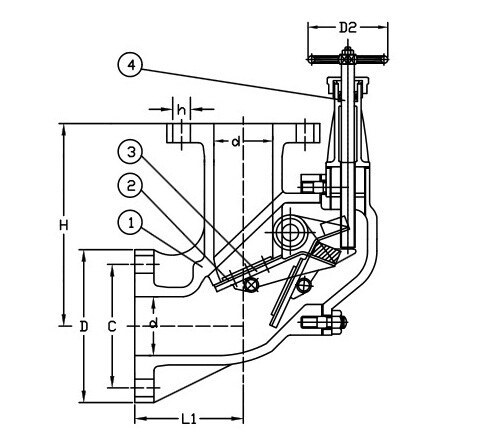

Main Material:

1-Body: Cast Steel (SC480)

2-Seat: Rubber(NBR)

3-Disc: Bronze (BC6)

4-Stem: Stainless Steel (SUS403)

Main Size List(mm):

DN L1 H D C No. h t D2
50 90 170 155 120 4 19 14 100
65 110 200 175 140 4 19 14 100
80 120 220 185 150 8 19 14 125
100 130 250 210 175 8 19 16 125
125 150 270 250 210 8 19 16 125
150 170 310 280 240 8 23 18 125
200 190 400 330 290 12 23 22 125
