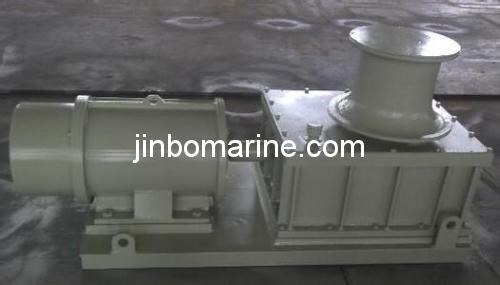

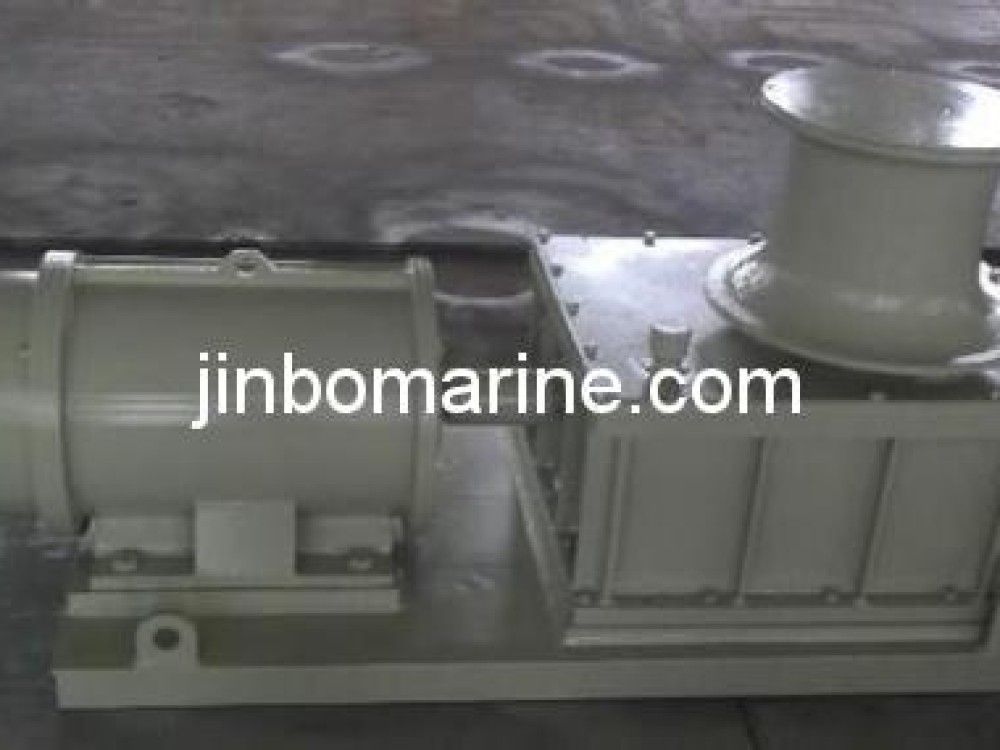

Electric Anchor Capstan
- Category:Marine Capstan
- Material:Cast steel
- Standards:standard
- Certificate:CCS，Rina，ABS, BV, GL,
- Packing Details:Nude Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Electric Anchor Capstan:
Electric(hydraulic) Anchor Capstan
General description
The combined and capstan are for heaving, launching and mooring, which are in accordance with ISO4568-1986<>. They are driven by hand, electric, hydraulic and diesel engine. The structure types are divided into: systematic double-chain anchor winch (A type);single-chain anchor winch(B type) anchor capstan(E type).
Type illustration
The first letter: D-electric Y-hydraulic S-manual C-diesel engine
The letter M: anchor winch
The third letter: Type A,B,E
Main technical parameter
| Type | anchor chain diam | working load | over loading | loading support | nominal speed | mooring load | |||
| (mm) | AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | m/min | Kn | |
| D(Y)ME-17.5 | 17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 | 10 |
| DME-19 | 19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 9 | 15 |
| DME-20 | 20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 9 | 20 |
| DME-22 | 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 9 | 20 |
| DME-24 | 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 | 20 |
| DME-26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 | 20 |
| DME-28 | 28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 9 | 20 |
| DME-30 | 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 | 30 |
| DME-32 | 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 | 30 |
| DME-34 | 34 | 49.1 | 54.9 | 73.3 | 82.4 | 294 | 421 | 9 | 40 |
| DME-36 | 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 | 30 |
| DME-38 | 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 | 40 |
| DME-40 | 40 | 68 | 76 | 102 | 114 | 402 | 576 | 9 | 40 |
