Electrical Fire Monitor 30-80L/S
- Category:Fire Monitor
- Delivery Time:10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Electrical Fire Monitor 30-80L/S:
TYPE: JBPSKD30-80
Flow Range: 30-80L/S Automatic Nozzle
Working Pressure: 6 bar~ 10 bar
Max Reach @ Max Flow: 85m
Max. Range of motion: +/-90°Vert , 350°Rot
Max fog angle :120°
Turning speed:18 degrees/sec
Material (body):304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear):hardcoated anodizing aluminum
Material (nozzle):Aluminum
power supply:12/24VDC or 100-230VAC
Power Consumption normal/Max:50W/150W
Weight incl. nozzle:appox 28kg
Cable Length Monitor- CPU:5m
Cable Length Joystick-CPU:5m standard/ other length available
Pump requirement for minimum performance:80L/S@ 8 bar
Pipe dimensions for installation: 3 Inch
Monitor Inlet :3” male BSP or DN100 flange
Monitor Outlet:2.5 inch (65mm)
Water way size: 3 inch

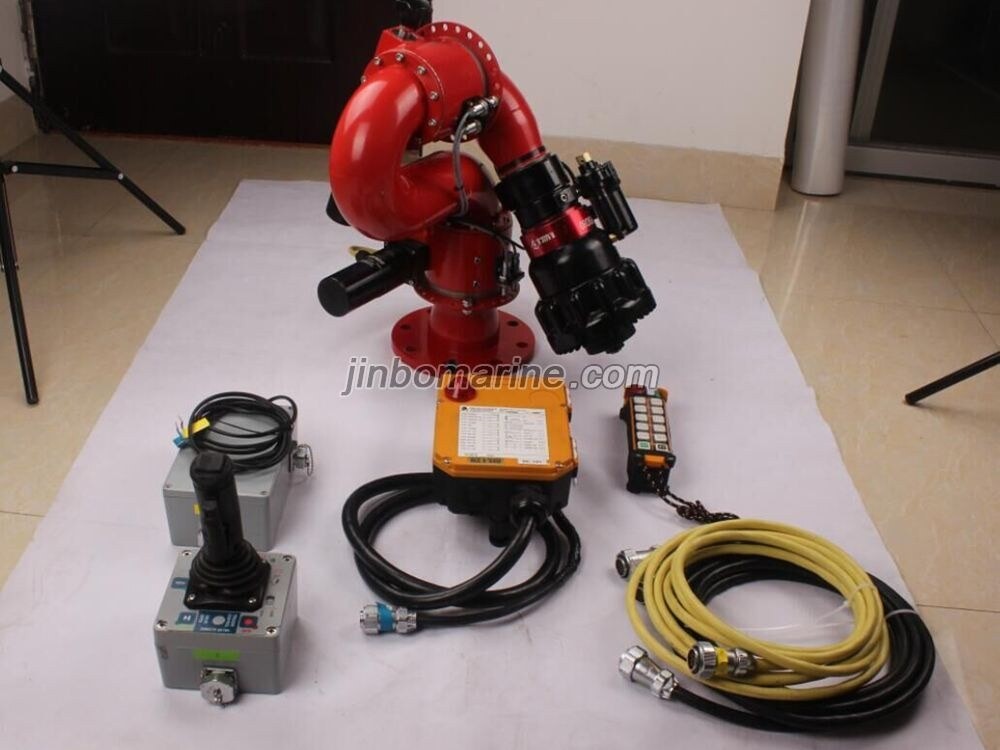

PACKAGE: SS MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL
Flow Range: 30-80L/S Automatic Nozzle
Working Pressure: 6 bar~ 10 bar
Max Reach @ Max Flow: 85m
Max. Range of motion: +/-90°Vert , 350°Rot
Max fog angle :120°
Turning speed:18 degrees/sec
Material (body):304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear):hardcoated anodizing aluminum
Material (nozzle):Aluminum
power supply:12/24VDC or 100-230VAC
Power Consumption normal/Max:50W/150W
Weight incl. nozzle:appox 28kg
Cable Length Monitor- CPU:5m
Cable Length Joystick-CPU:5m standard/ other length available
Pump requirement for minimum performance:80L/S@ 8 bar
Pipe dimensions for installation: 3 Inch
Monitor Inlet :3” male BSP or DN100 flange
Monitor Outlet:2.5 inch (65mm)
Water way size: 3 inch
PACKAGE: SS MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL
