Environmental Protection Marine Fuel Homogenizer
- Category:Marine Fuel Homogenizer
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Environmental Protection Marine Fuel Homogenizer:

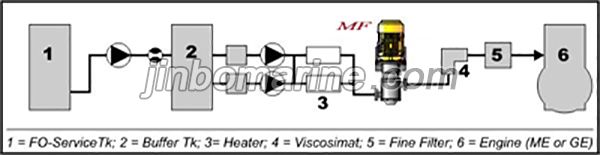

Jinbo marine provides a homogeneous fuel structure with droplet sizes below 3 microns. Considering this fact, it is clearly understandable, that the re-agglomeration effect of the contained asphaltenes is widely reduced. The fuel through homogenizer,it will burn to a much higher rate than conventional fuel. For increased power output and widely reduced exhaust emissions.
Benefits
Can use cheapest fuel IFO 700+ without loss of performance.
Stable combustion process, with less emissions like soot, black-spot soot, particulates and NOx.
Reduced agglomeration effects of contained asphaltenes during transfer to Main Engine and Generators.
Reduced surface layers on turbo chargers, exhaust ducts, boiler walls, piston crowns, piston rings, cylinder liners, etc.
Extendable flushing intervals of FO Filters(less sludge generation, increased stability of filter elements, etc.)
Sludge Reduction
As per analysis of conventional sludge, big amount of asphaltenes, which are of high calorific value, conventionally will be separated, independent of their combustibility, but only because they agglomerated to a larger size than the reference size for separation. Jinbo homogenizer prevents the agglomeration of asphaltenes. With the result, that more fuel is passing the separator, which now is remarkably unloaded from the separation process. Considering these facts, Mcrofuel fuel conditioning improves the fuel handling from the economic and the ecologic point of view.
The Benefits
Sludge Reduction up to 85%
Wasted HFO Reduction by 85%
Short Amortisation Period
Option to reduce Sludge Tank capacity by 50%MARPOL 73/78 Conformity
Reduce sedimentation (Tank Circle)

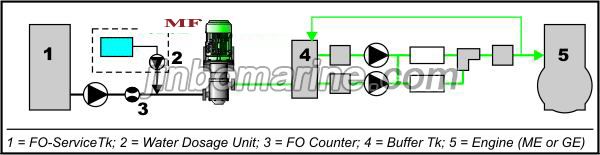

Fuel Emulsion Device
Latest IMO Regulations require the elimination of hazardous NOx- emissions, The Jinbo emulsion device is a cost-effective and functional plant to reduce NOx. It requires only little installation space compared to other solutions and without any engine medifications. The use of a stable water-in-diesel-emulsion is the easiest way to achieve a significant NOx reduction. With the great advantage, our device can be used for all kind of diesel engines from slow speed 2-stroke to high speed 4-stroke engines, without rising fuel consumption. The portion of water is one indication to judge the reducing effect. 1% of water added to the fuel lowers the NOx formation by also 1%. But only when completely emulsified to the fuel. The Jinbo emulsion device is the effective, economic and beneficial solution to operate both existing ships and new buildings in accordance to the IMO 2000 NOx limitations.
The Benefits
Reduced NOx-Emissions
Improved combustion quality
Usable for slow-speed 2-stroke and medium / high-speed 4-stroke engines
No increase in fuel consumption
Usable from light to heavy fuels
Usable for both existing ships and new buildings
Plus, all the advantages of the established Combustion Improve functions

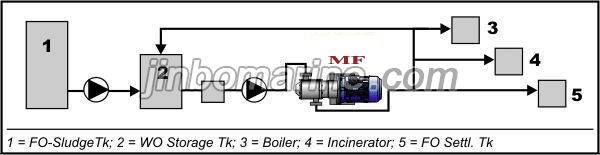

Waste oil Regeneration
Both FO-Sludge and waste oilsnd like luboils etc., generated from engines and aggregates, are obligatory to be stored in separate tank facilities. An on-board disposal or consumption in boilers and incinerator plants is tried to be used, but often only insufficiently possible.
Jinbo Homogeniter offers a functional solution in effective pre-treatment of any remaining FO-Sludges and ordinary waste oils. The fine blended FO-Sludge and waste oils can be easily burned in boilers and incinerators. Additionally the blend made by the plant could be transferred to the FO-Settling tank for consumption in Main Engines and/or Generators, without any operation hampering side effects.
Benefits
Full MARPOL 73/78 conformity as per latest Appendix, Supplement 1 MEPC(Cir. 235 / 11.5.1 The homogenization system should assure that the entire contents of the mixing tank should be processed into a homogenous and combustible mixture.)
Incinerator operation possible without using expensive DO
Rrecoverage of former sludge disposals as valuable operation fuel for use in both Main Engines and Generators
Recoverage of conventional waste oils and oiler residues
Stable blending of FO-Sludge with DO / MDO / HFO if required.

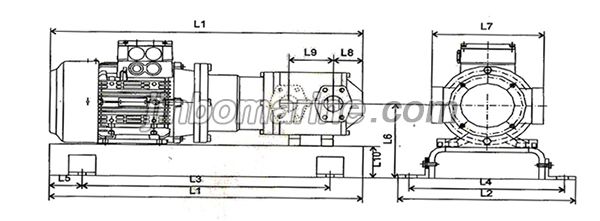

Environmental Protection Marine Fuel Homogenizer Technical Specifications
TYPE | MF30 | MF60 | MF90 | MF120 | MF250 |
L1 – mm | 750 | 890 | 890 | 890 | 1350 |
L2 – mm | 280 | 420 | 420 | 420 | 560 |
L3 – mm | 500 | 720 | 720 | 720 | 910 |
L4 – mm | 240 | 390 | 390 | 390 | 490 |
L5 – mm | 50 | 130 | 130 | 130 | 220 |
L6 – mm | 170 | 230 | 230 | 230 | 290 |
L7 – mm | 220 | 270 | 270 | 270 | 375 |
L8 – mm | 130 | 170 | 170 | 170 | 200 |
L9 – mm | 110 | 110 | 110 | 110 | 175 |
L10 – mm | 75 | 100 | 100 | 100 | 110 |
Capacity m3/h | < 1.5 | < 4.5 | < 9.0 | < 12.0 | < 25.0 |
Pressure kg/cm2 | < 10.0 | < 12.0 | < 12.0 | < 12.0 | < 16.0 |
Temperature Co | < 160 | < 160 | < 160 | < 160 | < 160 |
Viscosity | < 700 | < 700 | < 700 | < 700 | < 700 |
cSt at 50 Co | |||||
Motor Power | 3.5/5.5 | 5.5/6.3 | 7.5/8.6 | 9.5/11.0 | 22.0/25.0 |
kw/50/60Hz | |||||
Voltage V 50/60Hz | 380/440 | ||||
R.p.m. | 2880/3455 | 2880/3455 | 2880/3455 | 2880/3455 | 1465.1765 |
Insulation | IP55/IC411 | ||||
Pipe Dia. in/out mm | 32/32 | 40/40 | 50/50 | 65/65 | 100/100 |
Weight kg | 50 | 110 | 120 | 135 | 190 |

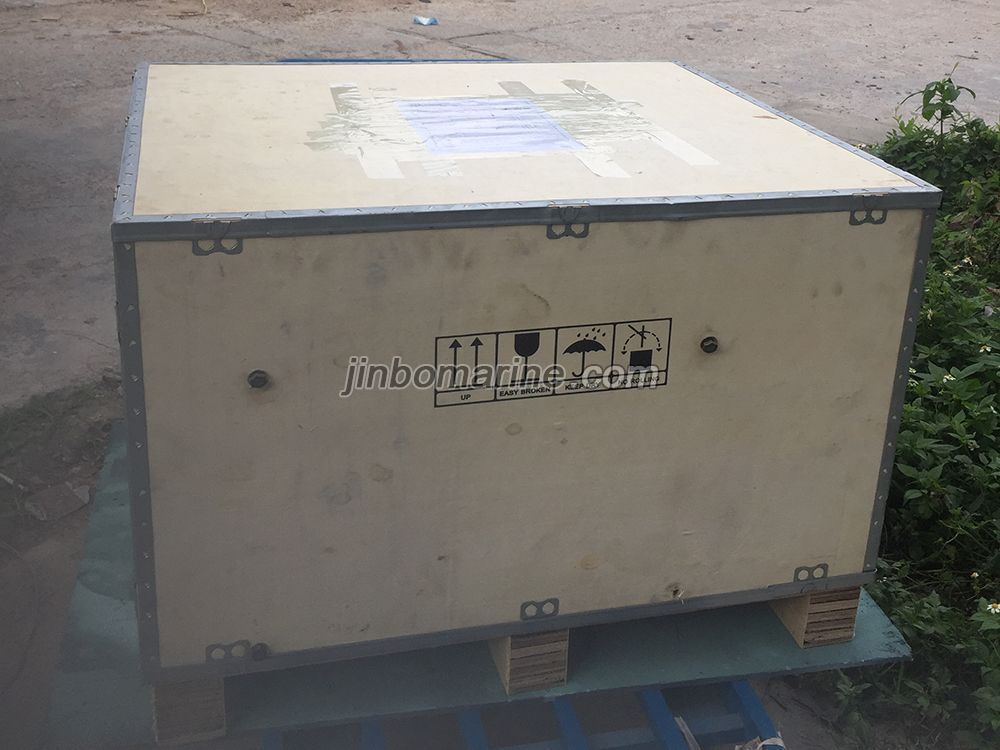

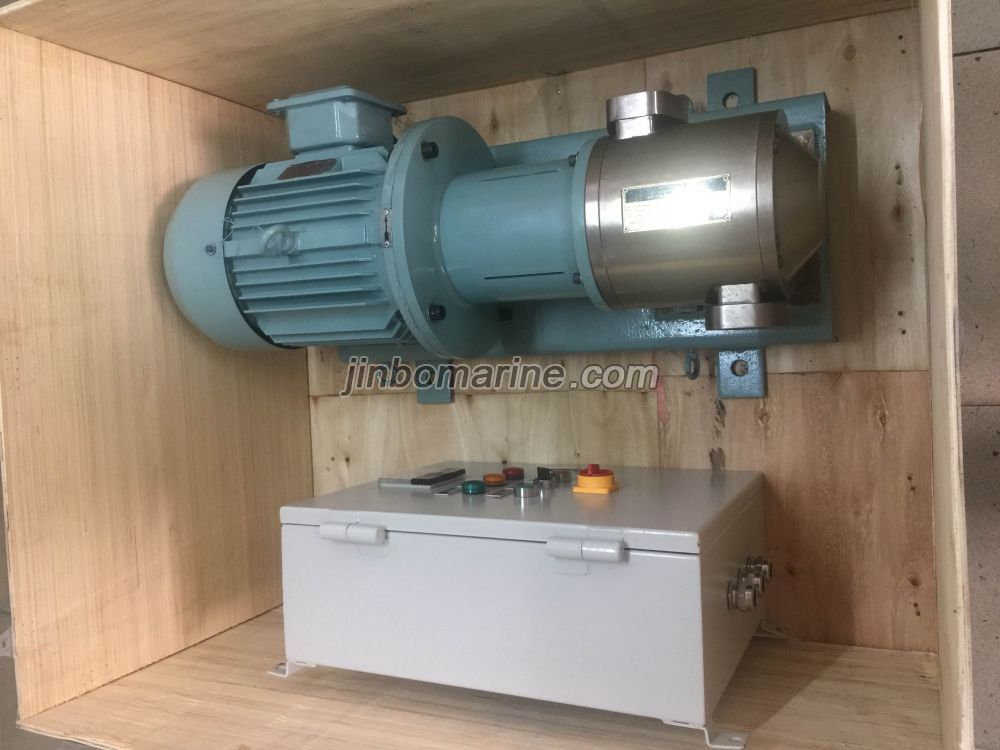

Packing and Export to Malaysia:
