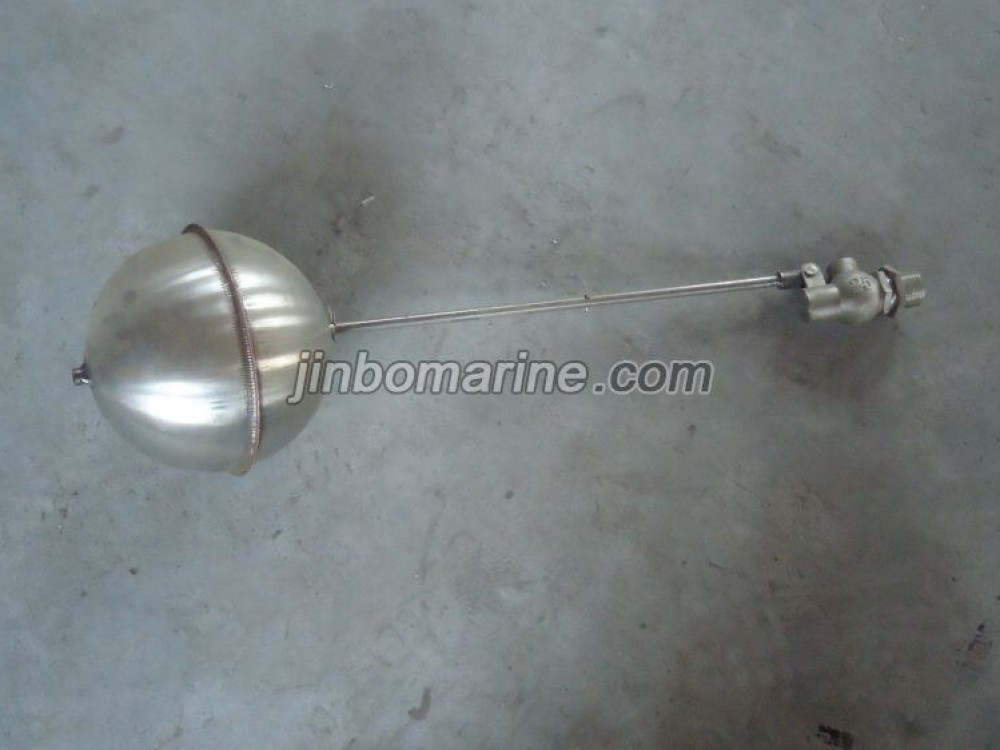

Float Ball Valve
- Category:Marine Level Switch
- Material:Stainless Steel and Carbon Steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

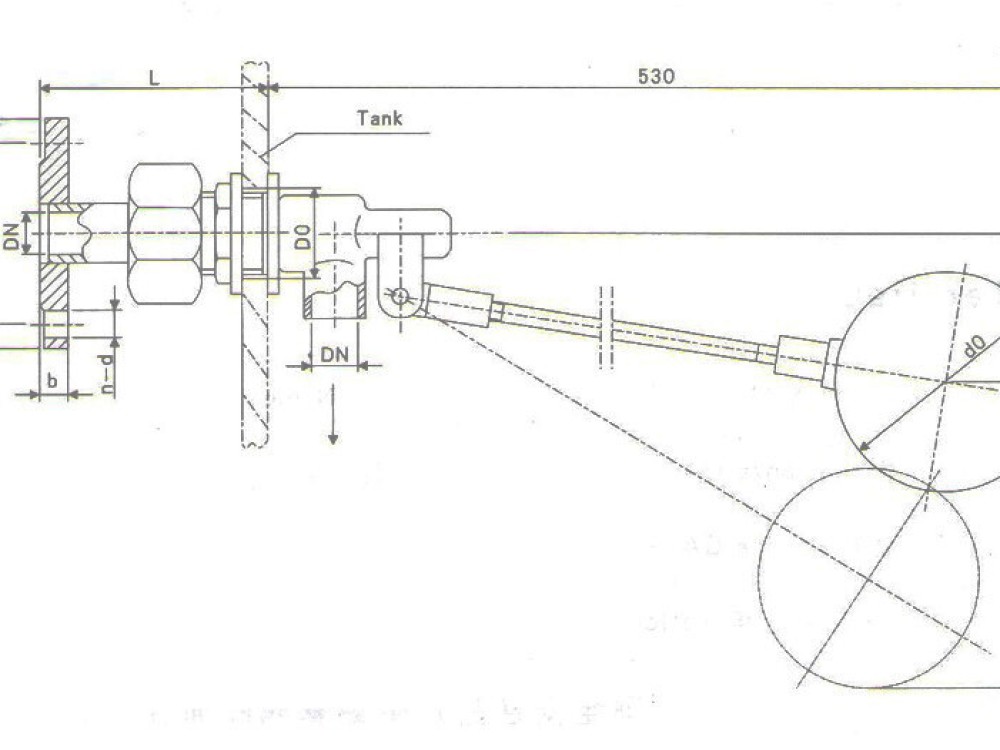

Float Ball Valve Drawing
China Float Ball Valve:
The float ball valve is applied to control the water level for various kinds of water supply tanks on the vessel. When the water level is rising,the float vall is rising with water level and reach a certain position, the valve is closed by the connection rod. When the water level is dropping, the float ball valve drops with the water level and the valve is opened by the connection rod, and keep the water level at the constant position.
Main Size List(mm):
Nominal Size | Structure Size | Flange Size | Ball Dia | Tank Opening Hole Dia | ||||||
DN | H | H1 | L | D | D1 | b | n | d | d0 | D0 |
15 | 320 | 78 | 95 | 95 | 65 | 14 | 4 | 14 | 150 | 36 |
25 | 320 | 78 | 95 | 105 | 75 | 16 | 4 | 14 | 150 | 36 |
20 | 330 | 80 | 95 | 115 | 85 | 16 | 4 | 14 | 180 | 38 |
32 | 360 | 100 | 110 | 140 | 100 | 16 | 4 | 18 | 180 | 50 |
