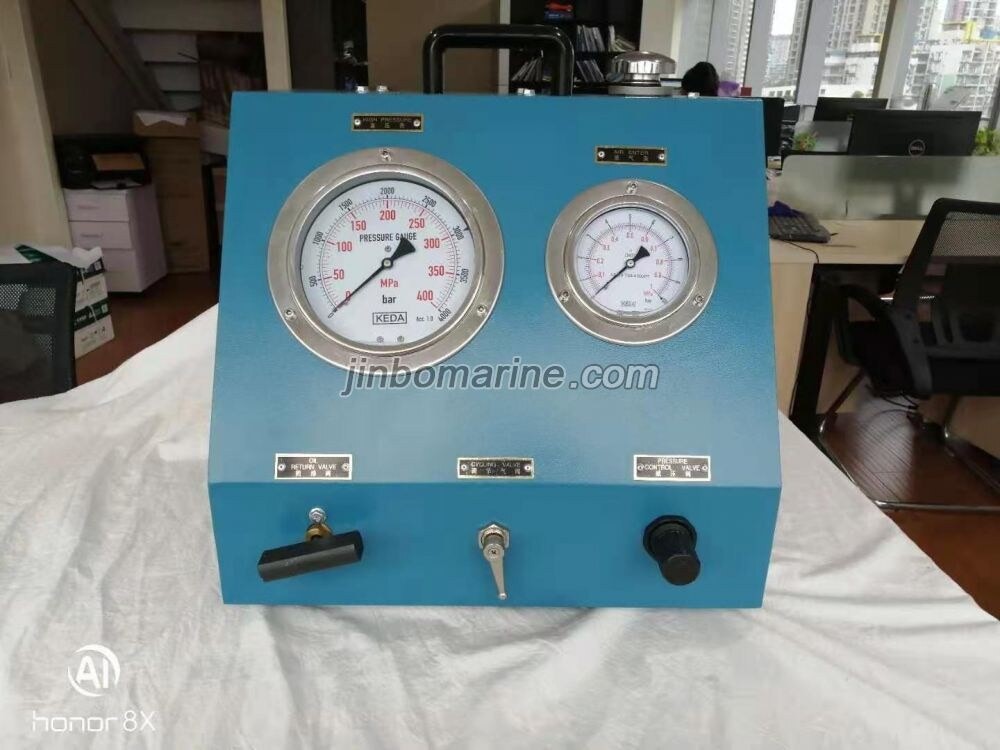

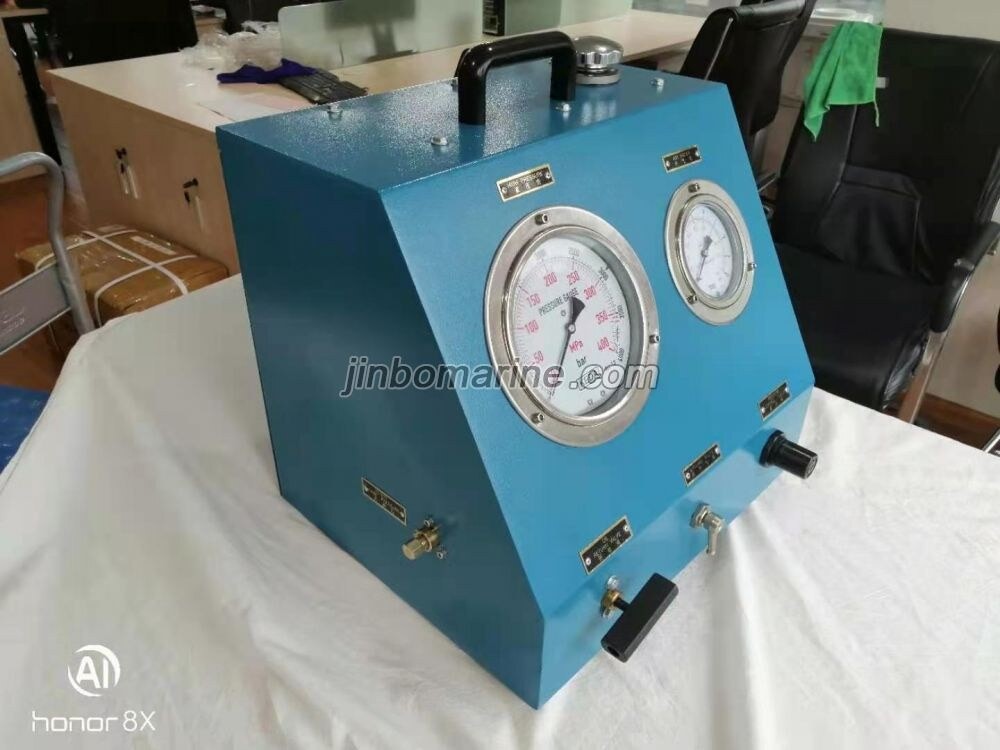

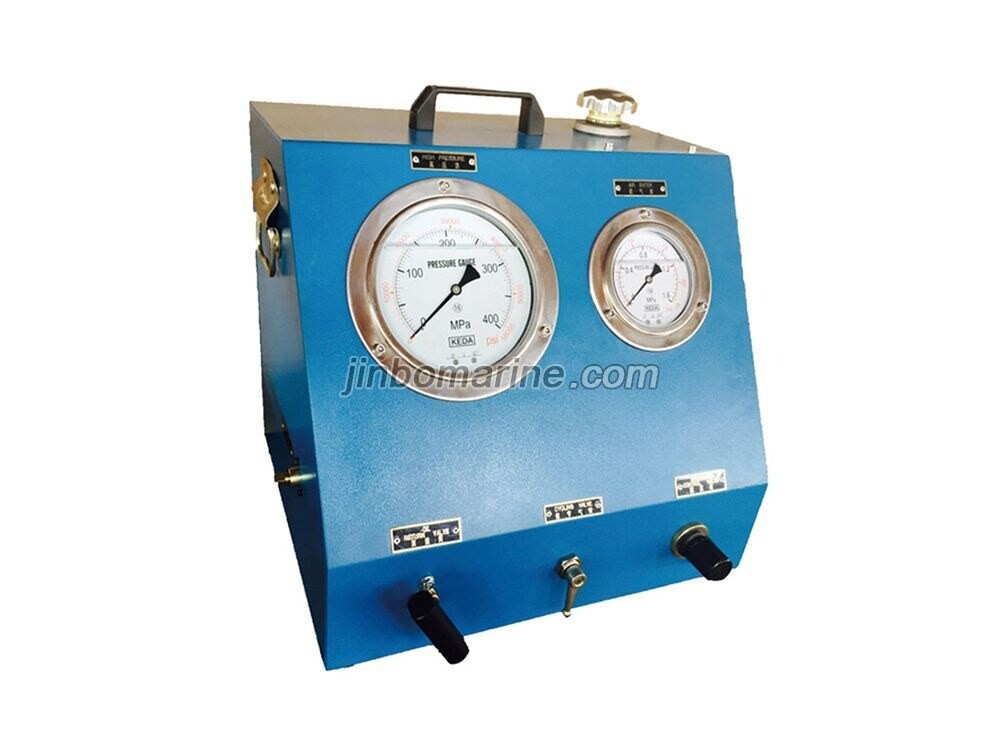

FYB-150 Air Driven High Pressure Hydraulic Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

China FYB-150 Air Driven High Pressure Hydraulic Pump:

FYB-150 Air Driven High Pressure Hydraulic Pump is a new type of hydraulic stretching and pressing equipment. It transforms the lower air pressure into pressure oil and becomes an ideal power source.

FYB series hydraulic booster pump has the advantages of high output pressure, simple operation, safe and reliable, easy to carry and so on. It can be widely used in large and medium-sized mechanical screw fastening, large transmission parts and keyless matching of structural parts in metallurgical mining, petrochemical industry, shipbuilding industry, locomotive and vehicle manufacturing industry. It is an ideal tool for assembling and matching various large and medium-sized machines.

Model FYB-150
Weight 16 KG (net weight
Size 310*380*535 mm
Output pressure Maximum 150MPa (8 bar of input air pressure)
Pump working speed About 550 cydles per minute
(8 bar of input air pressure)
Tank capacity 3.5L
Air consumption 500 liters per minute
(8 bar of input air pressure)
Maxi flow (At no pressure) About 0.3 litres per minute
(8 bar of input air pressure)
Oil supply per circle 0.45 illiliters
(0.027 cubic inches)
