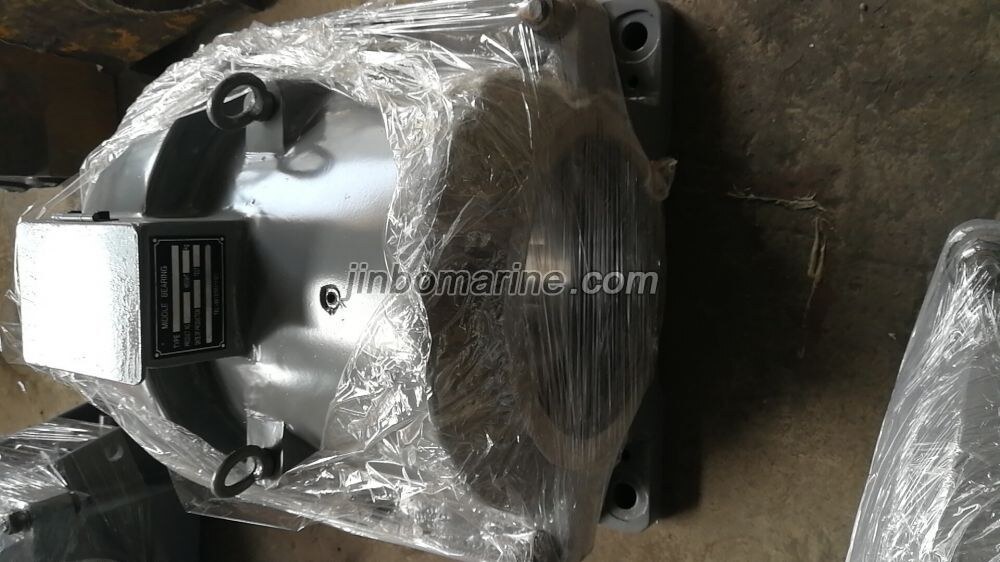

GB/T 14364 Type A Sliding Intermediate Bearing

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China GB/T 14364 Type A Sliding Intermediate Bearing:

type A is used for shaft size 80-220mm. Easy install and High Quality.

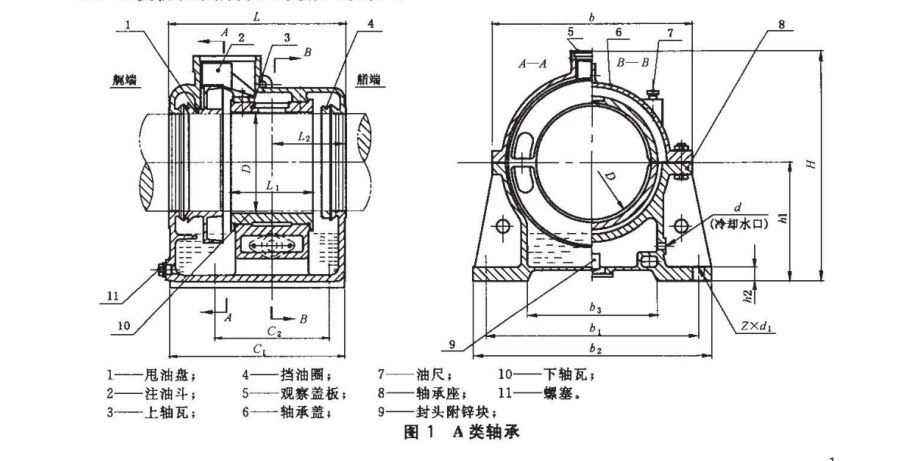

Size D L L1 L2 H h1 h2 b b1
80 190 65 79.5 262 135 23 220 250
100 200 80 85.0 270 145 23 240 270
120 225 100 97.0 312 160 25 270 300
140 250 115 107.5 370 190 28 300 330
160 280 130 119.0 400 205 28 330 360
180 335 145 130.0 485 265 30 360 400
200 350 160 150.0 496 275 35 390 430
220 380 180 164.0 544 292 38 430 470
Size D b2 b3 C1 Ca d Zxd1 Weight KG
80 300 115 185 135 G3/4" 4X21 35
100 320 120 195 145 G3/4" 4X21 40
120 350 150 220 170 G3/4" 4X21 50
140 380 170 245 195 G3/4" 4X21 63
160 410 200 275 225 G3/4" 4X21 75
180 460 220 330 270 25 4X25 124
200 490 250 345 285 25 4X25 136
220 530 280 375 315 25 4X25 165
