GCCJ-08 Intelligent Extended Alarm Display Board

Request a Quote Not what you need, please send your RFQs via Email.

Details

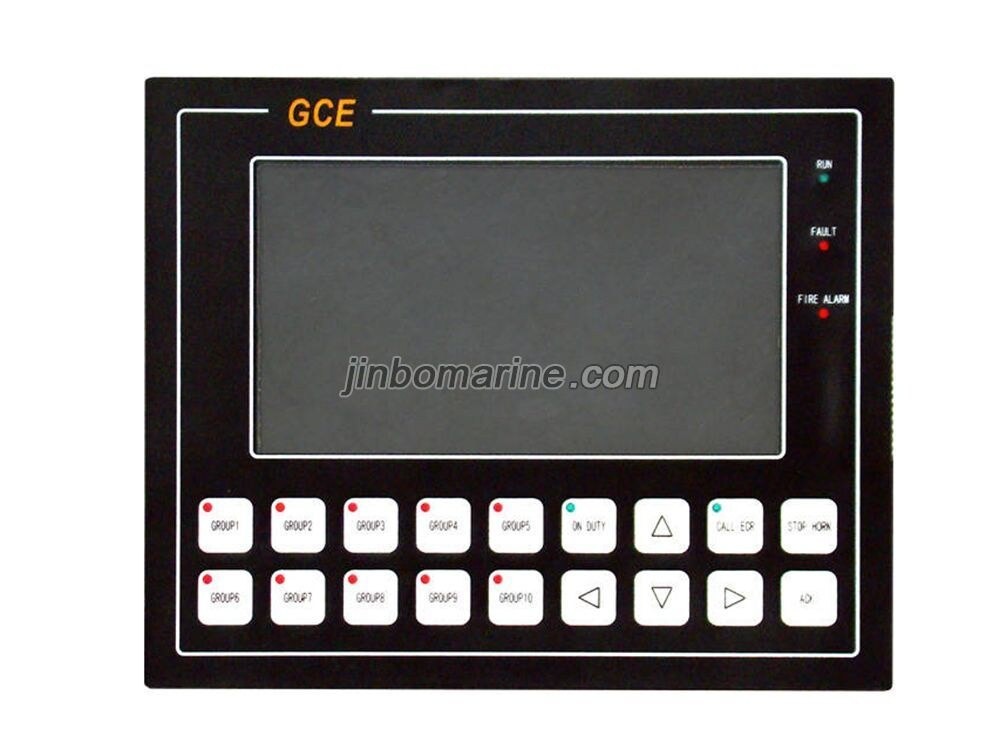

GCCJ-08 Intelligent Extended Alarm Display Board

Designed using microprocessor MCU control technology, with a working voltage of DC24V, the product panel is made of PVC veneer technology, which has the advantages of compact structure, convenient installation, beautiful appearance, and reliable performance. Mainly used for extended display of computer monitoring systems.

Function
1.Time display synchronization function2.Dimming function
3.Touch function
4.Real-time alarm function
5.Alarm display and statistics function6.Alarm sound function
7.Alarm silence confirmation function8.Alarm list display function
9.Group display function
10.Automatic record alarm function
11.Chinese and English switching function12.Engineer call
13. Duty alarm
14.Independent fire alarm function15.Engineer safety alarm
Technical Parameters
1.Normal usevoltage: DC24v
Operating voltagerange: DC20.4v~DC28.8V2.Operating temperature range: 0 °C~+50 °cStorage temperature range:-20 °C~+60 °c3.Use humidity range: 10~90% RH
4.Use the elevation: below 2000m5.Pollution degree: 2
6.Instant stop time: 10ms or less7.Inrush current: below 30A
8.Withstand voltage: AC1000v9.Insulation resistance: DC500V10.Power consumption: below 19w
11.Touch screen size: 7 inches(for alarm extension) or 10inches (for remote control system)
