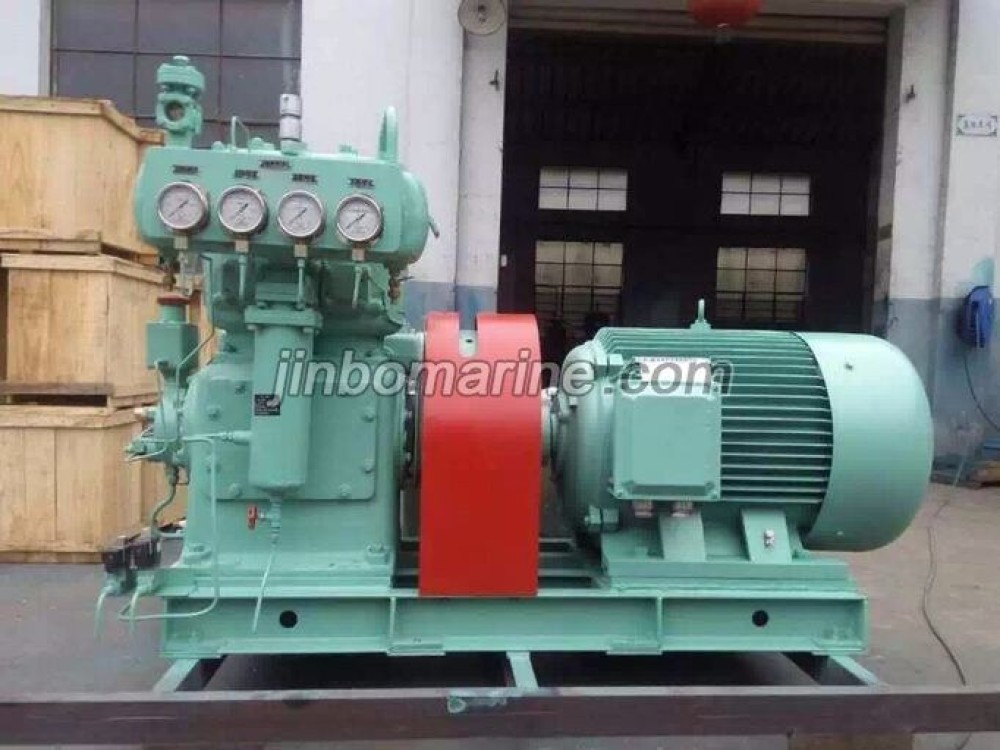

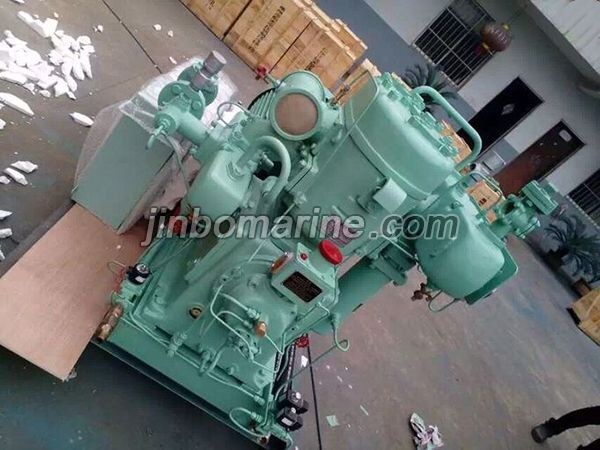

HC-265A Medium Pressure Water Cooled Marine Air Compressor
- Category:Medium Pressure Water Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China HC-265A Medium Pressure Water Cooled Marine Air Compressor:
Model: HC-265A
Rated pressure: 3.0Mpa
Cooling way: water cooling
Displacement capacity: 137.0M3/h,170.0M3/h,190.0M3/h
Supply the pressure air for start M/E and Generators.
Specification
| Model | Type | Displacement capacity | Specified Pressure | Rotating Speed | Motor Power | Weight | Overrall Size (L*W*H) |
| m3/h | Mpa | r/min | KW | Kg | mm | ||
| HC-265A | Vertical type water cooled two stage compression piston type | 137 | 3.0 | 750 | 37 | 1400 | 1870*1000*1180 |
| 170 | 900 | 45 | |||||
| 190 | 960 | 45 | |||||
| Suitable for 1.0 -3.0 cube air bottle | |||||||
