Heavy Oil Marine Fuel Homogeniser

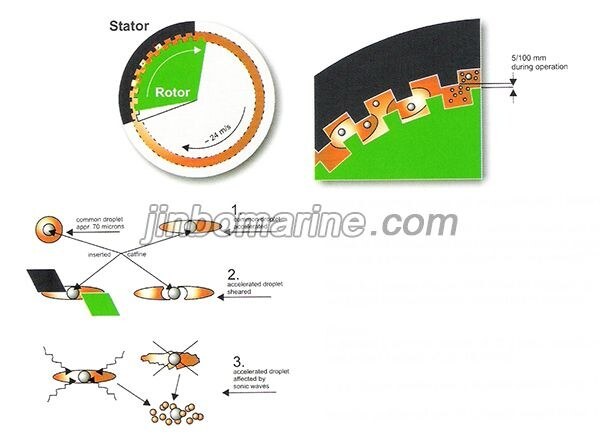

As found in several independent heavy fuel analysis, the structure of common heavy fuels consist of an average droplet particle size of abt. 70 μ. But more than 90% of the fuel are showing droplets particles larger than 20 μ. When a common droplet will be accelerated it alters to a stretched droplet. This accelerated and stretched droplet will be affected by additional shearing forces, it will be divided into numerous smaller droplets. Each fuel particle will be affected this way several times during MF Homogeniser passage. When this treated droplet will further be affected by sonic frequencies it swings up and will further be divided with each MF passage.

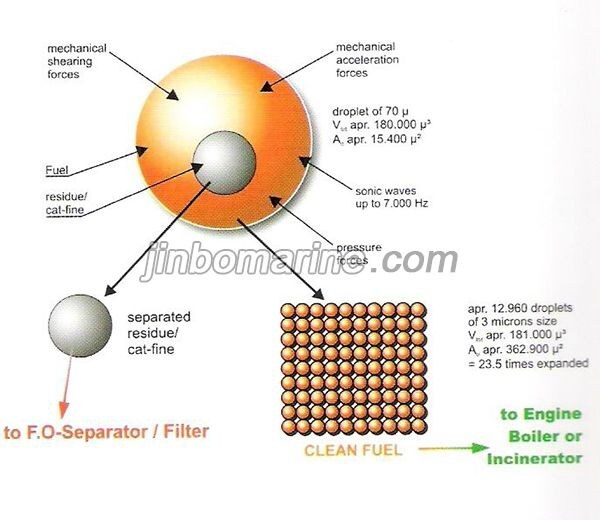

In general a common droplet of 70 μ has a specific volume of apr. 180.000 μ3 with a total surface of apr. 15.400 μ2. A 3μ droplet divided has a specific volume of apr. 14 μ3 with a total surface of 28 μ2. Now the partition of one 70 μ droplet results in apr. 12.960 droplets of 3 μ size.

Drastically unloaded filters and purifiers
Less visible exhaust emissions (soot / particles / dust)
Increased power output of engines and boilers
Remarkable reduction of abrasive wear and tear on all mechanical parts

Prolonged stability times on mechanical parts

Without mechanical seals, no need maintenance
Bushes by special material with long life and smooth-running
When over load, slippage between inner and outer rotor will protect motor
All the fuel treating parts are closed in body, leakage problem is totally solved
Endure high temperature to 150 C. and 3000 p.m., continue working

Type	MF30	MF60	MF90	MF250
Displacement，m3/h	3.0	6.0	9.0	25.0
Power,KW	3.0	7.5	7.5	22.0
Voltage,V	380/440
Speed,r/min	2880/3490	2900/3520	2930/3540	2940/3550
Pressure,Mpa	＜1.0	＜1.2	＜1.2	＜1.6
Temperature,℃	＜160
Kinematic viscosity，cSt/50℃	＜700
Pipe diameter,mm	34	50	50	70
Motor insulation grade	IP54
Weight	95	130	130	370

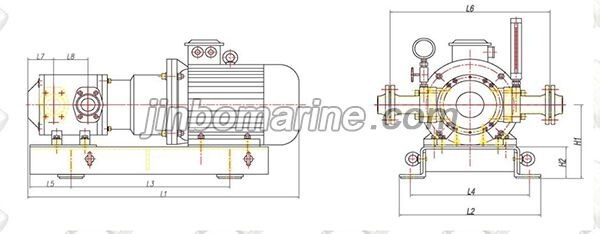

L1	724	820	967	1189
L2	312	428	468	520
L3	405	480	550	650
L4	262	360	400	460
L5	92.5	124	124	175
L6	396	484	484	565
L7	75.5	76	76	106
L8	104	108	108	170
H1	188	242	270	305
H2	88	110	110	125
