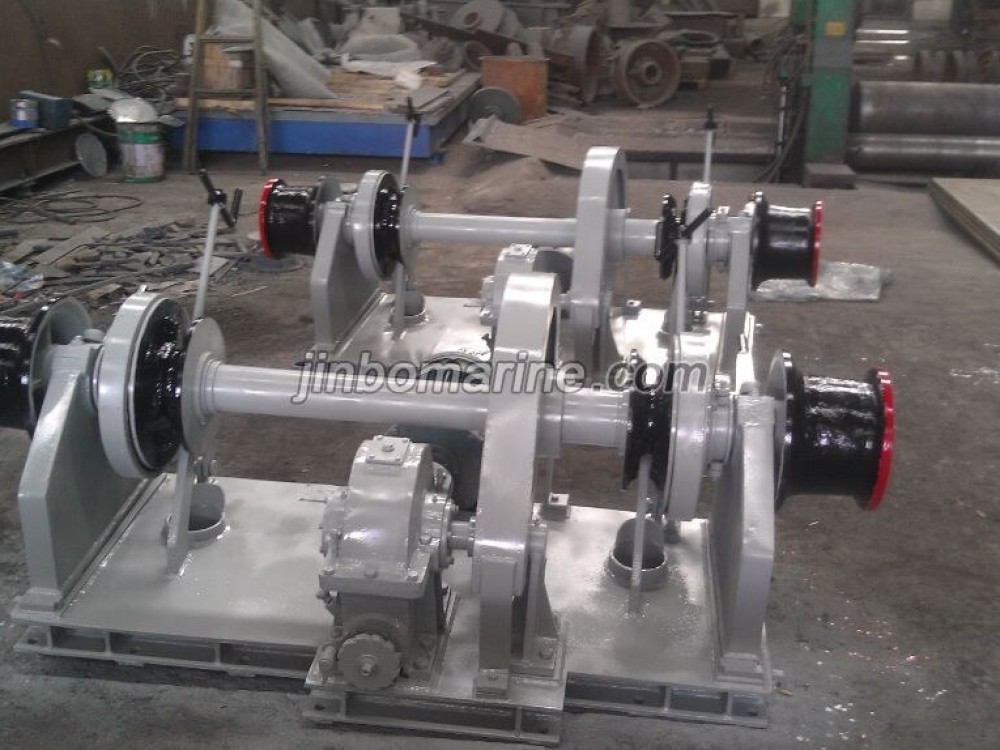

19mm Double Gypsy Electric Anchor Windlass With BV Certificate

Main Parameter

Anchor Chain diameter: 19mm(AM2)

Gypay diameter: 304mm

Working load: 15.3kn

Overload: 23.0kn

Support load: 126kn

Nominal speed: 9m/min

Max anchor weight: 660kg

Max anchoring deepth: 82.5m

Warping head load: 10kn

Speed: 9m/min

Working rope diameter: 30mm

Transmission ratio: 96.3

Transmission efficiency: 0.62

Motor model: JZ2-H33-4/12

Speed: 1450/500 rpm

power: 8.5/3.5kw

Voltage: 380v/50hz

Working: 30/10 min
