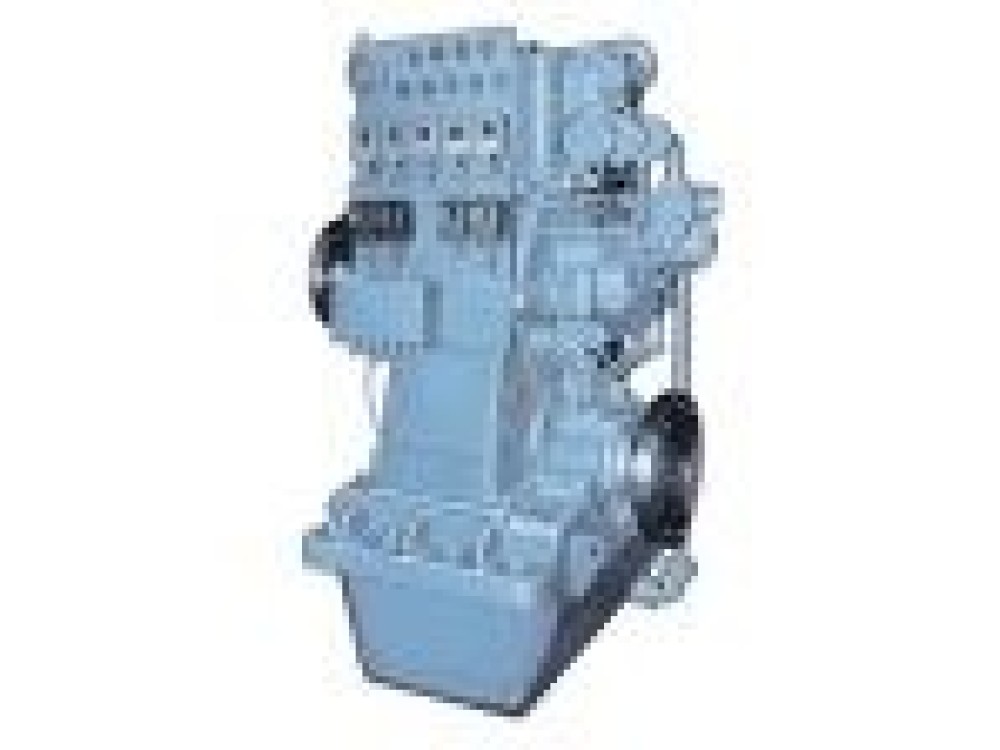

High speed marine gearbox

The GCS,GCH series high speed marine gearboxoffers single stage reduction,with case hardened and ground helical spur wheel. The GCS series gearbox comes with vertically offset shaft,while the GCH series marine gearbox has horizontal offset shaft design.

The GCS,GCH series high speed marine gearbox with center-to-center spacing range from450mmto560mmis fitted with antifriction bearings. While the gearbox with600mmto1000mmcenter-to-center spacing uses plain bearings.

All gearbox can be equipped with a power take off(PTO) for which special superposition gears have been developed.

In order to quote for you soon,please give information below:

engine maker,engine type, engine speed,input speed of the gearbox ,output speed of the gearbox ,rotational direction of the engine(facing flywheel),rotational direction of the propeller (facing flywheel),cooling water temperature,classfifcation society,mode of acceptance,shipyard.
