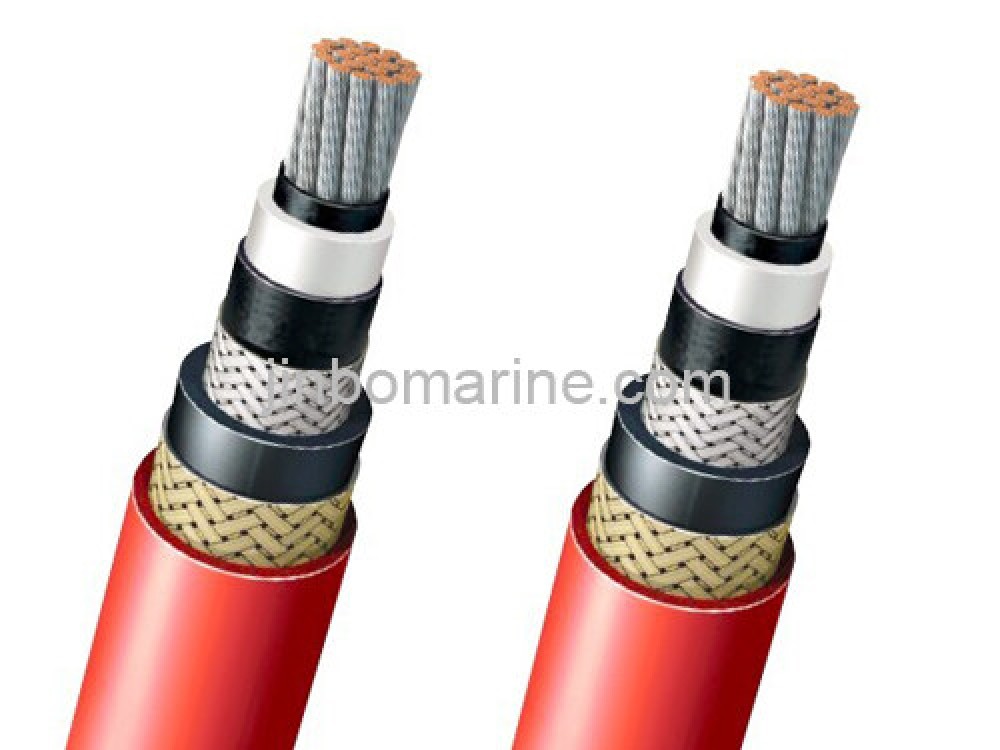

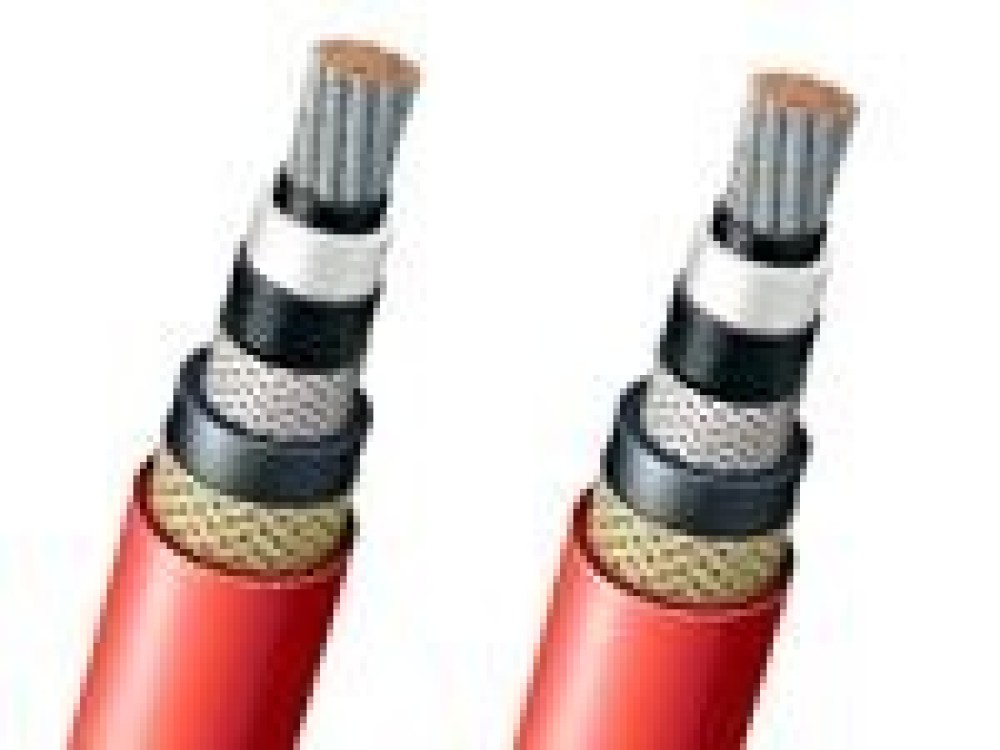

High Voltage Offshore Power Cable(5KV/8KV15KV)

  • Category:IEEE Std 45/1580 Cable
  • Material:Tinned Copper/Semi-conducting compound/EP Rubber/Neoprene/Tinned Copper Braided/Neoprene
  • Standards:IEEE 1580-2001 IEEE 45-1998
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Cable Type High Voltage Cable

5KV- SEN(BS) SEL(BS) TEN(BS) TEL(BS)

8KV- SEN(BS) SEL(BS) TEN(BS) TEL(BS)

15KV- SEN(BS) SEL(BS) TEN(BS) TEL(BS)

Cable Construction

Classification

Code

Construction details

Conductor

Annealed Stranded Copper Wire

Cable Type

S

Single Power Cable

Conductor Screen

Semi-conducting compoud

Insulation

E

EP Rubber

Insulation Screen

Semi-conducting Compound

Or

Braid of tinned annealed copper wire

Jacket

N

Flame Retardant Thermosetting Neoprene

Armor(Optional)

B

Bronze

T

Tinned Copper Wire

Outer Sheath(Optional)

S

Same as Jacket

Standards

IEEE 1560(2001) IEC 45(1998)

ICEA S -68-516

UL 1072(2001)

UL 1309

IEEE 1202(1991)

IEC 60332-3 Category A

CSA C 22.2 NO.38(at -40℃)

IEC 60332-3 Category A

Cores & Size

Cores: 1 3

Size (AWG or MCM): 8 6 5 4 2 1 1/0 2/0 3/0 4/0 262 313 373 444 535 646 771 1111

Application:

The cable is fixed installation for signal, voltage up to 600V, apply for commercial marine, shipping building, MODU’S and Platform.

Advantage of IEEE 1580 Cable

Flame retardant

Fire-resistant (FS Type)

Resistance to oil, abrasion, petrochemical fluid, moisture and sunlight

Excellent flexibility
