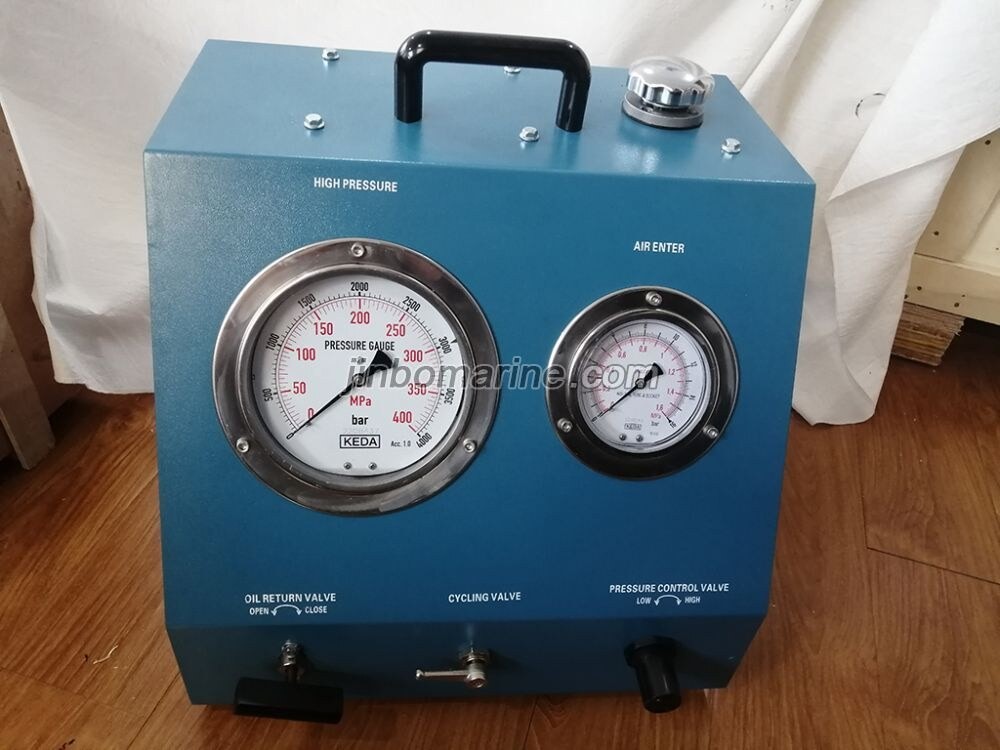

HPU-350 Air Driven High Pressure Hydraulic Pump
- Category:High Pressure Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
HPU-350 Air Driven High Pressure Hydraulic Pump is a new type of hydraulic stretching and pressing equipment. It transforms the lower air pressure into pressure oil and becomes an ideal power source.
FYB series hydraulic booster pump has the advantages of high output pressure, simple operation, safe and reliable, easy to carry and so on. It can be widely used in large and medium-sized mechanical screw fastening, large transmission parts and keyless matching of structural parts in metallurgical mining, petrochemical industry, shipbuilding industry, locomotive and vehicle manufacturing industry. It is an ideal tool for assembling and matching various large and medium-sized machines.

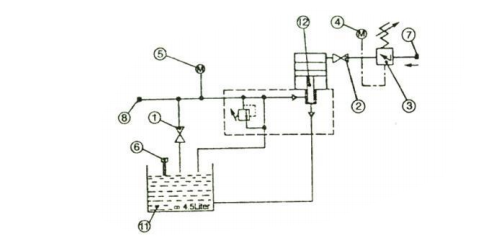

System:
Technical data:
| Model | HPU-350 |
| Weight | 32 KG (net weight |
| Size | 490*430*480 mm |
| Output oil pressure | Maximum 350MPa (input pressure 0.7MPa) |
| Output oil pressure | Maximum 300MPa (input pressure 0.6MPa) |
| Pump working speed |
About 4000 cydles per minute, input pressure 0.7MPa |
| Tank capacity | About 8L |
| Maxi flow (At no pressure) |
About 0.35m3 per minute, input pressure 0.7MPa |
