IMPA 591212 TD-400E replace Rustibus 1200 Scaling Machines
- Category:Marine Tools
- Standards:IMPA Standard
- IMPA Code:591212
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Description:

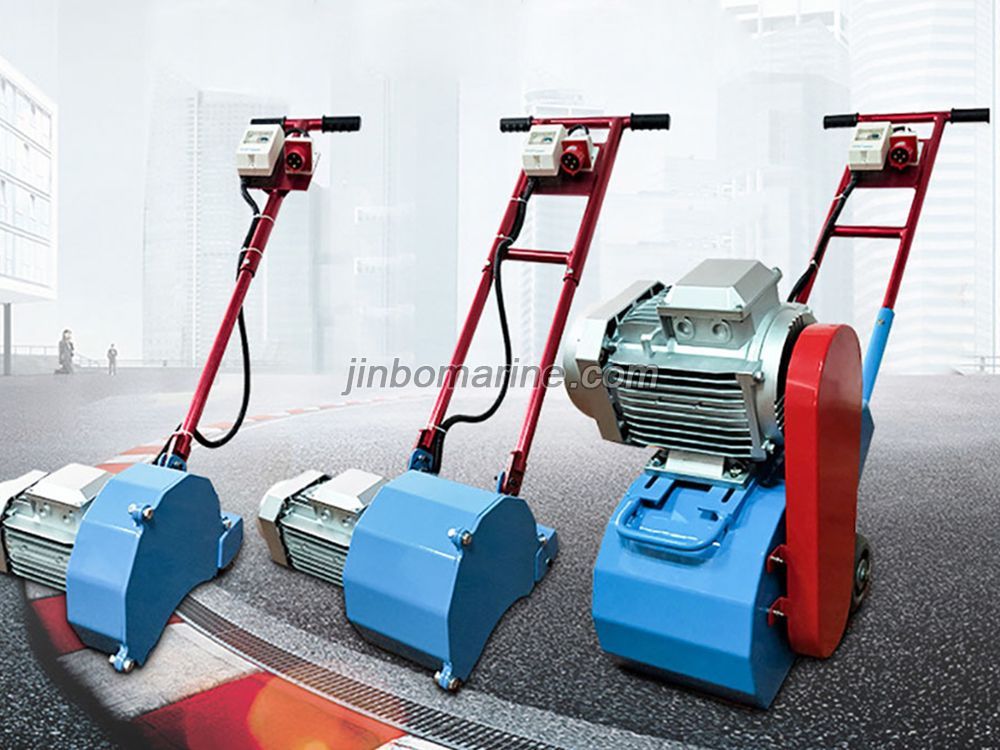

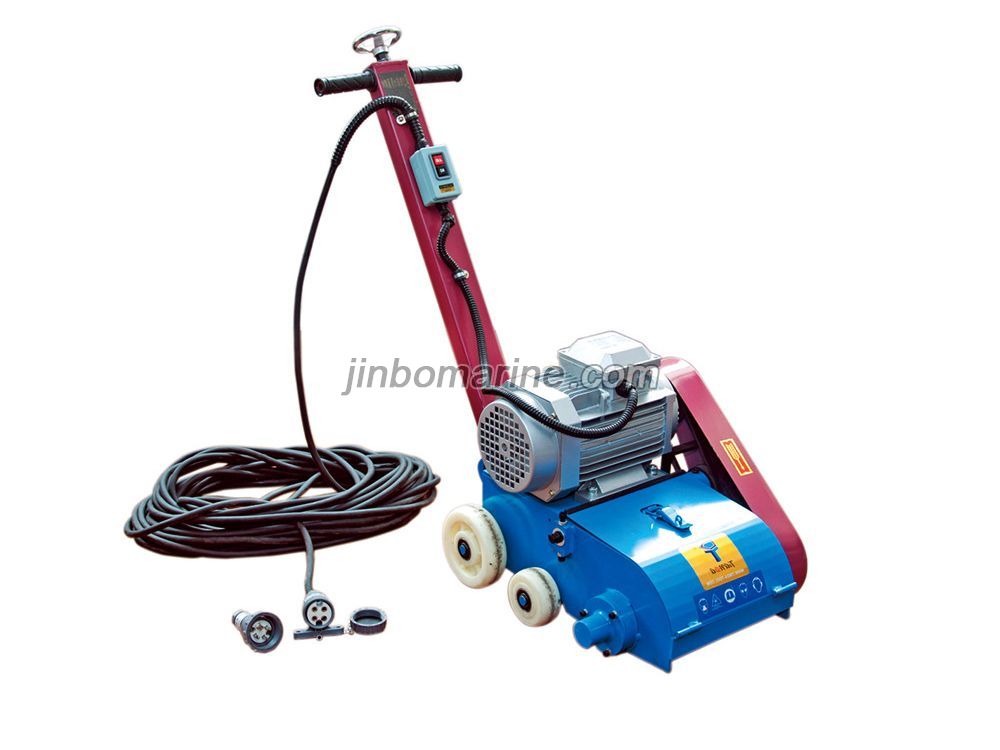

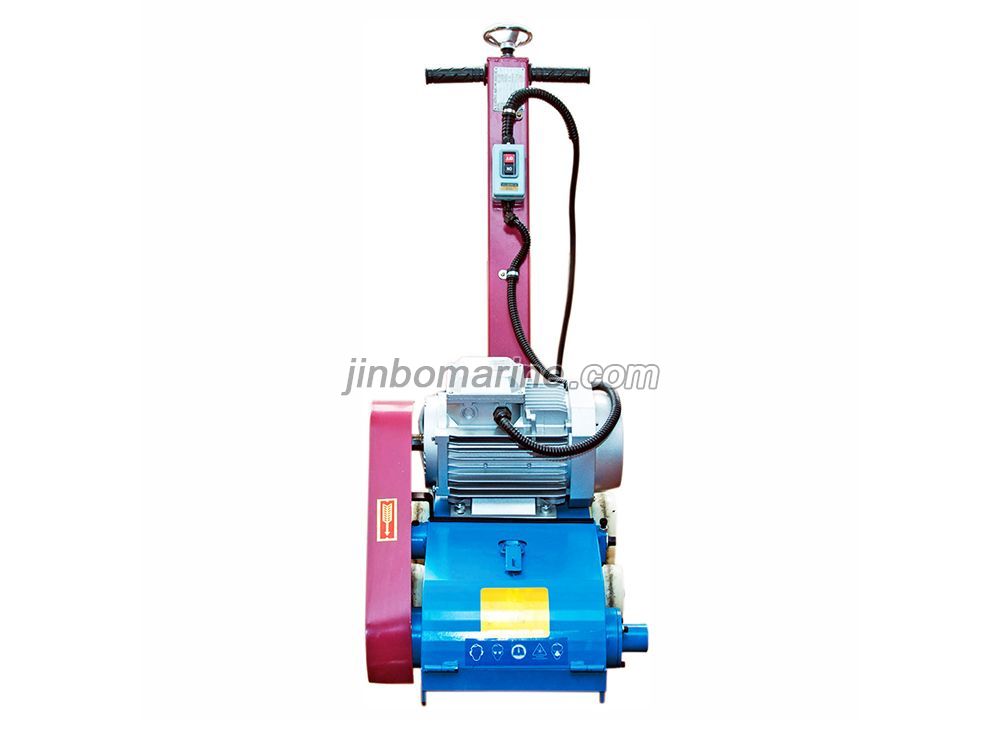

TD-400E,TD-1200E and TD-2000E can replace IMPA591210, IMPA591211, IMPA591212, Rustibus 1200 Series. This series of products provide a more ideal model for surface pretreatment, which can not only ensure a good surface treatment quality, but also effectively reduce the additional damage of the working face. It is the first choice for professional construction such as decontamination, coating, old paint, rust, etc. of large-area metal planes such as ship deck, tank top, offshore drilling platform, etc.
Product features:
It can be operated by a single person independently and is easy to use.
It adopts high-performance motor and famous brand electrical components, with good electrical safety.
It has overheat, overload automatic power-off and special undervoltage protection function of 380V / 440V model.
One time integral chain drum design reduces maintenance time and cost.
Built in vacuum design can meet higher environmental protection requirements.
Customers can choose matching carbon steel wire brush and stainless steel wire brush for surface fine treatment.

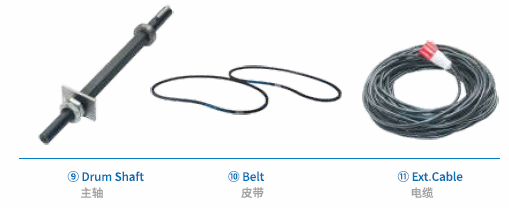

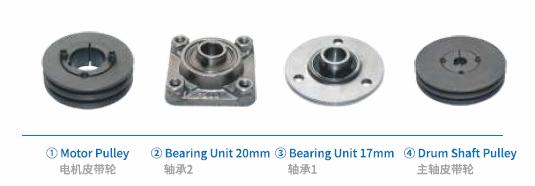

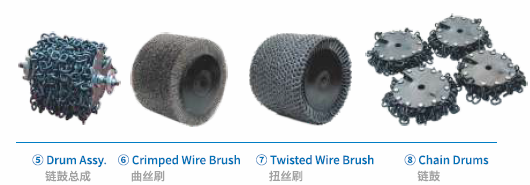

Spare parts:
Technical data:
Model | TD-1200E | |||||
IMPA Code | 591210 | 591211 | 591212 | |||
Working Track | 1200mm(4 3/4") | |||||
Capacity | Approx. 18m2(194ft2) | |||||
Surface Result | Up to ST3+++(SSPC-SP11+++) | |||||
Voltage | AC110V | AC220-240V | AC380-420V | AC440-480V | ||
Phase/Connection Way | Single | Three/Δ | Three/Y | |||
Rated Current | 11.3Amp | 9.4Amp | 6.4Amp | 3.7Amp | ||
Motor Power | 1.5KW | 1.5KW | 1.5KW | 1.75KW | 1.5KW | 1.75KW |
Power Frequency | 60Hz | 50/60Hz | 50Hz | 60Hz | 50Hz | 60Hz |
Speed(Free Load) | 1730rpm | 1440rpm | 1400rpm | 1700rpm | 1400rpm | 1700rpm |
Vacuum Port Outlet | O.D.32mm(1 1/4") | |||||
Outline Dimensions | L*H*W=1150*950*460mm(45inch*37 1/2inch*18inch) | |||||
Weight | 45Kgs(99Lbs) |
