Inject Head Type A CB/T3778-1999

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

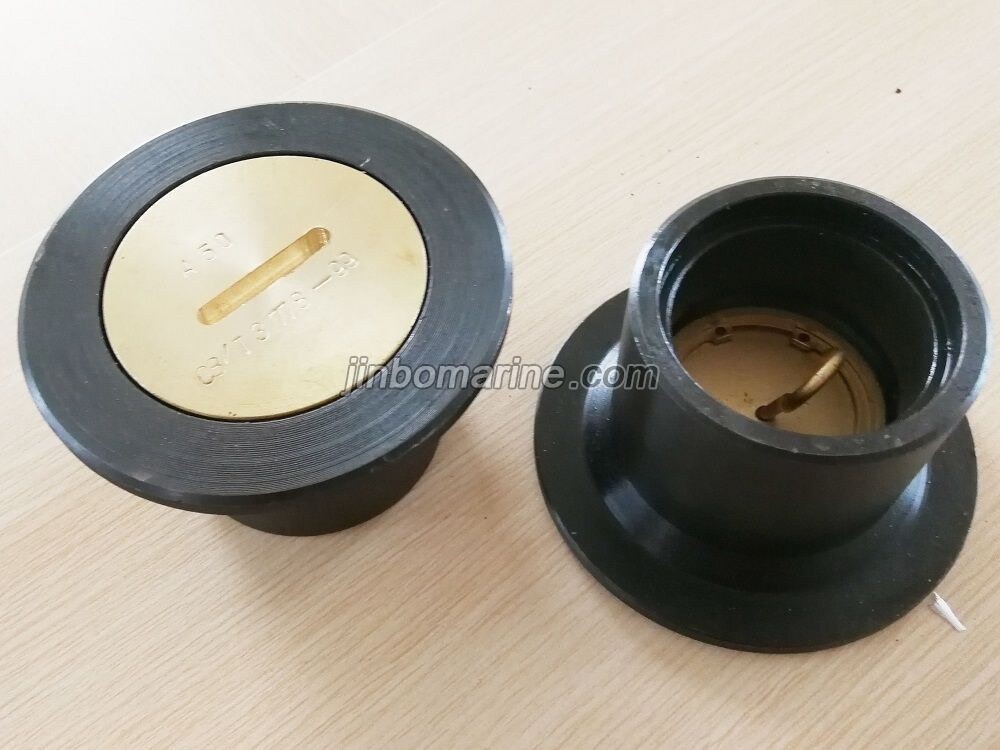

China Inject Head Type A CB/T3778-1999:

Inject Head also can be called as brass plug, sounding head, sounding pipe head. There are type A, type B and Type C. Type A is the inject head for steel deck, Type B is the inject head for wood deck, Type C is the lift inject head.

The inject head must pass the seal test with the water pressure 0.11Mpa, and last for 5minutes.

Standard: CB/T3778-1999, JIS F3002

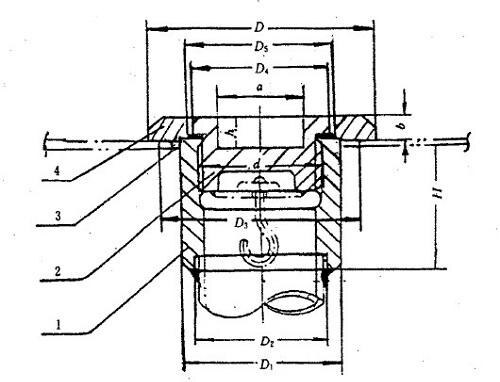

Material:

1-Body: Carbon Steel

2-Cover: Brass

3-Gasket: NBR

4-Welded Plate: WCB

Main Size List(mm):

DN H D1 D2 D3 D4 a B h d D D5 b Weight(kgs)
40 60 64 50 70 57 34 6 10 M45*3 90 59 6 0.96
50 65 76 62 82 76 34 6 10 M60*3 113 78 6 1.40
65 70 96 82 102 92 34 6 10 M76*3 125 94 6 1.82
80 75 109 93 115 106 55 10 14 M90*3 145 108 10 2.81
100 80 134 118 140 126 55 10 14 M115*3 170 128 10 4.62
150 100 188 172 194 178 55 10 14 M165*3 210 180 10 9.58
