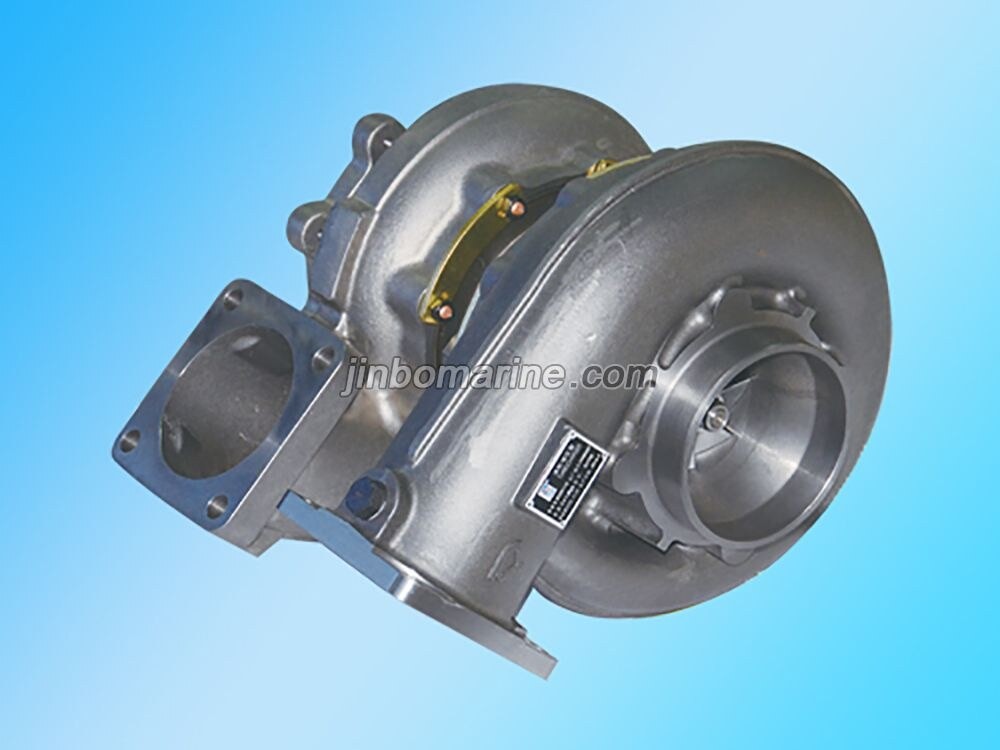

SJ170 Series Marine Turbocharger
- Category:Marine Turbochargers
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China SJ170 Series Marine Turbocharger:
With compact and solid structure, SJ170 series is developed especially for single unit output power
From 600 kw to 1200 kw. It can be widely used in various applications of diesel and gas engines whose pressure ratio is less than 3.6 after several years of optimization.
Product features
1. Strong structure and environmental adaptability.
2. Various compressor and turbine proposals can meet the need of various matching requirements.
3. High precision and accurate manufacturing tolerances ensure high reliability of turbocharges.
4. Water-cooled central housing can be selected for higher exhaust temperature requirements, it can be used for gas engine.
5. Wide flow compressor can meet various requirements of engine loading performance.
2. Various compressor and turbine proposals can meet the need of various matching requirements.
3. High precision and accurate manufacturing tolerances ensure high reliability of turbocharges.
4. Water-cooled central housing can be selected for higher exhaust temperature requirements, it can be used for gas engine.
5. Wide flow compressor can meet various requirements of engine loading performance.
SJ170 Series Marine Turbocharger Technical Specifications
Turbo models | SJ170 | SJ175 | |
Rate speed | r/min | 57000 | 54000 |
Max speed | r/min | 60000 | 58000 |
Pressure ratio | 3.6 | 3.6 | |
Air flow | kg/s | 0.4~1.7 | 0.4~2.2 |
Turbine inlet Temperature | ℃ | 650 | |
Applied engine | Diesel engine,Gas engine | ||
Displacement | L | 25~40 | 25~45 |
Engine power | KW | 600~860 | 800~1200 |
Application | Marine,Generator,Engineering machinery |
