Jaw & Jaw Turnbuckles HG-228, SS306 OR SS316

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

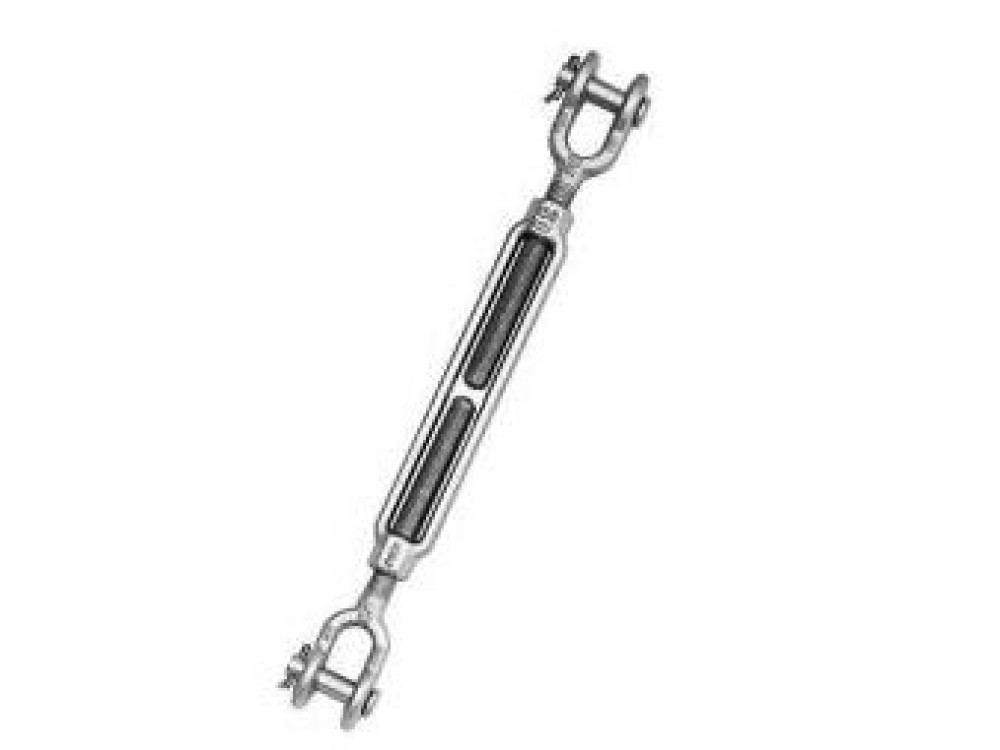

China Jaw & Jaw Turnbuckles HG-228, SS306 OR SS316:

THREAD
D1A.&
TAKE UP (in.)
 WORKING
LOAD
LIMIT (lbs)* 		WEIGHT
each
(kg) 		DIMENSIONS(in.)
A B E
CLOSED 		G J
OPEN 		K
CLOSED 		M
OPEN 		N
closed 		BB
1/4x4 500 0.37 0.25 0.45 1.66 0.64 11.19 7.19 12.18 8.18 4.07
5/16x4-1/2 800 0.56 0.31 0.5 2.02 0.87 13.07 8.57 14.12 9.62 4.58
3/8x6 1200 0.85 0.38 0.53 2.11 0.85 16.25 10.25 17.5 11.5 6.1
1/2x6 2200 1.82 0.5 0.64 3.22 1.07 18.65 12.65 20.14 14.14 6.03
1/2x9 2200 2.29 0.5 0.64 3.2 1.07 29.94 15.94 26.43 17.43 9.36
1/2x12 2200 2.71 0.5 0.64 3.2 1.07 30.94 18.94 32.43 20.43 12.36
5/8x6 3500 3.21 0.63 0.79 3.9 1.32 19.74 13.74 21.82 15.82 6.03
5/8x9 3500 3.95 0.63 0.79 3.89 1.32 26.08 17.08 28.16 19.16 9.39
5/8x12 3500 4.58 0.63 0.79 3.89 1.32 32.08 20.08 34.16 22.16 12.39
3/4x6 5200 4.8 0.75 0.97 4.71 1.52 21.09 15.09 23.68 17.68 6.13
3/4x9 5200 5.85 0.75 0.97 4.68 1.52 27.49 18.49 30.08 21.08 9.59
3/4x12 5200 6.72 0.75 0.97 4.68 1.52 33.49 21.49 36.08 24.08 12.59
3/4x18 5200 8.45 0.75 0.97 4.71 1.52 45.49 27.49 48.08 30.08 18.53
7/8x12 7200 9.37 0.88 1.16 5.5 1.77 34.65 22.65 37.62 25.62 12.16
7/8x18 7200 11.8 0.88 1.16 5.5 1.77 47.12 29.12 50.09 32.09 18.63
1x6 10000 10.4 1 1.34 6.09 2.05 23.82 17.82 27.18 21.18 6.18
1x12 10000 13.8 1 1.34 6.09 2.05 35.82 23.82 39.18 27.18 12.18
1x18 10000 17.1 1 1.34 6.09 2.05 47.82 29.82 51.18 33.18 18.18
1 x24 10000 21 1 1.34 6.06 2.05 60.42 36.42 63.78 39.78 24.84
1-1/4x12 15200 21.9 1.25 1.84 8.09 2.82 39.37 27.37 43.58 31.58 12.06
1-1/4x18 15200 25.9 1.25 1.84 8.09 2.82 51.37 33.37 55.58 37.58 18.06
1-1/4x24 15200 29.8 1.25 1.84 8.09 2.82 63.93 39.93 68.14 44.14 24.62
1-1/2x12 21400 32.6 1.5 2.06 8.93 2.81 40.76 28.76 45.68 33.68 12.32
1-1/2x18 21400 38 1.5 2.06 8.93 2.81 52.76 34.76 57.68 39.68 18.32
1-1/2x24 21400 43.5 1.5 2.06 8.93 2.81 65.38 41.38 70.3 46.3 24.94
1-3/4x18 28000 53.5 1.75 2.6 9.36 3.35 53.35 35.35 59.16 41.16 18.37
1 -3/4 x 24 28000 61.1 1.75 2.6 9.36 3.35 65.35 41.35 71.16 47.16 24.37
2x24 37000 96.3 2 2.62 11.8 3.74 69.64 45.64 76.72 52.72 24.48
2-1/2x24 60000 167 2.5 3.06 13.26 4.44 72.97 48.97 82.18 58.18 24.6
2-3/4 x 24 75000 199 2.75 3.69 14.92 4.19 74.75 50.75 85.5 61.5 24.65
