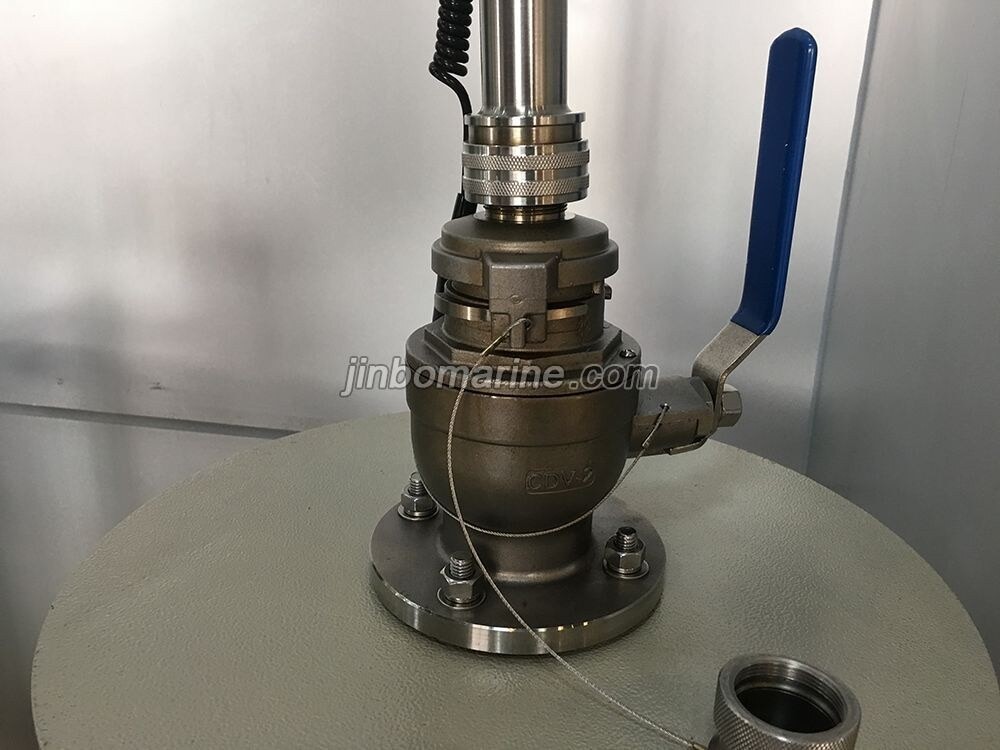

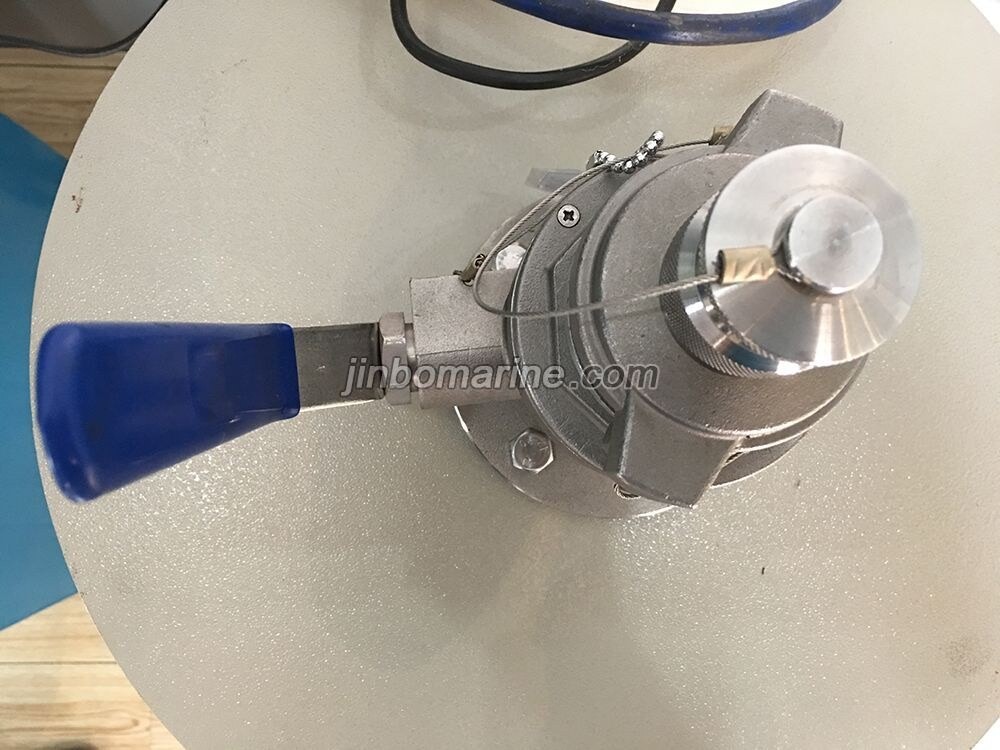

JBF Type Deck Valve
- Category:Sensor
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Delivery Time:About 7 to 10 days
- Packing Details:Carton packaging.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
It is a connection device for tanker and oil and chemical ship,which can quick connect to the measuring equipments,like oil water interface detector,hermetic sampler,oil tanker pressure gauging device and sludge tape etc.Also can be used in other industrial places with similar requirements.
Main Technical Specification:
Nominal diameter:DN50
Nominal pressure:0.20MPa
Material of valve body:SUS304,SUS316
Material of valve seat:PTFE
Applicable medium:oil,seawater and chemicals
Quick connection:1",2" quick connector
Connection flange:CBM1012-81 , PN 0.5

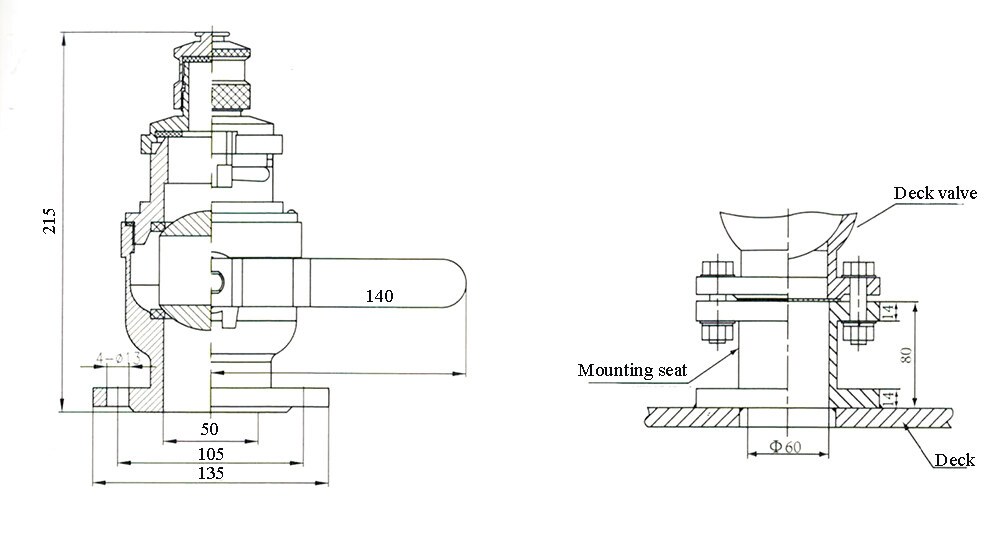

Overall Dimension:
