JIS F2005-1975 Deck Mounted Marine Mooring Closed Chock
- Category:Marine Chock
- Material:Cast Steel
- Standards:JIS F2005-1975
- Certificate:CCS , BV, ABS , mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F2005 1975 Deck Mounted Marine Mooring Closed Chock.pdf
Details
China JIS F2005-1975 Deck Mounted Marine Mooring Closed Chock:
The closed chock can guide the rope from the inboard to the outboard at certain direction, change the trend of rope and limit its place.It can reduce the abrasion between rope with gunwale, avoid increasing the stress due to a sharp bend.Widelyused for small boats,ships,tug,cargo vessel,tankers etc.

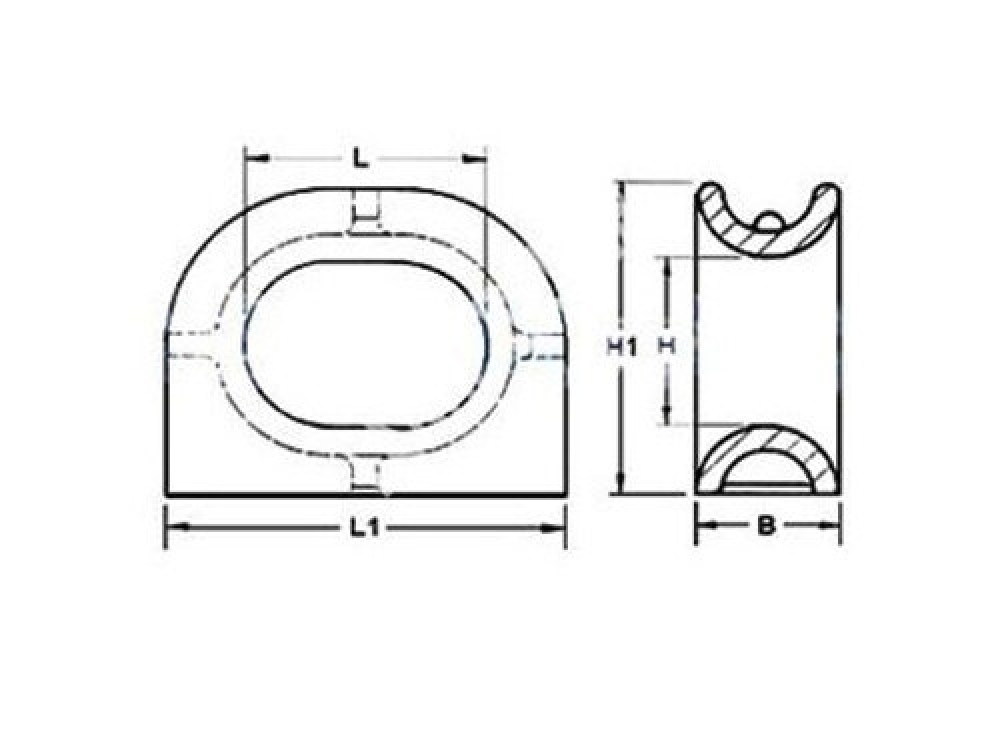

Size Chart:
|
JIS F2005-1975 Deck Mounted Closed Chock |
||||||||
|
Product No. |
Dimension(mm) |
Mass(kgs) |
Dia. Of Rope Applied |
|||||
|
L |
L1 |
B |
H |
H1 |
Wire |
Hemp |
||
|
DMJ-001 |
100 |
170 |
60 |
76 |
141 |
3.7 |
14 |
24 |
|
DMJ-002 |
150 |
250 |
90 |
110 |
205 |
10.5 |
16 |
30 |
|
DMJ-003 |
200 |
340 |
120 |
150 |
280 |
24 |
18 |
40 |
|
DMJ-004 |
250 |
434 |
160 |
200 |
372 |
48 |
20 |
50 |
|
DMJ-005 |
300 |
528 |
200 |
250 |
464 |
82 |
22 |
60 |
|
DMJ-006 |
350 |
600 |
220 |
250 |
485 |
103 |
24 |
70 |
|
DMJ-007 |
400 |
672 |
240 |
250 |
506 |
136 |
26 |
80 |
|
DMJ-008 |
450 |
746 |
260 |
250 |
528 |
184 |
30 |
85 |
|
DMJ-009 |
500 |
820 |
280 |
250 |
550 |
232 |
36 |
90 |
