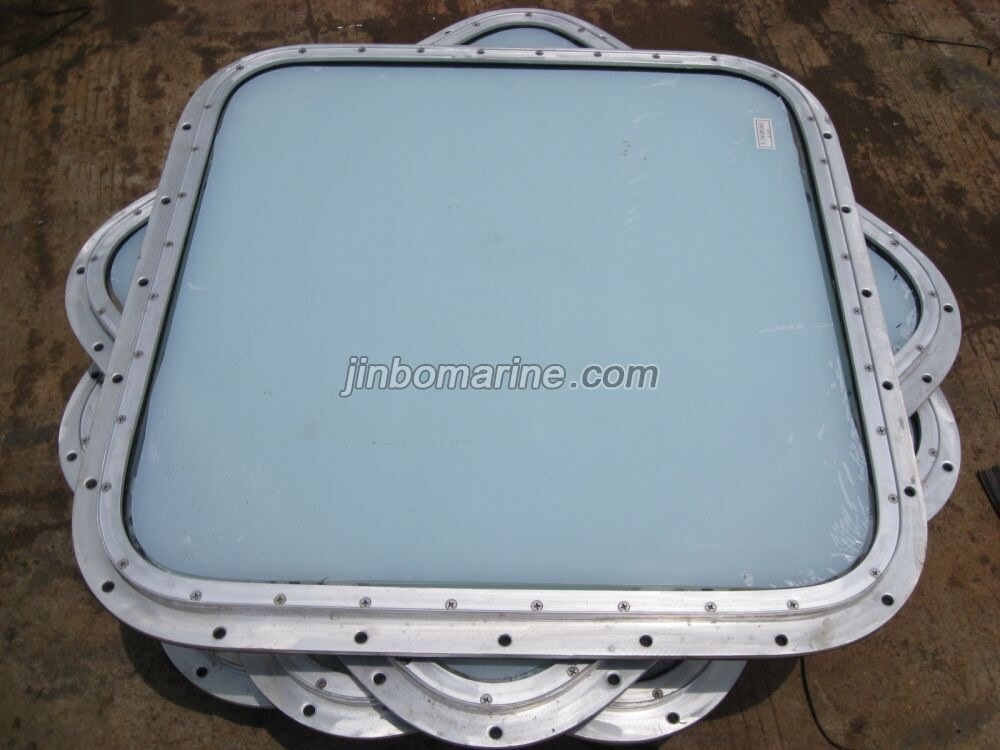

Marine Aluminum Fixed Rectangular Window for Wheelhouse
- Category:Marine Window
- Material:Aluminum
- Standards:CB/T3226-1995
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

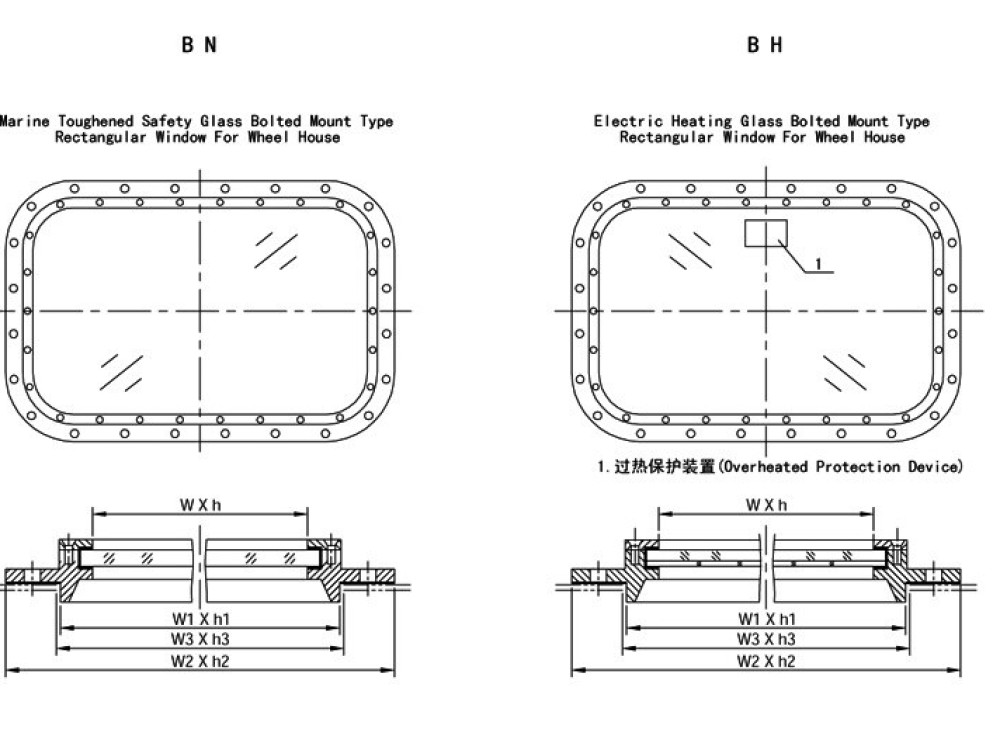

Marine Aluminum Fixed Rectangular Window for Wheelhouse Drawing
China Marine Aluminum Fixed Rectangular Window for Wheelhouse:
Standard: CB/T3226-1995
Marine Aluminum Fixed Rectangular Window is installed in the wheel houses, bridges, enclosed spaces which is used for observation and operation of various types of ships and marine structures.
The shape can be rectangular, parallelogram or trapezoidal .
1.Types of non-opening rectangular windows for wheel house
|
Type |
Window frame type |
Name |
Material of window frame |
|
A |
BH |
Bolted fixed rectangular window with an electric heated glass pane |
Aluminum Alloy |
|
BN |
Bolted fixed rectangular window with a toughened glass pane |
||
|
B |
WH |
Welded fixed rectangular window with an electric heated glass pane |
Carbon Steel |
|
WN |
Welded fixed rectangular window with a toughened glass pane |
2.Parameters of fixed rectangular windows for wheel house
|
Type |
Nominal Size |
Frame |
Size of opening |
Glass Thickness |
Weight (kgs) |
||||
|
WXH |
W1XH1 |
W2XH2 |
W3XH3 |
r |
BH |
BN |
BH |
BN |
|
|
A |
800X630 |
848X678 |
930X760 |
852x682 |
126 |
12 |
15 |
25.5 |
25.9 |
|
800X710 |
848X758 |
930X840 |
852x762 |
12 |
15 |
28.1 |
28.7 |
||
|
900X630 |
948X678 |
1030X760 |
952x682 |
12 |
17 |
28.2 |
30.0 |
||
|
900X710 |
948X758 |
1030X840 |
952x762 |
12 |
17 |
30.9 |
32.9 |
||
|
900X800 |
948X848 |
1030X930 |
952x852 |
12 |
17 |
33.9 |
36.1 |
||
|
1200X630 |
1248X378 |
1330X760 |
1252x682 |
15 |
20 |
41.6 |
44.0 |
||
|
1200X710 |
1248X758 |
1330X840 |
1252x762 |
15 |
20 |
45.9 |
48.6 |
||
|
1200X800 |
1248X848 |
1330X930 |
1252x852 |
15 |
20 |
50.6 |
53.6 |
||
|
1500X710 |
1548X758 |
1630X840 |
1552x762 |
15 |
20 |
56.1 |
59.4 |
||
|
1500X800 |
1548X848 |
1630X930 |
1552x852 |
15 |
20 |
61.2 |
64.9 |
||
|
1800X710 |
1848X758 |
1930X840 |
1852x762 |
15 |
20 |
66.3 |
70.3 |
||
|
1800X800 |
1848X848 |
1930X930 |
1852x852 |
15 |
20 |
72.4 |
76.8 |
||
|
1800X900 |
1848X948 |
1930X1030 |
1852x952 |
15 |
20 |
77.5 |
82.5 |
||
|
Type |
Nominal Size |
Frame |
Size of opening |
Glass Thickness |
Weight (kgs) |
||||
|
WXH |
W1XH1 |
W2XH2 |
W3XH3 |
r |
WH |
WN |
WH |
WN |
|
|
B |
800X630 |
848X678 |
930X760 |
852x682 |
126 |
12 |
15 |
41.3 |
41.8 |
|
800X710 |
848X758 |
930X840 |
852x762 |
12 |
15 |
44.2 |
44.8 |
||
|
900X630 |
948X678 |
1030X760 |
952x682 |
12 |
17 |
45.1 |
46.9 |
||
|
900X710 |
948X758 |
1030X840 |
952x762 |
12 |
17 |
48.5 |
50.5 |
||
|
900X800 |
948X848 |
1030X930 |
952x852 |
12 |
17 |
52.4 |
54.6 |
||
|
1200X630 |
1248X378 |
1330X760 |
1252x682 |
15 |
20 |
60.9 |
63.3 |
||
|
1200X710 |
1248X758 |
1330X840 |
1252x762 |
15 |
20 |
66.6 |
69.2 |
||
|
1200X800 |
1248X848 |
1330X930 |
1252x852 |
15 |
20 |
72.2 |
75.2 |
||
|
1500X710 |
1548X758 |
1630X840 |
1552x762 |
15 |
20 |
79.8 |
83.1 |
||
|
1500X800 |
1548X848 |
1630X930 |
1552x852 |
15 |
20 |
86.4 |
90.1 |
||
|
1800X710 |
1848X758 |
1930X840 |
1852x762 |
15 |
20 |
93.1 |
97.1 |
||
|
1800X800 |
1848X848 |
1930X930 |
1852x852 |
15 |
20 |
100.4 |
104.8 |
||
|
1800X900 |
1848X948 |
1930X1030 |
1852x952 |
15 |
20 |
108.6 |
113.6 |
||
*The size is in the list is just for reference, it is can be customerized according to the actual situation of the vessel.
3.Mounting of the heated glass pane for fixed rectangular window for wheel house should conform to the requirements of ISO3434, power loading and parameters necessary for the glass pane as below.
|
Electrical Supply |
Overheating protection device |
Minimum power loading w/dw2 |
||||
|
Current |
Voltage (V) |
Frequency (HZ) |
7 |
12 |
17 |
|
|
Code |
||||||
|
DC |
24 |
- |
G |
7G01 |
12G01 |
17G01 |
|
S |
7S01 |
12S01 |
17S01 |
|||
|
110 |
- |
G |
7G02 |
12G02 |
17G02 |
|
|
S |
7S02 |
12S02 |
17S02 |
|||
|
220 |
- |
G |
7G03 |
12G03 |
17G03 |
|
|
S |
7S03 |
12S03 |
17S03 |
|||
|
G---group regulator, S---single regulator |
||||||
