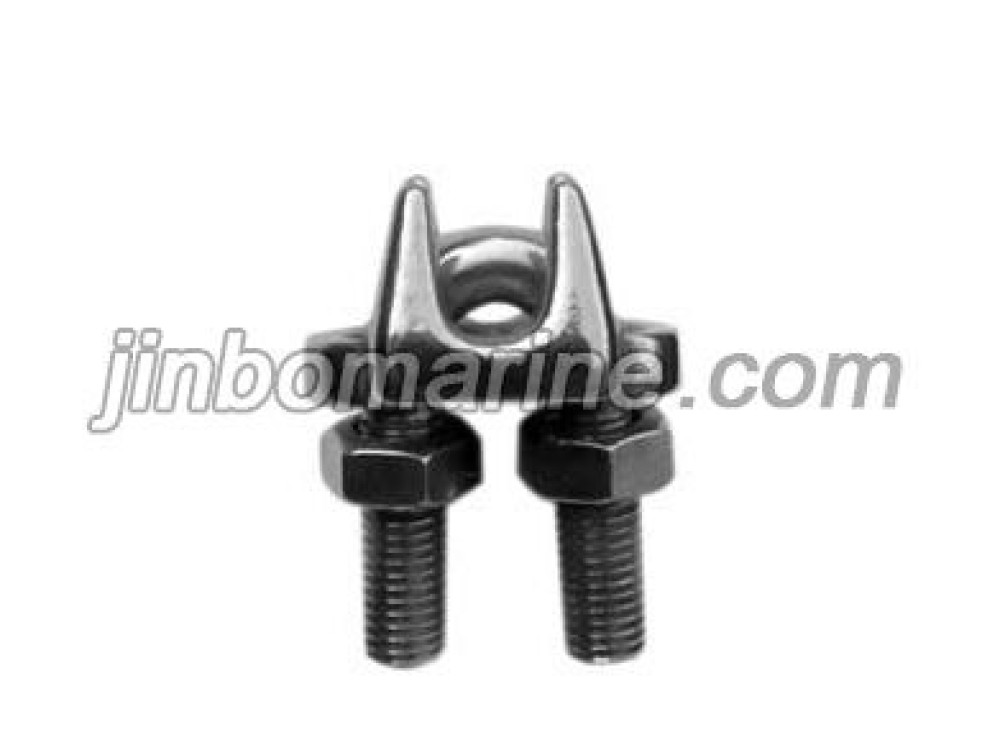

JIS Type Wire Rope Clips
- Category:Wire Rope Clip
- Material:Stainless steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

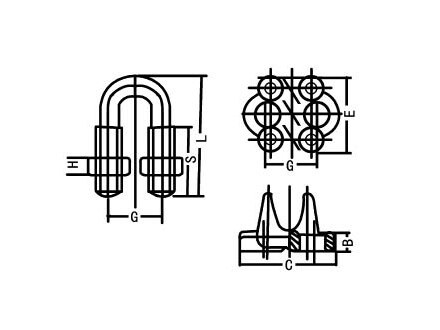

China JIS Type Wire Rope Clips:
|
SIZE mm |
B mm |
C mm |
E mm |
G mm |
H mm |
L mm |
S mm |
| 3 | 3.5 | 15 | 12 | 7 | 3 | 22 | |
| 4 | 3.5 | 17 | 13 | 8 | 3.5 | 24 | |
| 5 | 4 | 20 | 16 | 10 | 3.5 | 26 | 16 |
| 6 | 5 | 25 | 20 | 12 | 4 | 30 | 18 |
| 8 | 6 | 29 | 24 | 14 | 5 | 35 | 20 |
| 10 | 6 | 36 | 31 | 18 | 6.5 | 40 | 20 |
| 12 | 7 | 45 | 35 | 22 | 8 | 50 | 28 |
| 13 | 8 | 51 | 39 | 26 | 10 | 60 | 35 |
| 14 | 9 | 53 | 45 | 28 | 10 | 65 | 40 |
| 16 | 10 | 60 | 48 | 32 | 11 | 75 | 45 |
| 18 | 11 | 62 | 53 | 34 | 11 | 80 | 50 |
| 20-22 | 12 | 78 | 62 | 44 | 15 | 100 | 60 |
| 24-25 | 13 | 86 | 68 | 48 | 16 | 110 | 65 |
| 26-28 | 14 | 94 | 75 | 54 | 18 | 120 | 70 |
| 30-32 | 15 | 98 | 79 | 58 | 18 | 130 | 75 |
| 33-38 | 16 | 120 | 93 | 70 | 22 | 150 | 85 |
| 40-45 | 19 | 136 | 100 | 80 | 24 | 175 | 95 |
| 47-50 | 21 | 150 | 115 | 89 | 26 | 195 | 100 |
| 56-60 | 25 | 170 | 128 | 101 | 29 | 240 | 115 |
| 63-70 | 27 | 190 | 142 | 115 | 31 | 270 | 130 |
| 73-80 | 29 | 212 | 156 | 127 | 34 | 300 | 150 |
