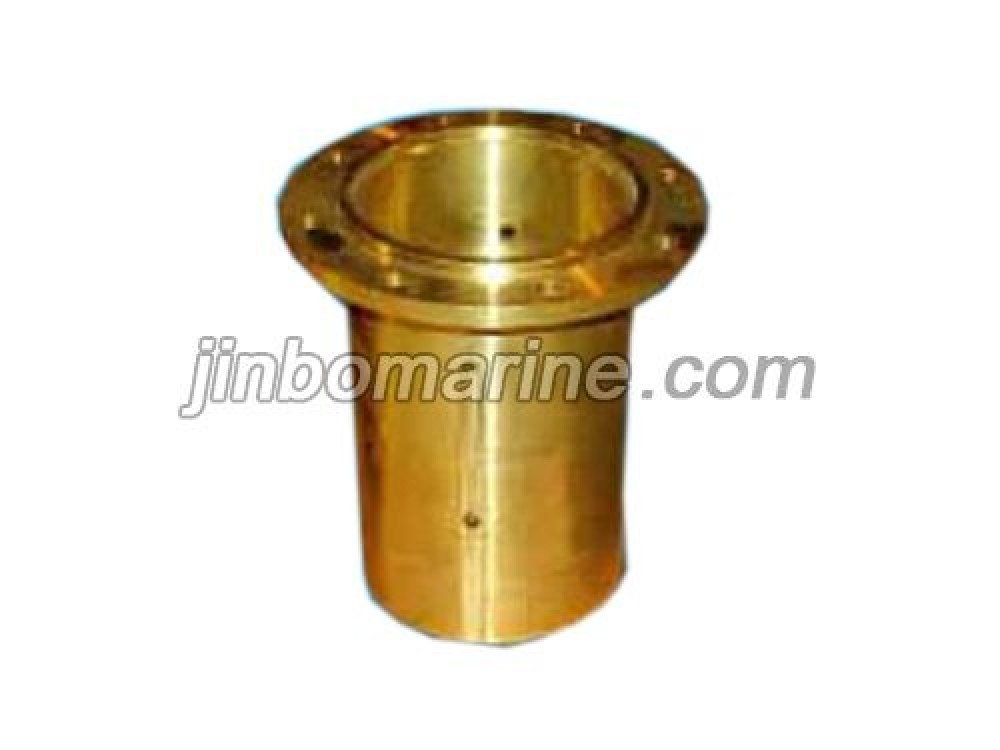

JQ/CS 39 Type Stern Tube Bearing

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Technical Specification

This type of bearings is suitable for inland water vessels whose stern bube working medium is oil and that do not have a large stern shaft.

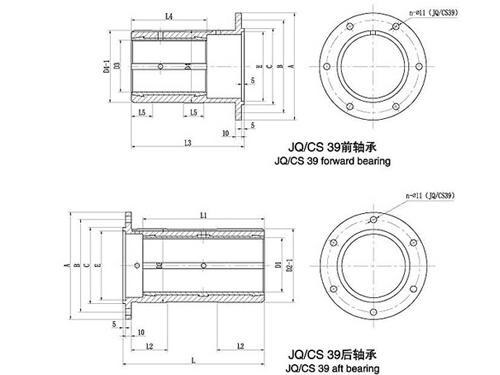

Model D1 D2 D3 D4 L L1 L2 L3 L4 L5 n Weight (kg)
Front Back
70JQ/CS39 80 118 78 116 220 185 50 175 110 30 6 7 10
80JQ/CS39 90 128 88 126 245 210 60 195 130 35 6 8.3 12
90JQ/CS39 100 138 98 136 275 240 70 215 150 40 8 10 15
100JQ/CS39 110 148 108 146 295 260 80 235 170 40 8 11.5 18
110JQ/CS39 120 158 118 156 315 280 90 245 180 45 8 13.7 21
120JQ/CS39 130 168 128 166 345 31 90 265 200 50 8 15 25
