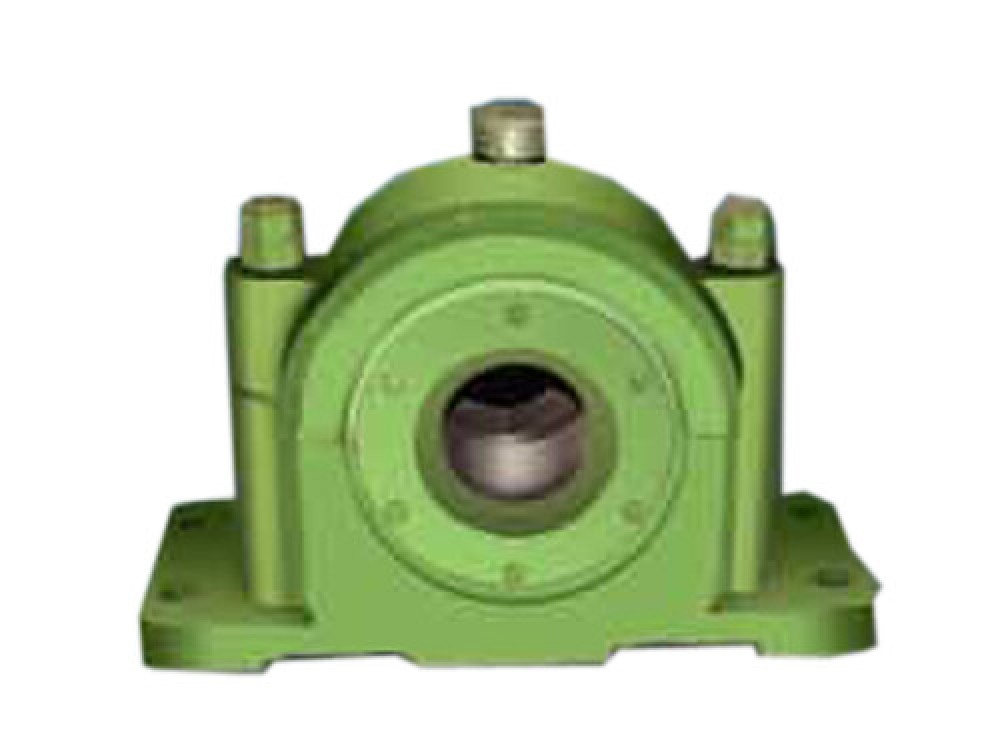

JT4175 Shafting Intermediate Bearing

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Technical Specification

It is suitable for vessel sailing on inland river

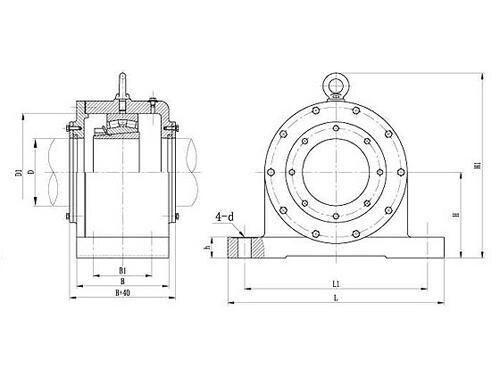

Bearing model D D1 L L1 B B1 H h d H1 Weight(kg)
3253122 110 180 386 326 170 110 150 35 20 330 30
3253123 115 200 406 346 180 120 160 35 20 345 35
3253125 125 210 430 360 190 120 165 40 26 360 43
3253127 135 225 446 376 200 130 175 40 26 380 53
3253128 140 240 476 396 210 130 180 45 26 400 66
3253130 150 250 486 406 220 140 190 45 32 415 80
3253132 160 280 516 436 220 140 205 50 32 445 95
3253134 170 290 540 450 240 150 210 50 38 460 112
3253136 180 310 560 470 240 150 220 55 38 485 130
3253140 200 340 590 500 250 160 240 55 38 530 150
3253144 220 360 640 530 270 160 260 60 44 570 175
3253148 240 400 680 570 290 180 280 60 44 610 200
3253152 260 420 720 600 300 180 300 65 50 650 230
3253156 280 460 760 640 310 190 320 65 50 690 260
3253160 300 480 800 670 320 190 340 70 58 730 290
3253164 320 520 840 710 330 200 360 70 58 770 340
