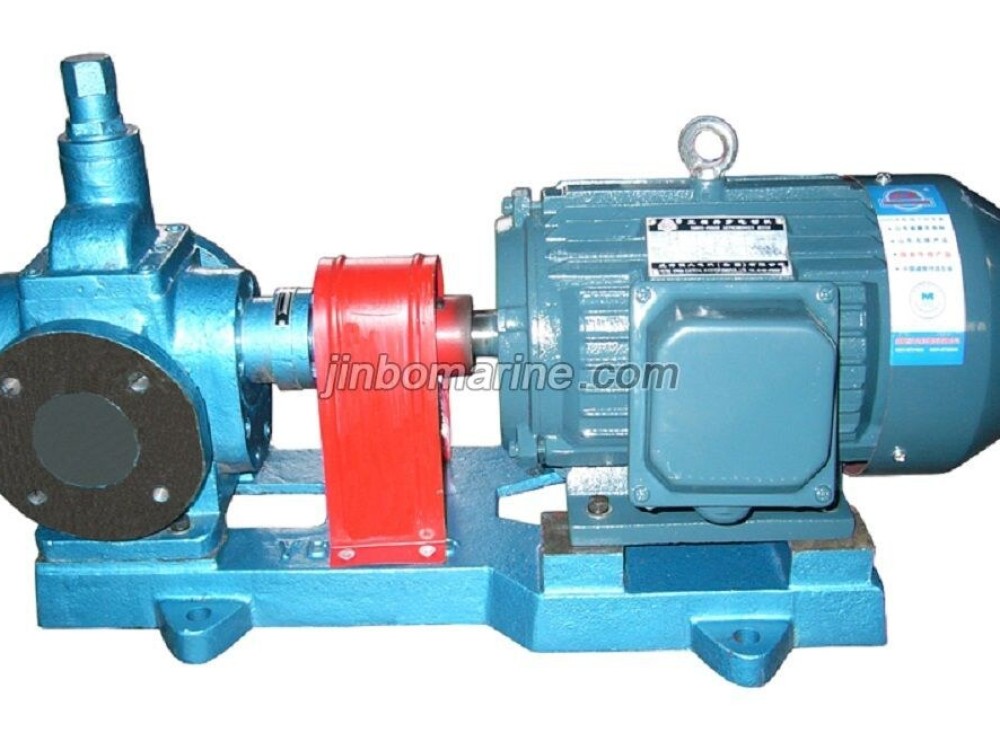

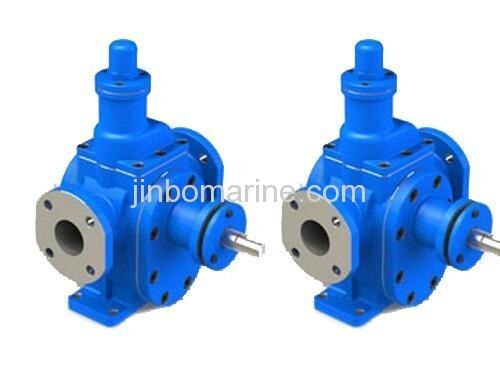

KCG Series High Temperature Gear Oil Pump
- Category:Gear Pump
- Material:cast iron
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Kcg Gear Oil Pump.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
KCG series high temperature oil transfer pump
This KCG series high temperature oil transfer pump is mainly used to transfer High temperature oil, Capacity from 1 to 300 m3/h with the transport medium temperature below 350c.
Main Specification
| Type | Caliber | Capacity | Discharge pressure | Vacuum Degree | Temperature | Motor Power | |
| mm | L/min | M3/h | Mpa | M | oC | Kw | |
| KCG-1/0.6 | 25 | 16.5 | 1 | 0.6 | 5 | 250 | 1.5 |
| KCG-1.5/0.6 | 25 | 25 | 1.5 | 0.6 | 5 | 250 | 1.5 |
| KCG-2/0.6 | 25 | 33.3 | 2 | 0.6 | 5 | 250 | 2.2 |
| KCG-3/0.6 | 25 | 55 | 3 | 0.6 | 5 | 250 | 2.2 |
| KCG-5/0.6 | 40 | 83 | 5 | 0.6 | 5 | 250 | 3 |
| KCG-6/0.6 | 40 | 100 | 6 | 0.6 | 5 | 250 | 3 |
| KCG-7.5/0.6 | 50 | 125 | 7.5 | 0.6 | 5 | 250 | 4 |
| KCG-10/0.6 | 50 | 165 | 10 | 0.6 | 5 | 250 | 5.5 |
| KCG-12/0.6 | 55 | 200 | 12 | 0.6 | 5 | 250 | 5.5 |
| KCG-15/0.6 | 55 | 250 | 15 | 0.6 | 5 | 250 | 5.5 |
| KCG-18/0.6 | 55 | 300 | 18 | 0.6 | 5 | 250 | 5.5 |
| KCG-38/0.6 | 100 | 633 | 38 | 0.6 | 5 | 250 | 15 |
| KCG-38/1.0 | 100 | 633 | 38 | 1 | 3 | 250 | 22 |
| KCG-58/0.6 | 100 | 633 | 58 | 0.6 | 5 | 250 | 18.5 |
| KCG-58/1.0 | 100 | 633 | 58 | 1 | 3 | 250 | 30 |
