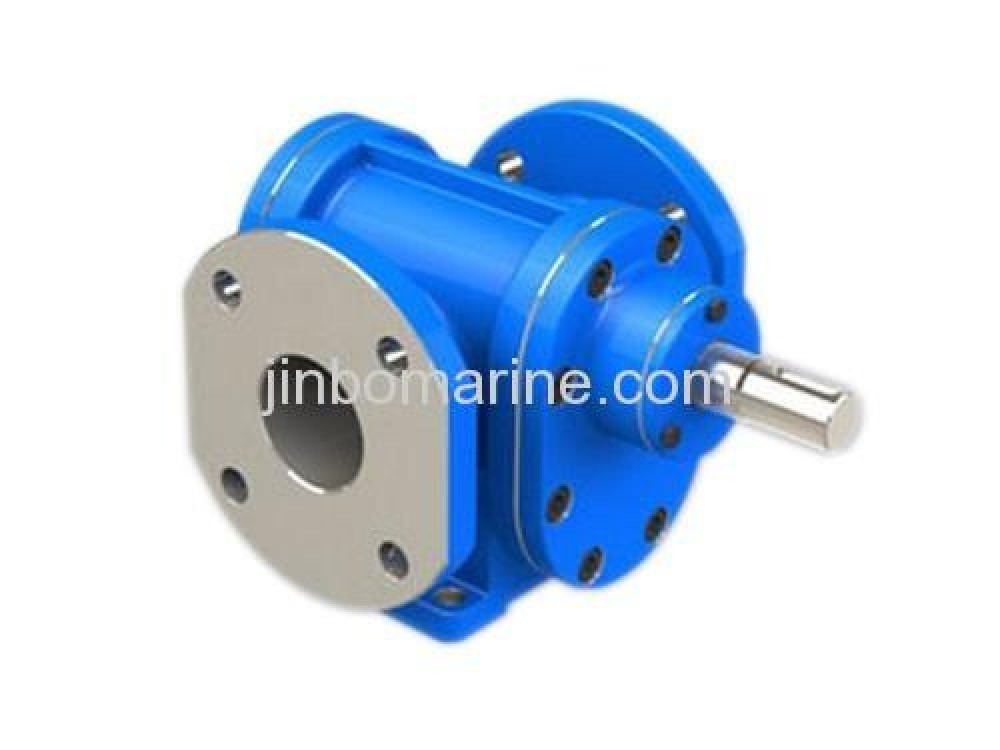

LB Series Gear Pump for Refrigrator
- Category:Gear Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Lb Sereis Gear Pump For Refrigerator.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China LB Series Gear Pump for Refrigrator:
LR Series Gear Pump is used for transferring N32 or N46 refrigerated lubricating and lubricant oil, temperature range from 10℃ to 80 ℃
Main Specification
| Type | Suction/Extrude Port Diameter | Capacity | Differential Pressure | Max. Discharge Pressure | Motor Power | Motor Speed | Motor Model | |
| mm | m3/h | L/min | Mpa | Mpa | kw | r/min | ||
| LB1.8 | 20 | 1.8 | 30 | 0.5 | 2.5 | 0.55 | 1390 | Y801-4 |
| LB3.6 | 25 | 3.6 | 60 | 0.5 | 2.5 | 1.1 | 910 | Y90L-6 |
| LB10 | 40 | 10 | 166.7 | 0.5 | 2.5 | 3 | 1420 | Y100L2-4 |
| LB12 | 40 | 12 | 200 | 0.5 | 2.5 | 3 | 1420 | Y100L2-4 |
| LB20 | 80 | 20 | 333.3 | 0.5 | 2.5 | 5.5 | 960 | Y132M2-6 |
| LB25 | 80 | 25 | 416.7 | 0.5 | 2.5 | 7.5 | 970 | Y160M-6 |
| LB40 | 100 | 40 | 666.7 | 0.5 | 2.5 | 11 | 970 | Y160L-6 |
