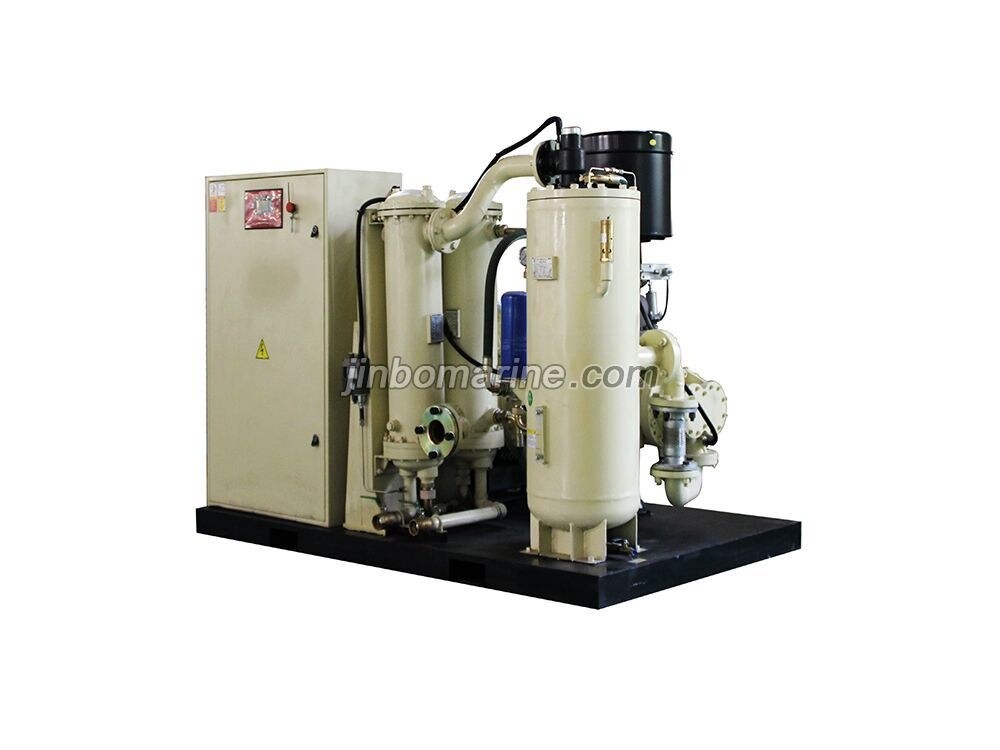

Low Pressure Marine Screw Compressor
- Category:Screw Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Low Pressure Marine Screw Compressor:
1. Main parts and standard parts are specially process, good corrosion resistance, with low power, low noise, compact structure, small volume, light weight, beautiful appearance, smooth operation and convenient installation, mainly for the use of the ship.
2. Applicable to destroyers, patrol boats, yachts, landing craft and other small and medium-sized ships.
3. Compact structure, small size, low noise, small vibration, small energy consumption, stable and reliable operation.
4. With automatic control and protection functions, the introduction of German technology, access to ships and warships type approval.
Main Technical Specifications
| Type | Displacement | Pressure | Power | Weight | Outline size(L*W*H) |
| (m3/min) | (bar) | (Kw) | (Kg) | (mm) | |
| GRF-30C | 3.4 | 8 | 22 | 680 | 1100*1000*1400 |
| 3.1 | 10 | ||||
| GRF-50C | 3.4 | 8 | 37 | 950 | 1300*1000*1600 |
| 5.6 | 10 | ||||
| GRF-75C | 10 | 8 | 55 | 155 | 2200*1400*1542 |
| 8.5 | 10 | ||||
| GRF-100C | 12.4 | 8 | 75 | 1800 | 2200*1400*1542 |
| 11.1 | 10 | ||||
| GRF-120C | 15.3 | 8 | 90 | 2250 | 2200*1400*1542 |
| 14 | 10 | ||||
| GRF-150C | 20 | 8 | 110 | 2250 | 2200*1400*1542 |
| 17.5 | 10 | ||||
| GRF-175C | 22.5 | 8 | 132 | 2800 | 2500*1550*1698 |
| 21 | 10 | ||||
| GRF-220C | 26.7 | 8 | 160 | 3000 | 2500*1550*1698 |
| 24.7 | 10 | ||||
| GRF-250C | 30 | 8 | 185 | 3200 | 2500*1550*1698 |
| 28.8 | 10 |
