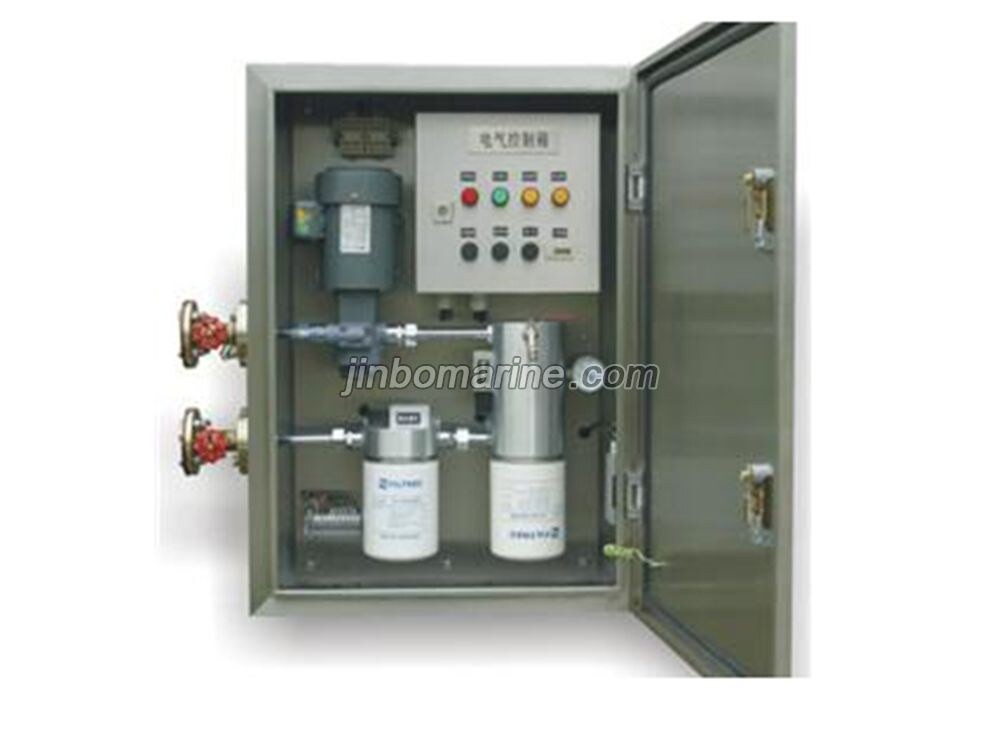

China ZYZ Series OLTC On Live Oil Purifier:

China ZYZ Series OLTC On Live Oil Purifier:

ZYZ on load switch oil filter

This transformer OLTC oil filter as a bypass oil circulation filtration equipment, insulating oil can be decomposed and filtration pollution under the state of no power cut, the removal of oil in water, free carbon and oxides, improve the dielectric strength of insulating oil, ensure the quality of oil. To extend the operation life of on load tap changer, to reduce the number of times of stopping oil change, to reduce the operation and maintenance cost, to improve the reliability and economy of power transformer, and to maintain the simplicity of maintenance.

Technical features:

1. All-weather box, stainless steel material, wall mounted and fixed installation.

2. Temperature and humidity relay, automatic adjustment of temperature and humidity equipment.

3. According to the actual situation to choose the mode of operation, can be automatically controlled, daily start can also be manually operated;

4. Oil pump with motor and pump body integration, compact structure, and low noise;

5. The has the function of remote monitoring of the operation and fault signal, the remote timing start, and the synchronous start of the on load tap changer;

6. Using high quality filter, quality assurance. Long life design, stable and reliable operation.

Rated pump pressure 0.5Mpa Alarm pressure 0.4Mpa
Motor power 200W Rated flow 10L/min
Filter impurity filter precision ≤1μm Cleanliness 5~6 Stage(NAS 1638 Standard )
Water content after filtration ≤25ppm Leakage current ≤0.75mA
Medium temperature -30~100℃ Box wall thickness 2mm
Power 380V/50Hz Box protection class IP54
Weight 45kg Exterior dimension 550×750×300
