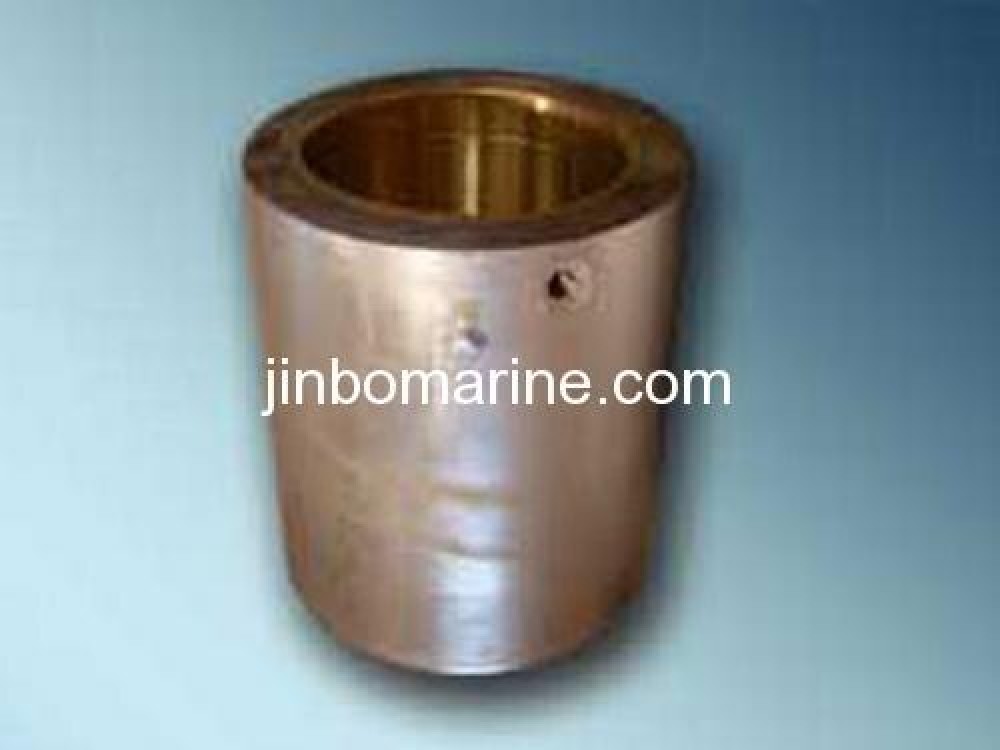

Lower Rudder Carrier CB*3146
- Category:Rudder Stock Seal
- Delivery Time:15 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Advantage
This type of lower rudder bearer is used together with CB*3145 upper rudder bearer.

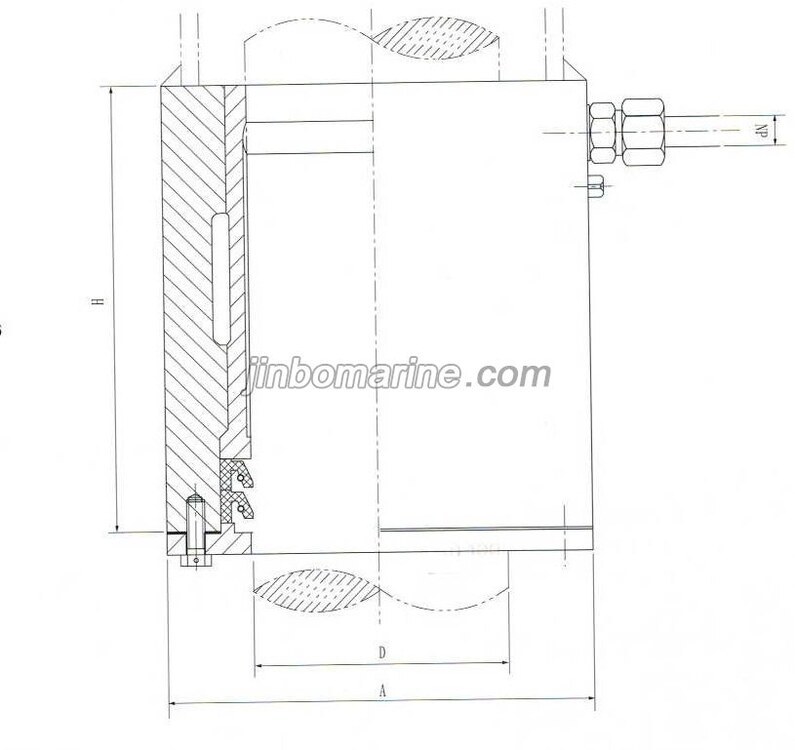

Model | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 300 | 320 | |
Dimensions | D | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 300 | 320 |
A | 122 | 132 | 142 | 160 | 180 | 190 | 200 | 224 | 234 | 244 | 254 | 274 | 308 | 328 | 348 | 368 | 402 | 422 | 442 | |
(mm) | H | 120 | 135 | 150 | 165 | 180 | 195 | 210 | 225 | 240 | 255 | 270 | 300 | 330 | 360 | 390 | 420 | 450 | 480 | 510 |
dN | 10 | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | 20 | 20 | 20 | 20 | 20 | |
Weight (kg) | 8.8 | 10.5 | 14.8 | 19.5 | 24.9 | 28.9 | 35.4 | 42 | 49.4 | 57.3 | 65.8 | 87.2 | 112.6 | 137.2 | 165.5 | 187.7 | 233.7 | 264 | 300.5 |
