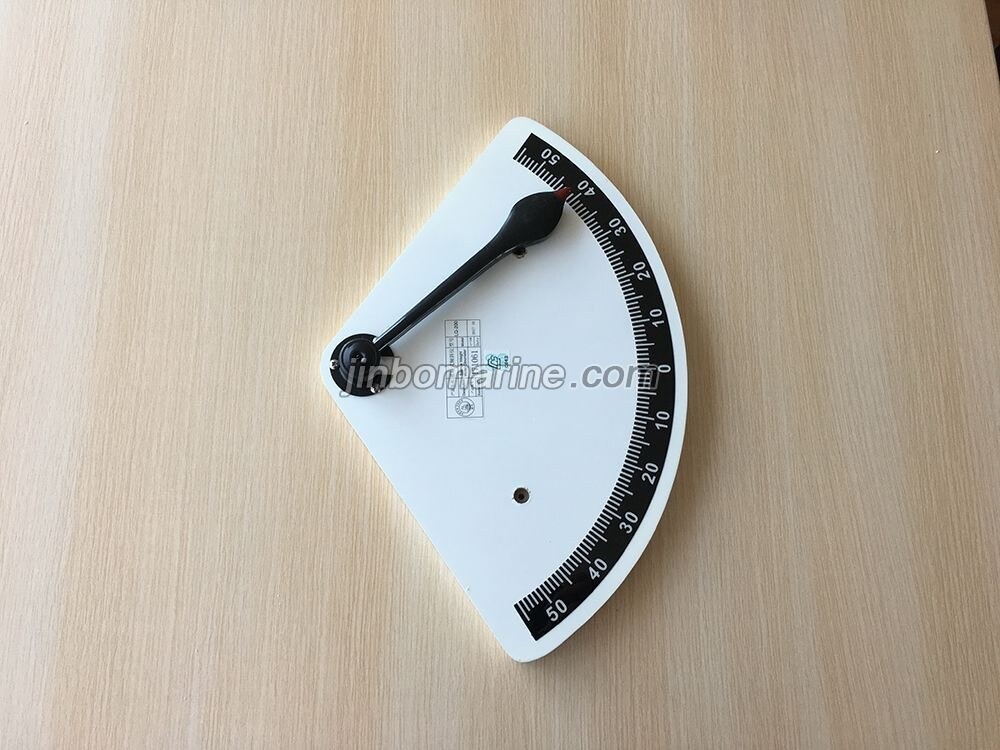

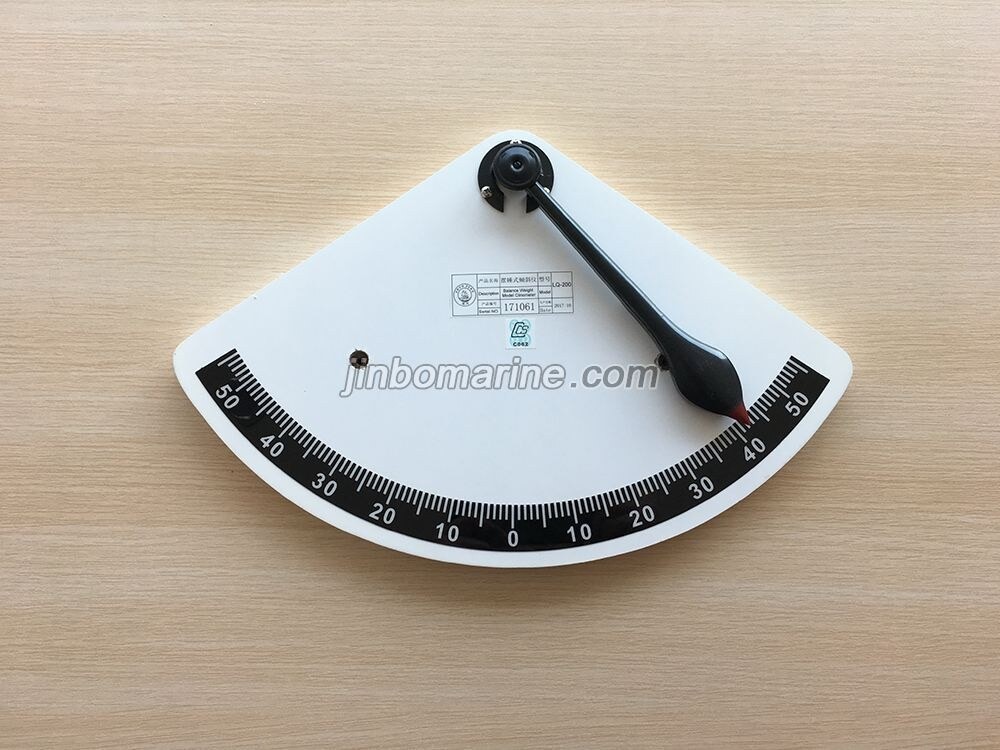

LQ-200 Balance Weight Model Clinometer

LQ-200 Balance Weight Model Clinometer is manufactured in accordance with GB3376-91《Marine Balance Weight Model Clinometer Technical Terms》and is the indispensable instrument for the ship’s support . It has the advantages of high sensitivity and indication accuracy. It is in concordance with the requirement of environment temperature、vibration、warm hot and salt mist etc. regulated by steel seagoing vessel standard.

Indicating range:55°~0°~55°

Graduation value:1

Indicating accuracy ≤±0.4°

Weight:0.9kg

Outline dimension:370x35x240mm
