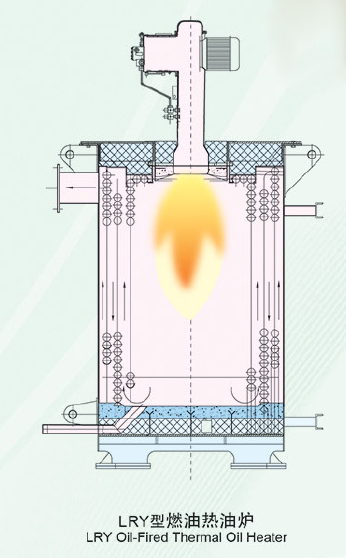

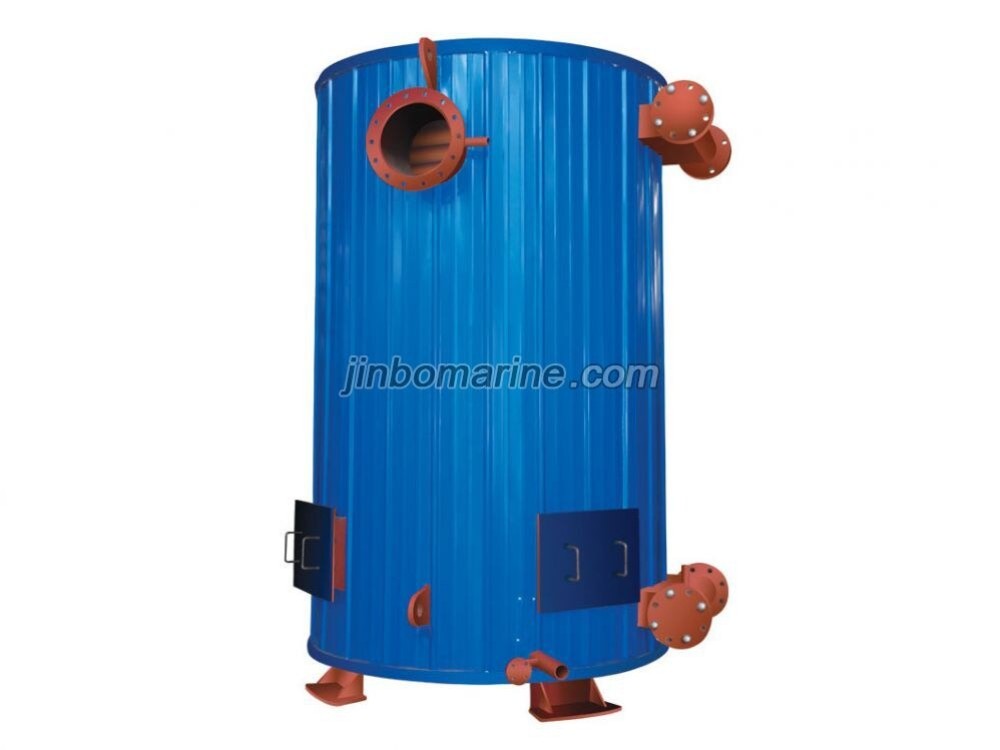

LRY Marine Oil Fired Thermal Oil Bolier
- Category:Marine Boiler
- Certificate:CCS, GL, LR, BV, DNV, ABS, NK, KR, RMRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
LRY Marine Oil-Fired Hot Water Bolier
Characteristic:
Vertical type
Compact structure and easy operation

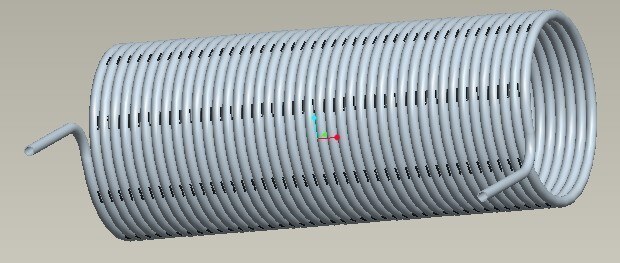

Convection heating surface is of pin tube structure
High temperature and low pressure. With higher system heat efficiency
Compact construction and higher heat exchange efficiency

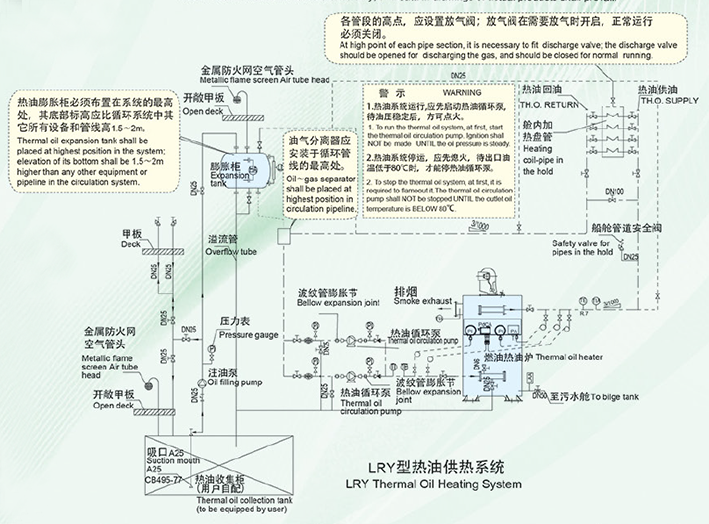

Closed circulation heat supply, without emission and pollution
Safe and reliable running
Applicable for heating for marine fuel, chemicals and living
Technical data:
| Modle |
Thermal Power (kw) |
Design Pressure (Mpa) |
Design Thermal Oil Temperature(℃) | Medium Vloume Inside The Heater(m3) | Dimension(mm) | |||

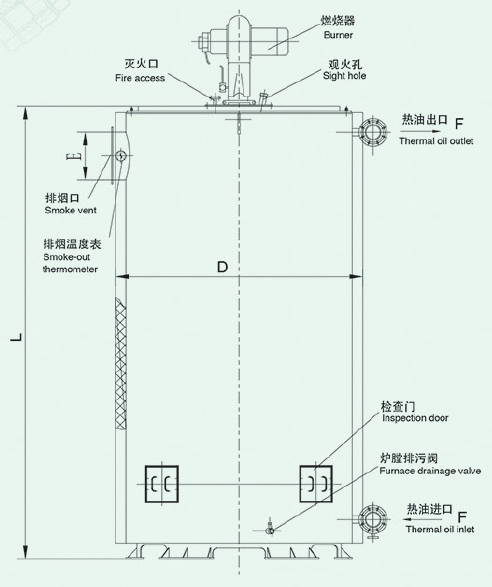

| L | D | E | F | |||||
| LRY120-0.8 | 120 | 0.8 | 300 | 0.11 | 1700 | Φ1200 | DN150 | DN65 |
| LRY350-0.8 | 350 | 300 | 0.22 | 2200 | Φ1400 | DN200 | DN80 | |
| LRY500-0.8 | 500 | 300 | 0.27 | 2300 | Φ1520 | DN250 | DN100 | |
| LRY600-0.8 | 600 | 300 | 0.32 | 2300 | Φ1620 | DN300 | DN100 | |
| LRY700-0.8 | 700 | 300 | 0.37 | 2500 | Φ1620 | DN300 | DN100 | |
| LRY900-0.8 | 900 | 300 | 0.46 | 2900 | Φ1630 | DN300 | DN100 | |
| LRY1000-0.8 | 1000 | 300 | 0.52 | 3030 | Φ1740 | DN300 | DN125 | |
| LRY1200-0.8 | 1200 | 300 | 0.61 | 3260 | Φ1740 | DN350 | DN125 | |
| LRY1500-0.8 | 1500 | 300 | 0.68 | 3680 | Φ1850 | DN350 | DN125 | |
| LRY1800-0.8 | 1800 | 300 | 1.23 | 4240 | Φ1940 | DN400 | DN125 | |
| LRY2000-0.8 | 2000 | 300 | 1.41 | 4550 | Φ2040 | DN400 | DN125 | |
| LRY2300-0.8 | 2300 | 300 | 1.49 | 4700 | Φ2050 | DN450 | DN125 | |
| LRY2500-0.8 | 2500 | 300 | 1.59 | 5010 | Φ2150 | DN500 | DN125 | |
| LRY3000-0.8 | 3000 | 300 | 1.83 | 5500 | Φ2250 | DN500 | DN150 | |
| LRY3500-0.8 | 3500 | 300 | 2.8 | 6000 | Φ2400 | DN550 | DN150 | |
| LRY4200-0.8 | 4200 | 300 | 3.35 | 6250 | Φ2530 | DN600 | DN200 | |
| LRY4600-0.8 | 4600 | 300 | 3.59 | 6250 | Φ2630 | DN650 | DN200 | |
| LRY6000-0.8 | 6000 | 300 | 4.35 | 6250 | Φ3100 | DN700 | DN250 | |
| LRY8000-0.8 | 8000 | 300 | 5.89 | 7500 | Φ3400 | DN800 | DN250 | |
