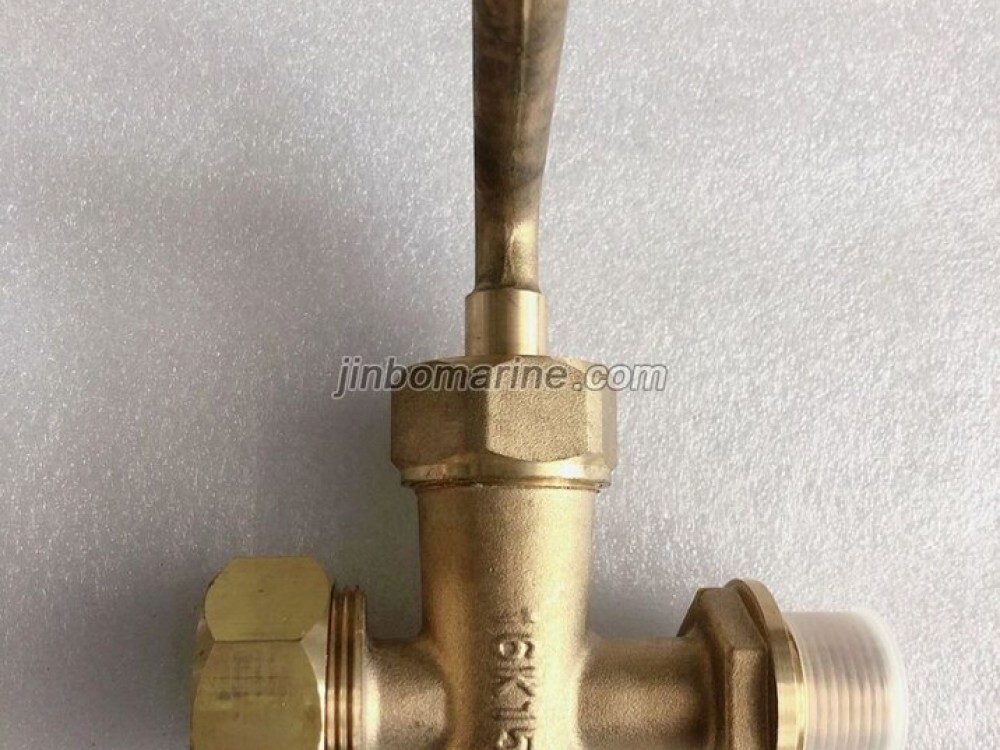

Marine Bronze Cock JIS F7387 S Type 16K
- Category:JIS Marine Cock
- Material:Bronze
- Standards:JIS F7387
- Certificate:CCS,BV,GL,NK,RINA,ABS,DNV,LR
- IMPA Code:751631~751634
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Cock JIS F7387 S Type 16K:
Design Standard: JIS F7387-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure:
DN6 & DN10: Body- 30KG, Plug-22KG
DN15 & DN20: Body-24KG, Plug-17.6KG
Main Material:
1-Body: Bronze (BC6)
2-Plug: Bronze (BC6)

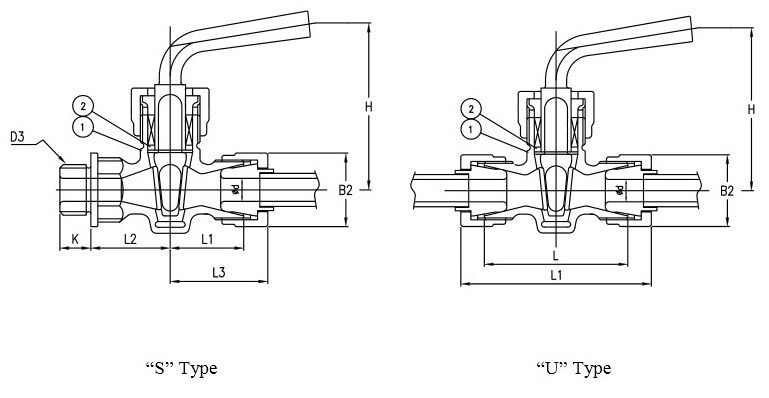

Main Size List(mm):
| Type | IMPA | Size | Copper Pipe Outside Diameter | Steel Pipe Outside Diameter | L | L1 | L2 | L3 | K | d3 | B2 | H | Weight(kg) |
| S type | 756131 | 6A | 8 | 10.5 | — | 28 | 28 | 37 | 12 | M12*1.5 | 30 | 65 | 0.46 |
| 756131 | 10 | 10.5 | — | 28 | 28 | 37 | 12 | M12*1.5 | 30 | 65 | 0.46 | ||
| 756132 | 10A | 15 | 17.3 | — | 40 | 40 | 52 | 16 | M24*2 | 41 | 73 | 0.85 | |
| 756133 | 15A | 20 | 21.7 | — | 45 | 45 | 58 | 22 | M30*2 | 46 | 92 | 1.46 | |
| 756134 | 20A | 25 | 27.2 | — | 50 | 50 | 65 | 24 | M36*2 | 50 | 104 | 2.09 | |
| U type | 756135 | 6A | 8 | 10.5 | 56 | — | — | — | — | — | 30 | 65 | 0.5 |
| 756135 | 10 | 10.5 | 56 | — | — | — | — | — | 30 | 65 | 0.5 | ||
| 756136 | 10A | 15 | 17.3 | 80 | — | — | — | — | — | 41 | 73 | 1 |
