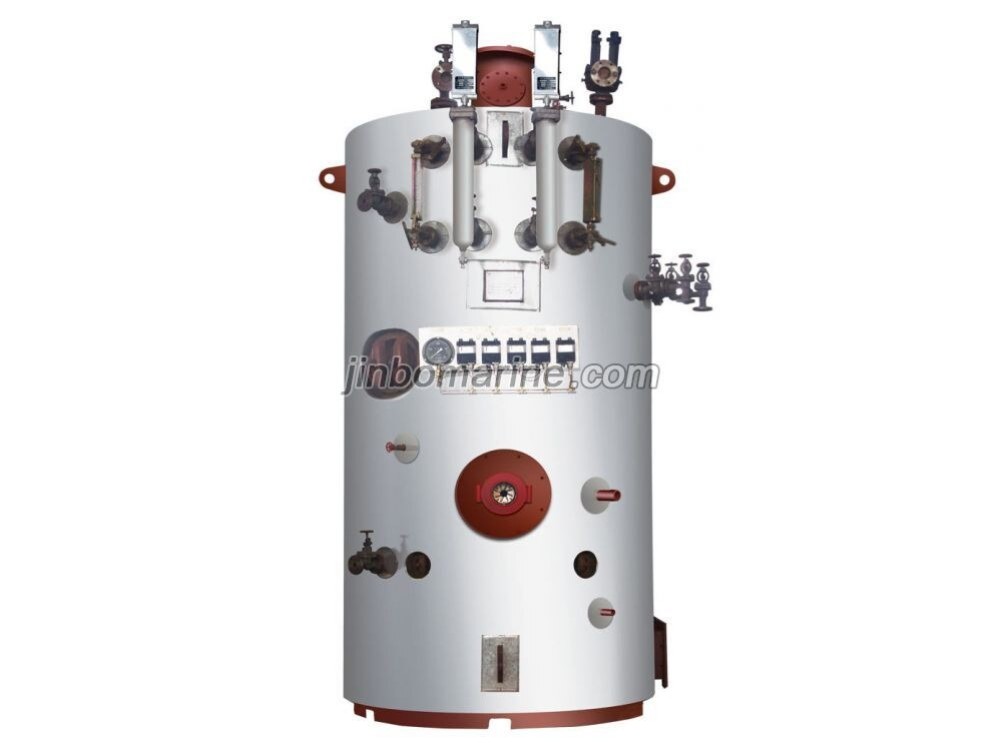

LYF Marine Oil Fired Exhaust Gas Composite Boiler
- Category:Marine Boiler
- Certificate:CCS, GL, LR, BV, DNV, ABS, NK, KR, RMRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:

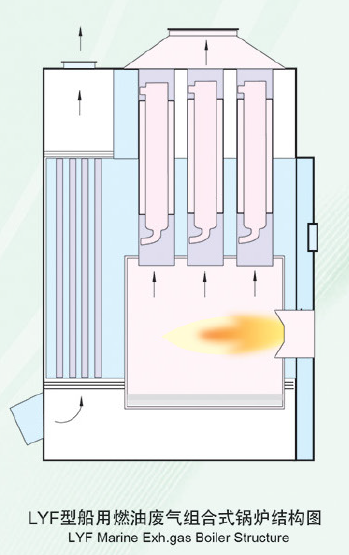

LYF vertical flue gas boiler, flue gas pipe is below the normal water level, avoiding oxygen corrosion and stress corrosion caused by temperature change at the steam-water interface, and improving the reliability and service life of the boiler.
Product characteristics:
1. The flue gas pipe is below the normal water level, which avoids the oxidation corrosion caused by humidity near the water level and the corrosion caused by the change of temperature and stress during operation.
2. The boiler has a cleaning door and a lower ash-water discharge pipe, which makes the boiler easy to maintain.
3. Dry operation in case of emergency.
Product advantages:
1. LYF vertical flue gas boiler can be designed according to the data of main engine exhaust gas and evaporation requirement.
2. The specific size and orifice of the boiler can be designed according to the actual needs of the users.
Technical data:
Modle |
Evaporation Capacity(kg/h) |
Exhaust Gas Heating Are(m2) |
Working Pressure (Mpa) |

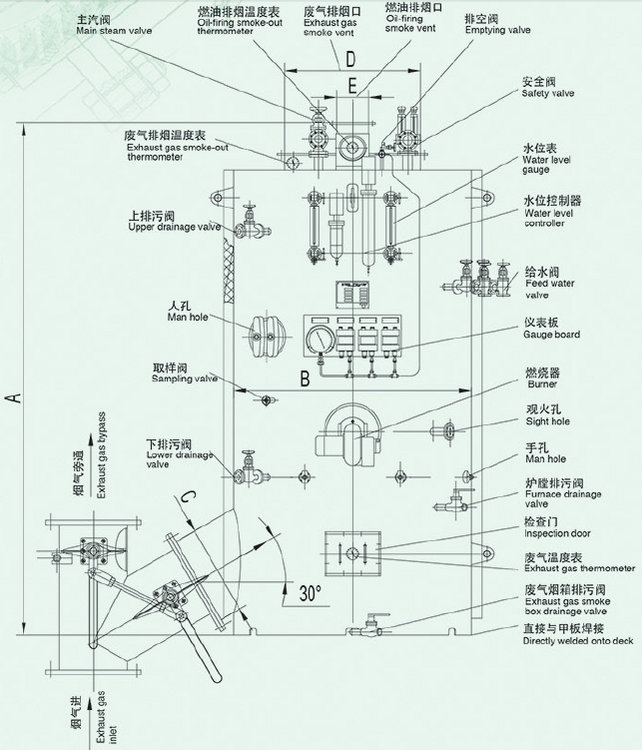

Dimension(mm) | ||||
A | B | C | D | E | ||||
LYF0.25/36-0.7 | 250 | 36 | 0.7 | 3550 | Φ1420 | DN400 | DN400 | DN200 |
LYF0.3/70-0.7 | 300 | 70 | 3750 | Φ1750 | DN500 | DN500 | DN200 | |
LYF0.5/60-0.7 | 500 | 60 | 3750 | Φ1750 | DN400 | DN400 | DN300 | |
LYF0.5/70-0.7 | 500 | 70 | 3950 | Φ1750 | DN500 | DN500 | DN300 | |
LYF0.5/90-0.7 | 500 | 90 | 4250 | Φ1750 | DN600 | DN600 | DN300 | |
LYF0.5/100-0.7 | 500 | 100 | 4250 | Φ1950 | DN600 | DN600 | DN300 | |
LYF0.5/120-0.7 | 500 | 120 | 4600 | Φ2050 | DN700 | DN700 | DN300 | |
LYF0.8/70-0.7 | 800 | 70 | 4025 | Φ2050 | DN500 | DN500 | DN300 | |
LYF0.8/90-0.7 | 800 | 90 | 4250 | Φ2150 | DN600 | DN600 | DN300 | |
LYF0.8/100-0.7 | 800 | 100 | 4250 | Φ2150 | DN600 | DN600 | DN300 | |
LYF0.8/140-0.7 | 800 | 140 | 4700 | Φ2250 | DN800 | DN800 | DN300 | |
LYF0.9/200-0.7 | 900 | 200 | 4800 | Φ2650 | DN1000 | DN1000 | DN300 | |
LYF1.0/60-0.7 | 1000 | 60 | 4450 | Φ2100 | DN500 | DN500 | DN300 | |
LYF1.0/140-0.7 | 1000 | 140 | 4800 | Φ2450 | DN800 | DN800 | DN300 | |
LYF1.0/160-0.7 | 1000 | 160 | 4800 | Φ2560 | DN800 | DN800 | DN300 | |
LYF1.0/180-0.7 | 1000 | 180 | 4950 | Φ2650 | DN1000 | DN1000 | DN300 | |
LYF1.0/200-0.7 | 1000 | 200 | 5050 | Φ2650 | DN1000 | DN1000 | DN300 | |
LYF1.2/140-0.7 | 1200 | 140 | 4800 | Φ2450 | DN800 | DN800 | DN300 | |
LYF1.2/180-0.7 | 1200 | 180 | 5050 | Φ2650 | DN1000 | DN1000 | DN300 | |
LYF1.2/200-0.7 | 1200 | 200 | 5050 | Φ2650 | DN1000 | DN1000 | DN300 | |
LYF1.2/240-0.7 | 1200 | 240 | 5150 | Φ2750 | DN1000 | DN1000 | DN300 |
