Marine Cast Iron Angle Hose Valve JS F7333 5K/10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

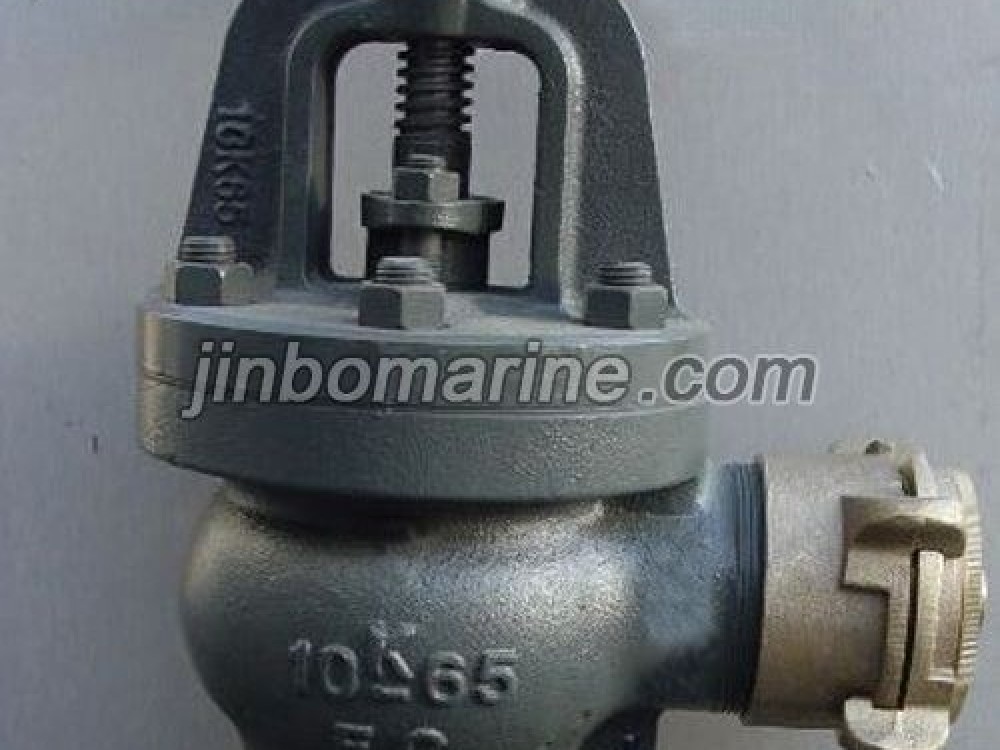

China Marine Cast Iron Angle Hose Valve JS F7333 5K/10K:

Design Standard: JIS F7333

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: 5K: Body- 1.05Mpa, Seat-0.77Mpa, 10K: body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -5K or 10K

Main Material:

Body & Bonnet: Cast Iron (FC200)

Seat & Disc: Bronze (BC6) or Stainless Steel (SCS2)

Stem: Brass (C3771BD) or Stainless Steel (SUS403)

Packing Gland: Bronze (BC6) or Stainless Steel (SCS2)

Coupling: Bronze or Brass

Handwheel: Cast Iron (FC200)

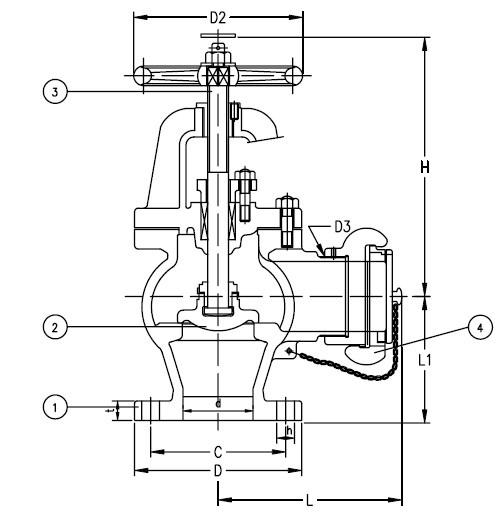

Main Size List(mm):

IMPA CODE DN k d L D C n-d t H D2 D3 L1 L2 Weight(kg)
751734 50 5 50 155 130 105 4-15 16 255 160 M64X2 100 110 12.8
751736 10 50 170 155 120 4-19 20 255 160 M64X2 120 115 17
751737 65 10 65 185 175 140 4-19 22 270 200 M80X2 130 125 24.3
