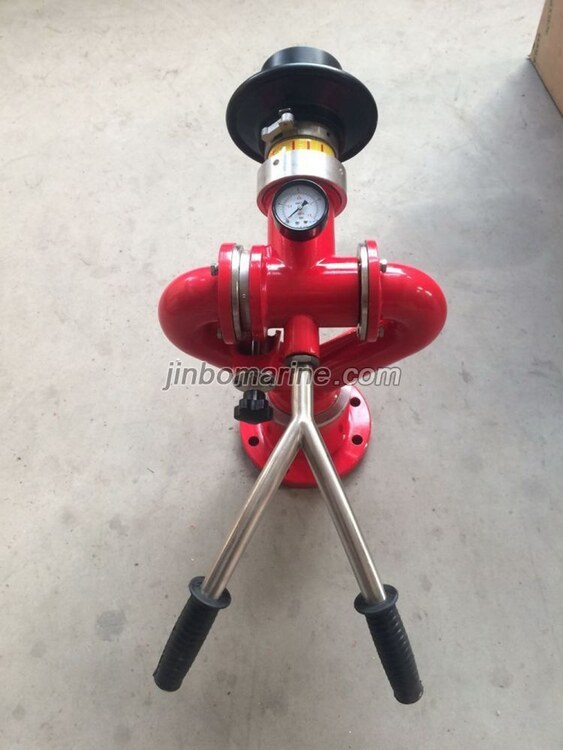

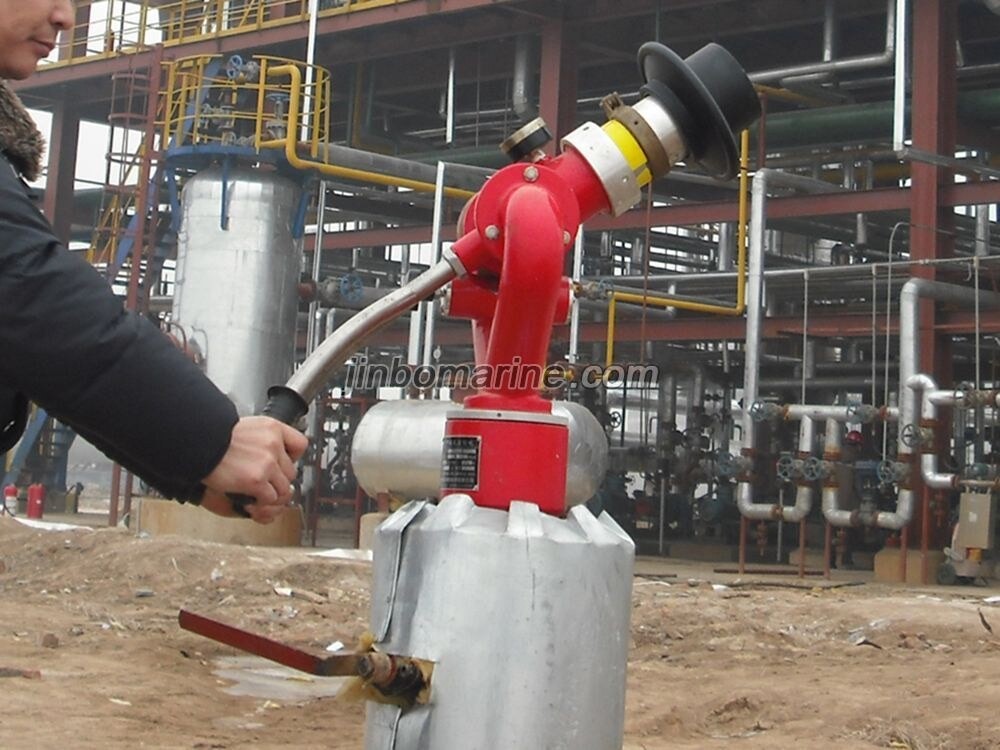

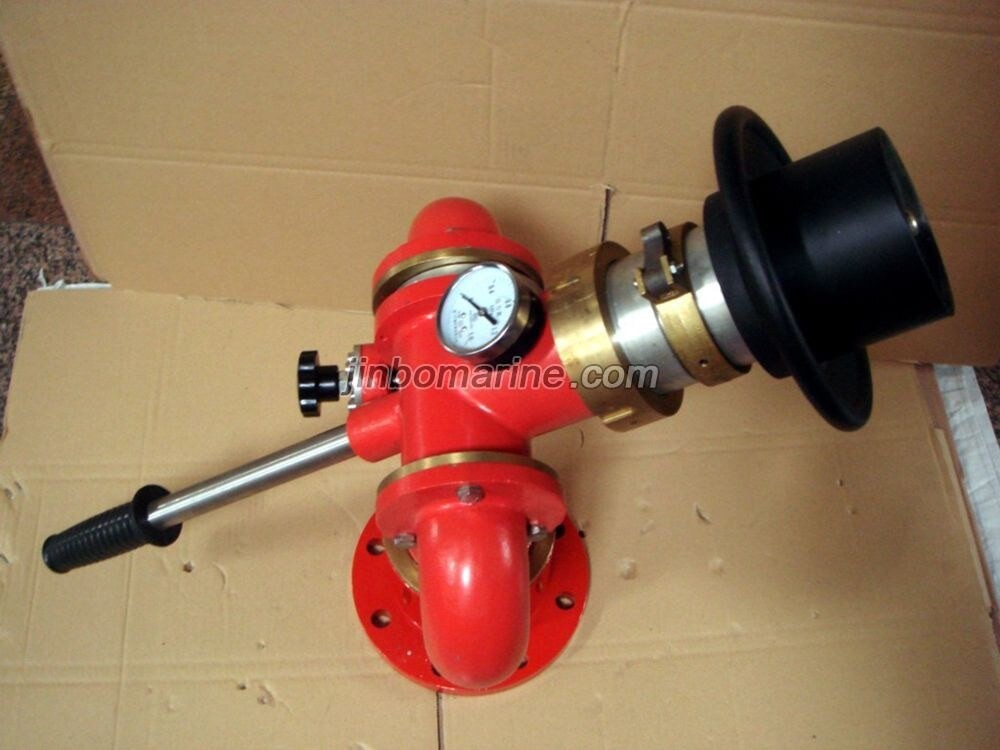

China Manual Monitor PS30-50A:

Type: PS30-50A
Flow Range: 30-40-50 L/S Adjustable
Working Pressure: 10 bar
Max Reach @ Max Flow: 65m
Range of motion: -45°~+90 Vert,360 Rotation
Max fog angle :120°
Material (body):Aluminum
Material (nozzle):Aluminum
Material (Tiller) : 304 stainless steel with rubber handle
Pump requirement for minimum performance:30L/S@ 8 bar
Pipe dimensions for installation: 4 Inch
Monitor Inlet : DN100 flange
Monitor Outlet:2.5 inch (65mm)
Paint: Fire Red
Weight: 16KG
