Marine Air Pipe Head for Water Tank CB/T3594-94 Type E/ES

  • Category:CB Marine Air Pipe Head
  • Material:Nodular Cast Iron, Cast Iron
  • Standards:CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81
  • Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Air Pipe Head for Water Tank CB/T3594-94 Type E/ES:

Marine Air Pipe Head or can be called as marine air vent head, air pipe joint. It is used on the air pipe system of oil or water tank in the vessels and the offshore drilling platform. There are the types A/AS,B/BS,C/CS,D/DS,E/ES,FS.

Standard: CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81

Flange Size as per GB569 or GB2501

Type Name Size Application
A/AS Mushroom Air Pipe Head 50--250 on the air pipe top of oil &water tank
B/BS Gooseneck Air Pipe Head
C/CS Sounding & Ventilation Air Pipe Head 50--100
D/DS Float Disc Type Air Pipe Head for Oil Tank 50-450 on the air pipe top of oil tank
E/ES Float Disc Type Air Pipe Head for Water Tank on the air pipe top of water tank
FS Float Ball Type Air Pipe Head for oil&water Tank on the air pipe top of oil &water tank

Main Material:

1-Cover: Nodular Cast Iron, Cast Iron

2-Body: Nodular Cast Iron, Cast Iron

3-Screen Cover: Carbon Steel or Stainless Steel

4-Float Disc: Stainless Steel

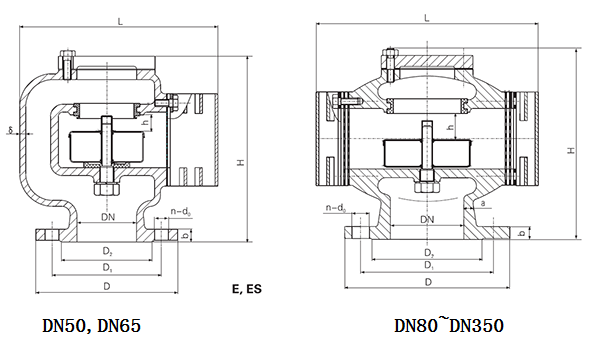

Main Size List for E/ES Type(mm):

nominal
diameter 		structure dimension flange connection dimension Thickness
δ

Lift Range

h

weight(kg)
L H D D1 D2 b n d0 Oil tank Water tank
50 160 170 135 103 84 15 6 15 6.5 17 6.24 4.49
50 160 170 140 110 90 16 4 14 6.5 17 6.32 5.02
65 190 200 155 123 104 14 6 15 6.5 22 10.37 9.16
65 190 200 160 130 110 16 4 14 6.5 22 10.66 9.23
80 225 205 170 138 118 14 8 15 7.5 27 22.60 19.50
80 225 205 190 150 128 18 4 18 7.5 27 23.01 19.97
100 245 235 190 158 138 14 8 15 8 27 27.40 24.40
100 245 235 210 170 148 18 4 18 8 27 29.34 26.30
125 290 265 215 183 164 14 10 15 8 44 33.70 29.20
125 290 265 240 200 178 20 8 18 8 44 35.46 30.96
150 367 300 240 208 190 14 12 15 9 53 39.02 34.92
150 367 300 265 225 202 20 8 18 9 53 40.94 36.84
200 463 367 295 264 247 15 12 15 9 60 63.70 59.62
200 463 367 320 280 258 22 8 18 9 60 66.79 62.71
250 550 460 365 327 306 16 14 17 9 78 90.10 83.20
250 550 460 375 335 312 24 12 18 9 78 93.32 86.42
300 650 580 430 386 360 19 14 21 10 85 110.40 106.20
300 650 580 440 395 365 24 12 22 10 85 112.67 108.47
350 770 680 480 436 410 20 19 21 10 95 121.50 112.40
350 770 680 490 445 415 26 12 22 10 95 128.02 118.92
