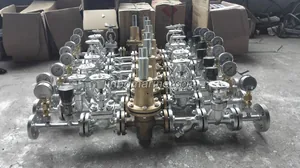

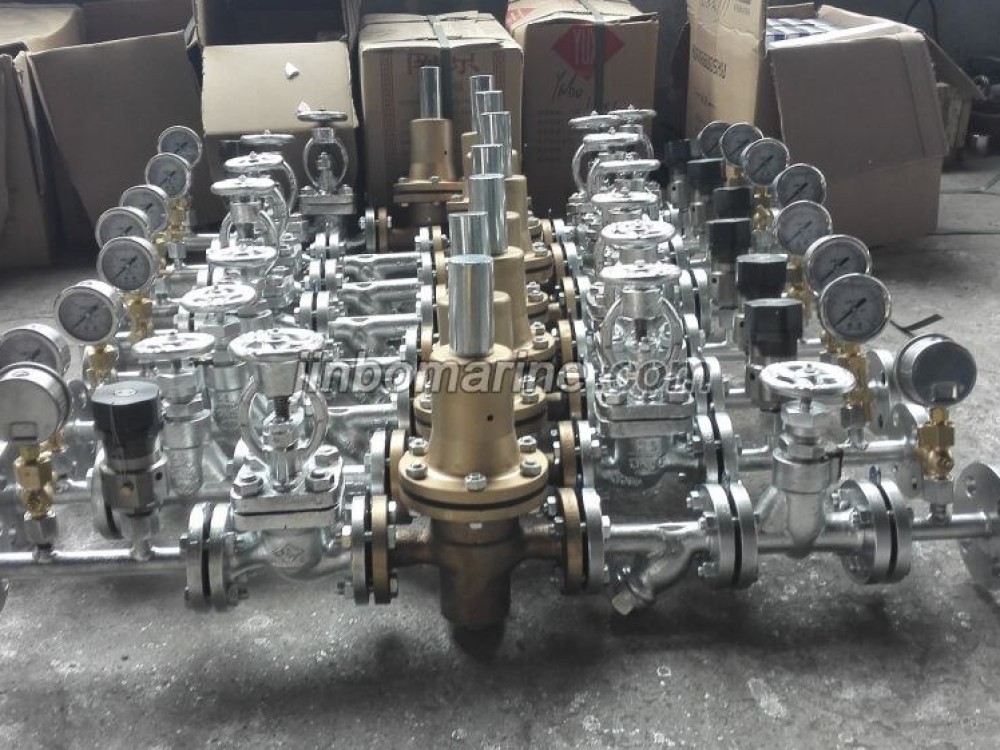

Marine Air Pressure Reducing Valve Unit
- Category:CB Marine Pressure Reducing Valve
- Material:Cast Steel, Bronze
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Standards:CB3656
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Air Pressure Reducing Valve Unit:
Marine Air Pressure Reducing Valve Group is used for marine air system. It can keep outlet pressure stable.The max.working temperature is 60℃ and max.working pressure is 3.0 MPa. The mating dimensions of the flanges according to ISO2084-1974 or JIS B2220-1990 or GB569-65, or GB2506-89.
Material: Bronze, Cast Steel

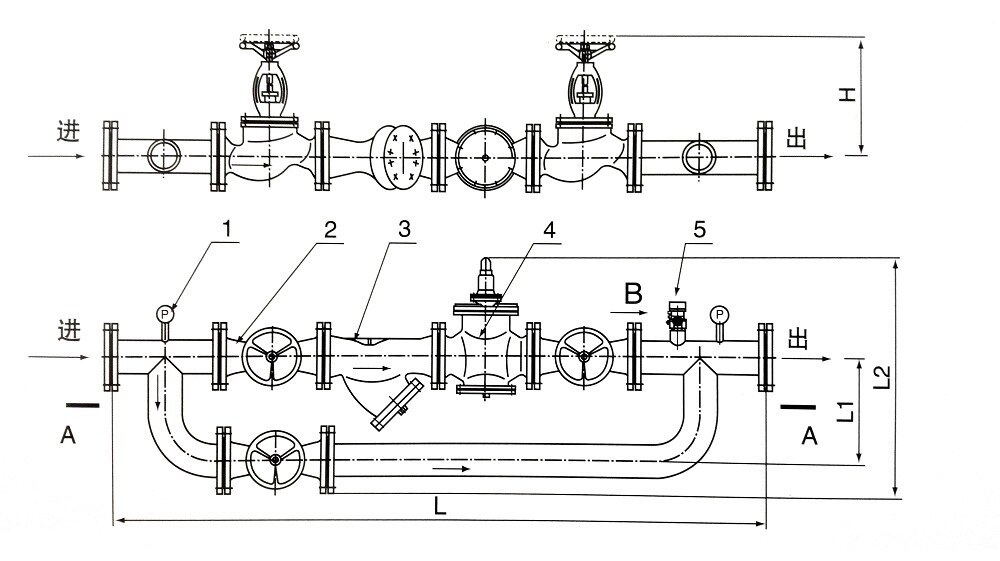

Main Parts:
1-Pressure Gauge
2-Globe Valve
3-Y Strainer
4-Air Pressure Reducing Valve
5-Air Signal Safety Valve
Main Specification:
| Size(mm) | Inlet Pressure(Mpa) | Outlet Pressure(Mpa) | Length(mm) | |
| L | L1 | |||
| DN15 | 3.5-0.7 | 0.2~1.2 | 850 | 150 |
| DN20 | 945 | 200 | ||
| DN25 | 1000 | 200 | ||
| DN32 | 1095 | 260 | ||
| DN40 | 1215 | 260 | ||
| DN50 | 1365 | 310 | ||
| DN65 | 1500 | 310 | ||
