Marine Bronze Cock JIS F7388 S Type 20K
- Category:JIS Marine Cock
- Material:Bronze
- Standards:JIS F7388
- Certificate:CCS,BV,GL,NK,RINA,ABS,DNV,LR
- IMPA Code:750551~750552
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Cock JIS F7388 S Type 20K:
Design Standard: JIS F7388-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 42KG, Plug-30.8KG
| Pressure Rating | |
| Fluid Condition | Max. working pressure Mpa (Kgf/cm2) |
| steam of 205℃ or less | 1.57 (16) |
| air, gas, oil & pulsation water | 1.96 (20) |
| non-shock water of 120℃ or less | 2.75 (28) |
Main Material:
1-Body: Bronze (BC6)
2-Plug: Bronze (BC6)
3-Stem: Brass (C3771BD)

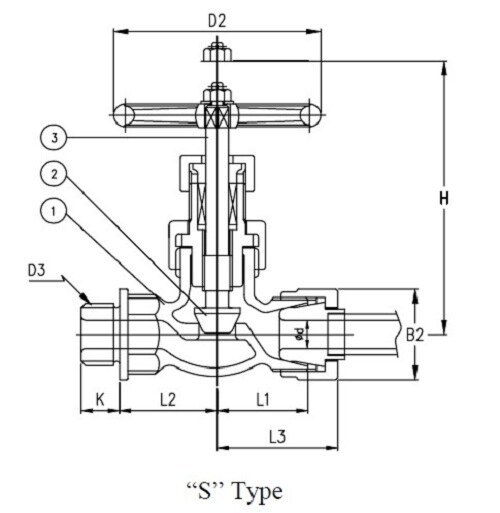

Main Size List(mm):
| Type | IMPA | Size | Copper Pipe Outside Diameter | Steel Pipe Outside Diameter | L1 | L2 | L3 | K | D3 | H | B2 | D2 | Weight(kg) |
| S type (Screwed) | 750551 | 6A | 8 | 10.5 | 32 | 32 | 41 | 12 | M20*1.5 | 100 | 30 | 63 | 0.81 |
| 750551 | 6A | 10 | 10.5 | 32 | 32 | 41 | 12 | M20*1.5 | 100 | 30 | 63 | 0.81 | |
| 750552 | 10A | 15 | 17.3 | 36 | 35 | 48 | 16 | M24*2 | 115 | 41 | 80 | 1.22 |
