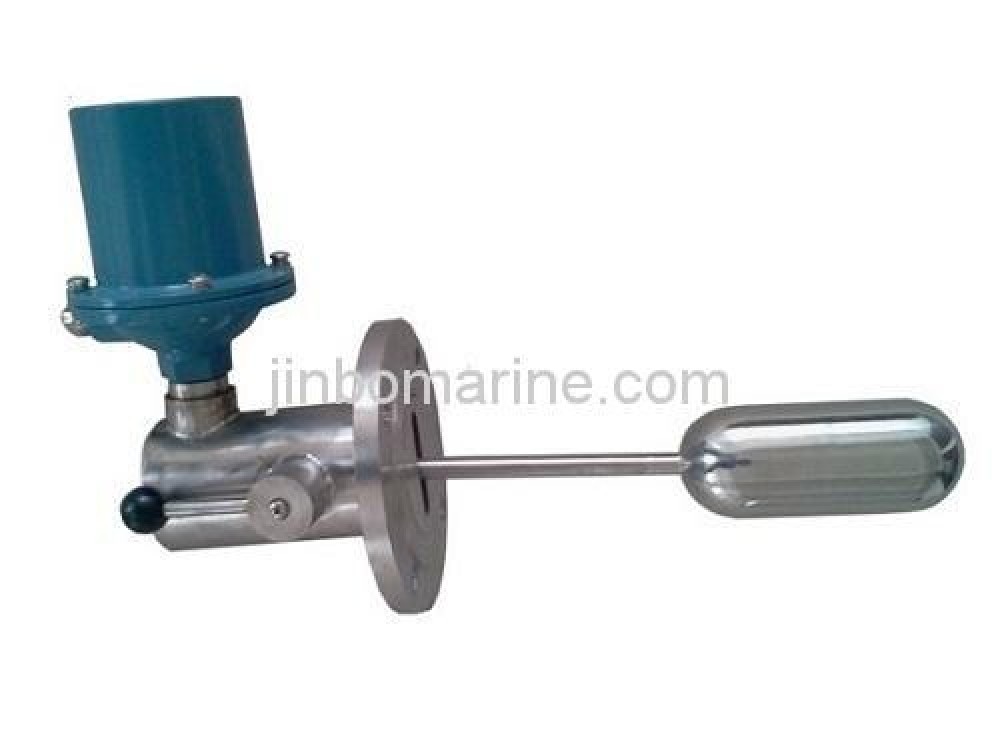

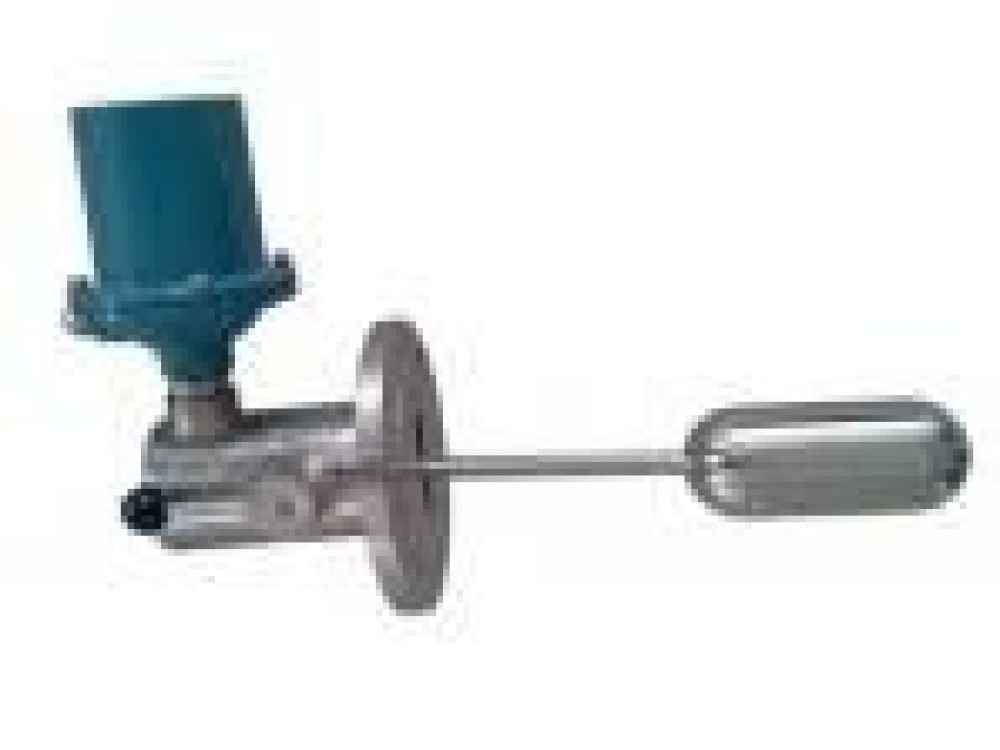

Marine Self-Checking Float Level Controller UQK-651-C-Z
- Category:Marine Level Switch
- Material:Stainless Steel
- Certificate:GL, DNV, ABS, BV, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Self-Checking Float Level Controller UQK-651-C-Z:
Marine Float Level Controller UQK-651-C-Z is added with self-check function on the basis of UQK-651-C,namely Self-checking Marine Float Level Controller,which can be moved the operating handle to detect the controller and system under the state of equipment working in order to assure the controller and system operate safely .
Technical Specification:
| Model | UQK-651-C-Z | UQK-651-C/B-Z |
| Mounting type | Horizontal mounting | |
| Switch type | SPDT | |
| Contact capacity | SPDT AC;220/10A DC125V/0.6A | |
| Switching error | 20～70（mm） | |
| Medium gravity | ≥0.85 | |
| Medium temp | ≤200℃ | |
| Working pressure | 1.0MPa | |
| Protection | EXdIIBT3～T5 | |
| Protection | IP68 | |
| Flange standard | GB2506-89 | GB573-65 |
| Float dia D mm | Φ60 | |
