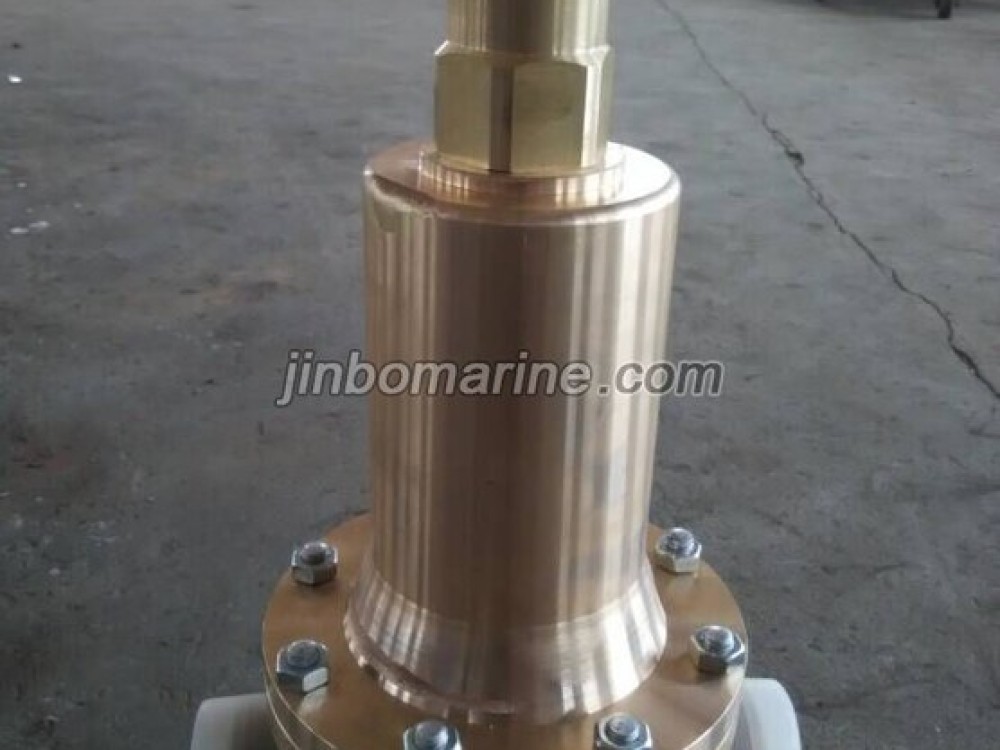

Marine Bronze Air Pressure Reducing Valve
- Category:CB Marine Pressure Reducing Valve
- Material:Bronze
- Standards:CB/T3656-94
- Certificate:Mill Certificate
- Packing Details:Plywood Case
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Air Pressure Reducing Valve:
Marine Air Pressure Reducing Valveis used for marine air pipe system. It can keep outlet pressure stable.The connection way is thread. Standard CB/T3656-94 for reference.
Technical Data:
| Pressure Class | Inlet Pressure P1 (Mpa) | Outlet Pressure P2(Mpa) |
| A | 3.0 | 1.0~0.7 |
| B | 3.0 | <0.7~0.2 |
| C | 1.0 | 0.4~0.05 |
Main Parts & Material:
Body-Bronze
Bonnet-Bronze
Spring-60Si2MnA
Film-Rubber

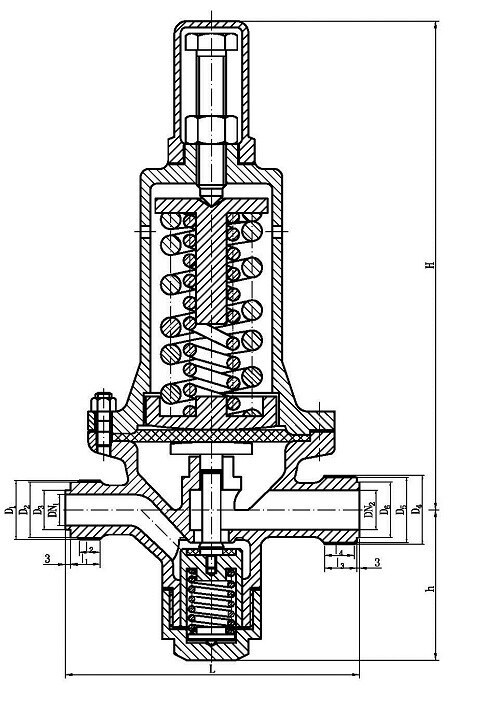

Main Size List(mm):
| Nominal Diameter | Structure Dimension | Outside Thread Dimension |
weight (kg) |
||||||||||||
| Inlet | Outlet | ||||||||||||||
| DN1 | DN2 | L | H | h | D1 | D2 | D3 | L1 | L2 | D3 | D4 | D5 | L3 | L4 | |
| 15 | 20 | 210 | 263 | 99 | M36×2 | 33 | 22 | 22 | 5 | M39×2 | 36 | 25 | 23 | 5 | 6.57 |
| 20 | 25 | 229 | 395 | 121 | M39×3 | 36 | 25 | 23 | 5 | M48×3 | 45 | 32 | 26 | 6 | 22.3 |
| 25 | 32 | 229 | 395 | 121 | M48×4 | 45 | 32 | 26 | 6 | M56×4 | 53 | 38 | 28 | 6 | 27.3 |
