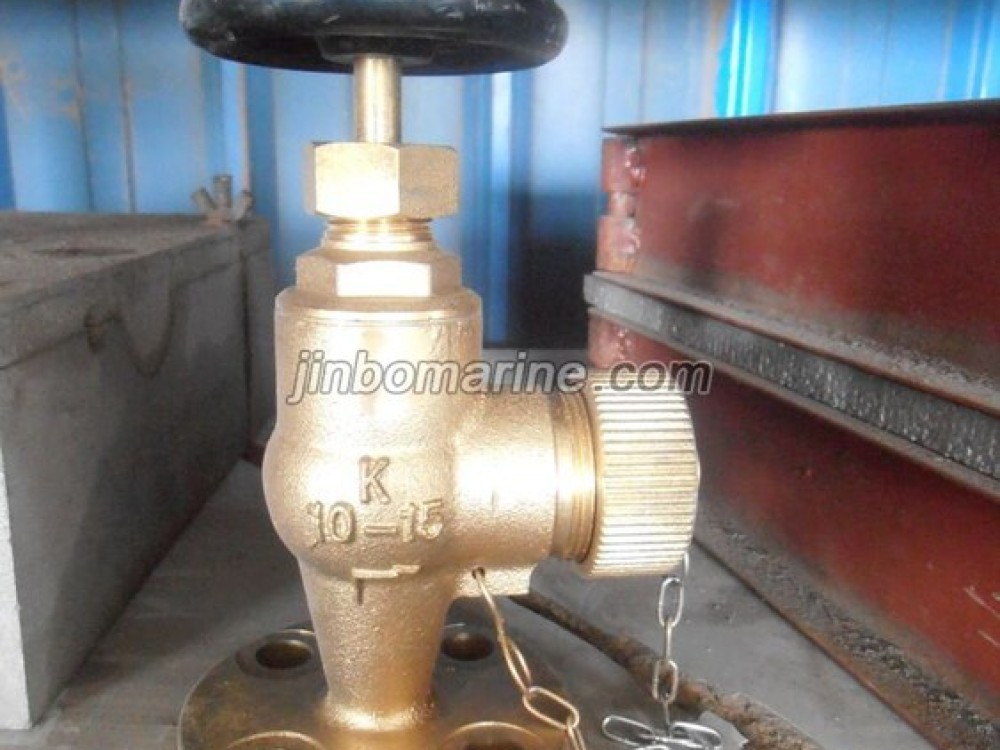

Marine Bronze Angle Hose Valve JIS F7334 10K (DN15-DN25)

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Angle Hose Valve JIS F7334 10K (DN15-DN25):

Design Standard: JIS F7334-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 - 10K

Main Material:

Body: Bronze (BC6)

Disc:Bronze (BC6)

Seat: Bronze(BC6)

Stem: Brass (C3771BD)

Coupling: Brass or Bronze

Bonnet:Bronze (BC6)

Handwheel: Cast Iron (FC200)

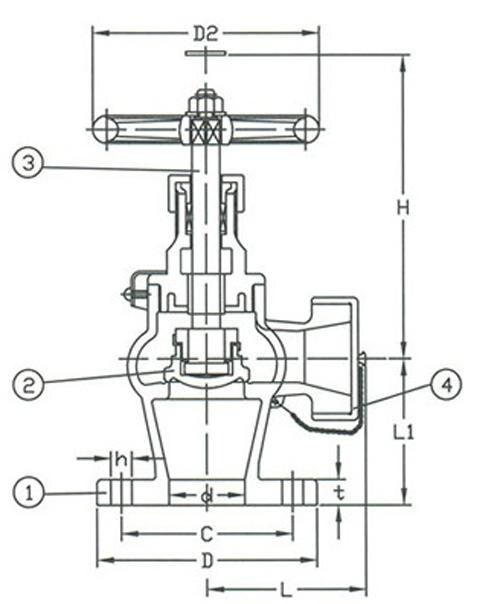

Main Size List(mm):

IMPA Code
Size L L1 D C No of Bolt Hole h t H D2
751706 5K15 68 55 80 60 4 12 9 120 80
751707 10K15 73 70 95 70 4 15 12 120 80
751708 5K25 78 65 95 75 4 12 10 145 125
751709 10K25 83 70 125 90 4 19 14 145 125
