Marine Bronze Female Thread Globe Lift Check Valve CB/T310-1999
- Category:JIS Marine Check Valve
- Material:Bronze
- Standards:CB/T310-1999
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Female Thread Globe Lift Check Valve CB/T310-1999:
Marine Bronze Female Thread Globe Lift Check Valve is used to prevent the back flow of medium.
Design Standard: CB/T310-1999
Test Standard: GB600
Nominal Pressure: 1.6Mpa
Applicable Medium: sea water, fresh water, lubricating oil, fuel oil, t≤250℃ steam.
Main Parts & Material:
Body-Bronze
Cover-Bronze
Disc-Bronze

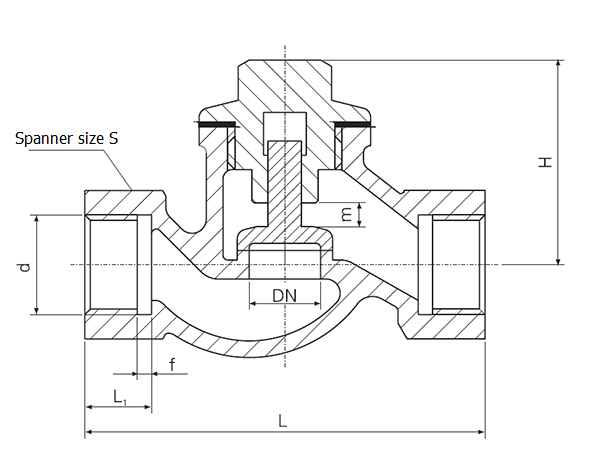

Main Size(mm):
|
nominal diameter |
Structure Dimension | thread joint dimension |
lift m |
Weight(kg) | ||||
| L | H | d | l | f | s | |||
| 15 | 84 | 46 | G 1/2 | 14 | 3 | 27 | 5 | 0.25 |
| 20 | 95 | 52 | G 3/4 | 16 | 3 | 32 | 6 | 0.6 |
| 25 | 110 | 57 | G1 | 18 | 4 | 41 | 7 | 0.85 |
| 32 | 130 | 64 | G 1-1/4 | 20 | 4 | 50 | 9 | 1.49 |
| 40 | 150 | 72 | G 1-1/2 | 22 | 4 | 60 | 12 | 2.26 |
| 50 | 180 | 80 | G2 | 24 | 4 | 70 | 15 | 3.2 |
