Marine Bronze Gate Valve JIS F7368 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Gate Valve JIS F7368 10K:

Design Standard: JIS F7368-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 - 10K

Main Material:

Body: Bronze (BC6)

Bonnet: Bronze (BC6)

Disc: Bronze (BC6)

Stem: Brass (C3771BD)

Gasket: non-asbestos

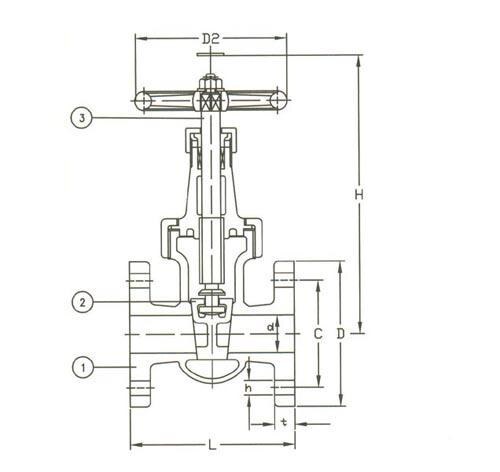

Main Size List(mm):

IMPA CODE Size L D C No of Bolt Hole h t H D2
750961 15 100 95 70 4 15 12 175 80
750962 20 110 100 75 4 15 14 200 100
750963 25 120 125 90 4 19 14 220 125
750964 32 140 135 100 4 19 16 250 125
750965 40 150 140 105 4 19 18 290 140
