Marine Bronze Screw Down Check Globe Valve GB/T588-2008 Type A/AS

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

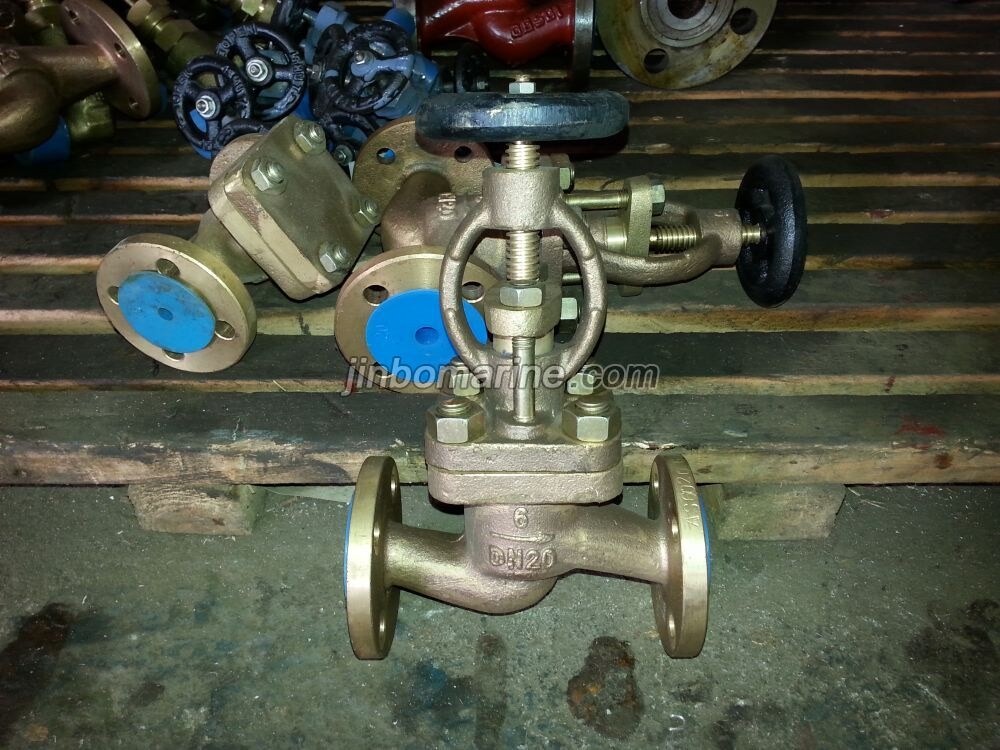

China Marine Bronze Screw Down Check Globe Valve GB/T588-2008 Type A/AS:

Marine Bronze Screw Down Check Globe Valve also can be called as Marine Bronze SDNR Valve, SDNR Globe Valve or Stop Check Valve. It is used on the pipe system with the medium sea water, fresh water, lubricanting oil, fuel oil and temperature≤250℃ steam.

Design Standard: GB/T588-2008, CBM1070-81, CBM1076-81

Test Standard: GB600

Flange size as per GB569 or GB2501

Nominal Pressure(MPa) Nominal Diameter(mm) Applicable Medium
0.6 15～150 Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃steam.
1.0 65～150
1.6 65～150
2.5 15～125

Main Material:

Body-Bronze (ZCuSN5Pb5Zn5)

Bonnet-Bronze (ZCuSN5Pb5Zn5)

Disc-Bronze (ZCuSN5Pb5Zn5)

Seat-Bronze (ZCuSN5Pb5Zn5)

Stem-Bronze(QAI9-2)

Main Size List(mm):

Type A:

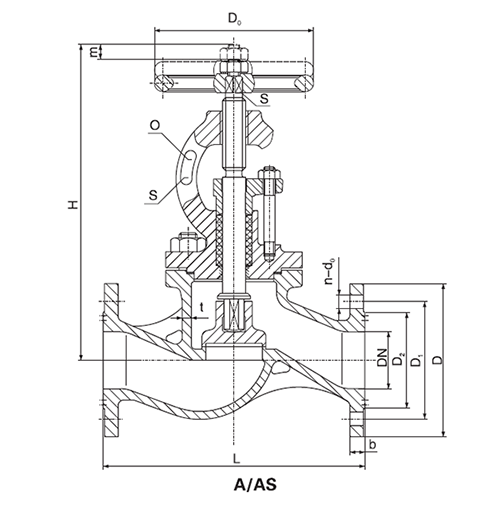

PN (MPa) DN (mm) Structure Dimension Thickness δ flange Bolt Hand wheel Lift Range Weight
L H≈
D D1 D2 d0 b n Th Do S m kgs
1.0 65 290 310 6 155 123 104 15 14 6 M14 140 12 18 14.8
80 310 345 6 170 138 118 15 14 8 M14 160 14 24 19.3
100 350 374 6 190 158 138 15 14 8 M14 180 14 35 28.5
125 400 426 7 215 183 164 15 14 10 M14 200 17 44 38.4
150 480 487 7 240 208 190 15 14 12 M14 200 17 57 56.5
1.6 125 400 465 7 225 187 168 17 17 10 M16 250 22 44 53.9
120 480 524 8 255 217 196 17 19 12 M16 280 24 57 63.2
2.5 20 150 217 5 95 68 48 13 12 4 M12 80 8 7 4.7
25 160 217 5 105 73 56 13 13 4 M12 80 8 7 5.5
32 180 236 5 115 83 64 15 13 6 M14 100 9 9 6.6
40 200 260 5 125 93 74 15 14 6 M14 120 11 11 8.7
50 230 288 6 135 103 84 15 14 6 M14 140 12 14 11.0
65 290 335 7 170 132 110 17 17 8 M16 160 14 18 18.3
80 310 366 7 185 147 126 17 19 8 M16 200 17 24 26.5
100 350 427 8 205 167 146 17 19 10 M16 250 22 35 38.2
125 400 493 9 240 196 172 21 21 10 M20 280 24 44 66.6

Type AS:

PN (MPa) DN (mm) Structure Dimension Thickness δ flange Bolt Hand wheel Lift Range
m 		Weight
L H≈
AS AS D D1 D2 d0 b n Th Do S kgs
0.6 15 130 217 4 80 55 40 11 12 4 M10 80 8 7 3.9
20 150 217 4 60 65 50 11 12 4 M10 80 8 7 4.7
25 160 217 4 100 75 60 11 14 4 M10 80 8 7 5.4
32 180 236 5 120 90 70 14 15 4 M12 100 9 9 6.6
40 200 260 5 130 100 80 14 16 4 M12 120 11 11 8.7
50 230 288 5 140 110 90 14 17 4 M12 140 12 14 11.0
65 290 310 6 160 130 110 14 17 4 M12 140 12 19 17.1
80 310 345 6 190 150 128 18 19 4 M16 160 14 26 22.6
100 350 374 6 210 170 148 18 20 4 M16 180 14 35 33.7
125 400 426 7 240 200 178 18 20 8 M16 200 17 44 45.4
150 480 487 7 265 225 202 18 20 8 M16 200 17 57 67.9
1.6 65 290 335 6 185 145 122 18 17 4 M16 160 14 18 20.8
80 310 366 6 200 160 133 18 19 8 M16 200 17 24 28.8
100 350 427 6 220 180 158 18 20 8 M16 250 22 35 45.8
125 400 465 7 250 210 184 18 22 8 M16 250 22 44 57.6
150 480 524 8 285 240 212 22 22 8 M20 280 24 57 69.5
2.5 15 130 217 5 95 65 47 14 12 4 M12 30 8 7 5.4
20 150 217 5 105 75 58 14 12 4 M12 30 8 7 5.9
25 160 217 5 115 85 68 14 14 4 M12 30 8 7 6.2
32 180 236 5 140 100 78 18 15 4 M16 100 9 9 8.8
40 200 260 5 150 110 88 18 16 4 M16 120 11 11 10.8
50 230 288 6 165 125 102 18 17 4 M16 140 12 14 14.3
65 290 335 7 185 145 122 18 17 8 M16 160 14 18 21.0
80 310 366 7 200 160 133 18 19 8 M16 200 17 24 29.0
100 350 427 8 235 190 158 22 20 8 M20 250 22 35 46.4
125 400 493 9 270 220 184 26 16 8 M24 280 24 44 76.2
