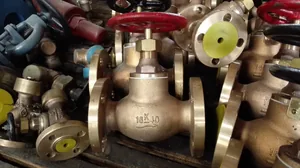

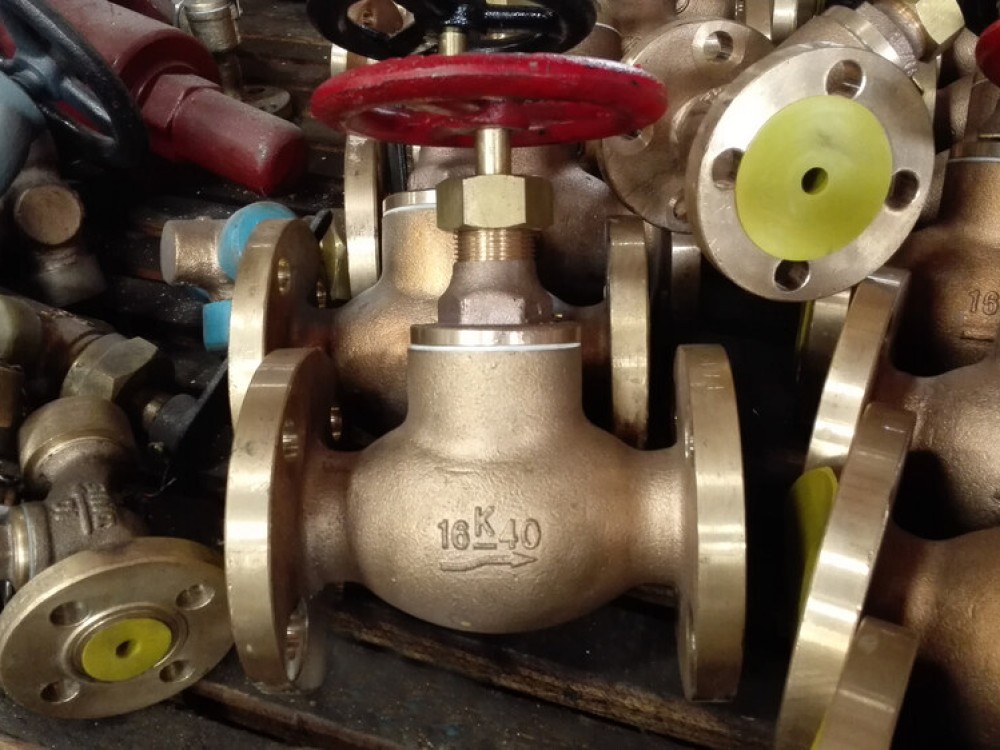

Marine Bronze Screw Down Check Globe Valve JIS F7409 16K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Screw Down Check Globe Valve JIS F7409 16K:

Marine Screw Down Check Globe Valve is also called as marine SDNR Valve, marine stop check valve,marine globe non reuturn valve, marine globe check valve..etc.

Function: open/close the pipe system and prevent the medium flowback.

Design Standard: JIS F7409-1996

Test Standard: JIS F7400-1996

Test Pressure: Body-3.3Mpa, Seat-2.42Mpa

Flange Size as per JIS B2220-16K

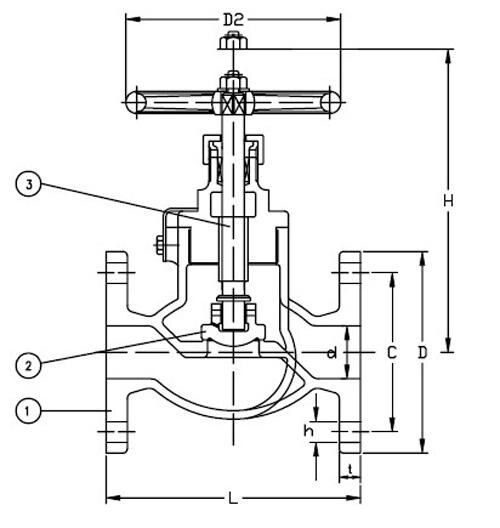

Main Material:

1-Body: Bronze (BC6) / Brass

2-Disc:Bronze (BC6) / Brass

3-Stem: Brass (C3771BD)

4-Bonnet:Bronze (BC6) /Brass

5-Handwheel: Cast Iron (FC200)

Main Size List(mm):

IMPA Code Size L D C No of Bolt Hole h t H D2
751071 15 110 95 70 4 15 12 130 80
751072 20 120 100 75 4 15 14 140 100
751073 25 130 125 90 4 19 14 160 125
751074 32 160 135 100 4 19 16 170 125
751075 40 180 140 105 4 19 16 190 140
