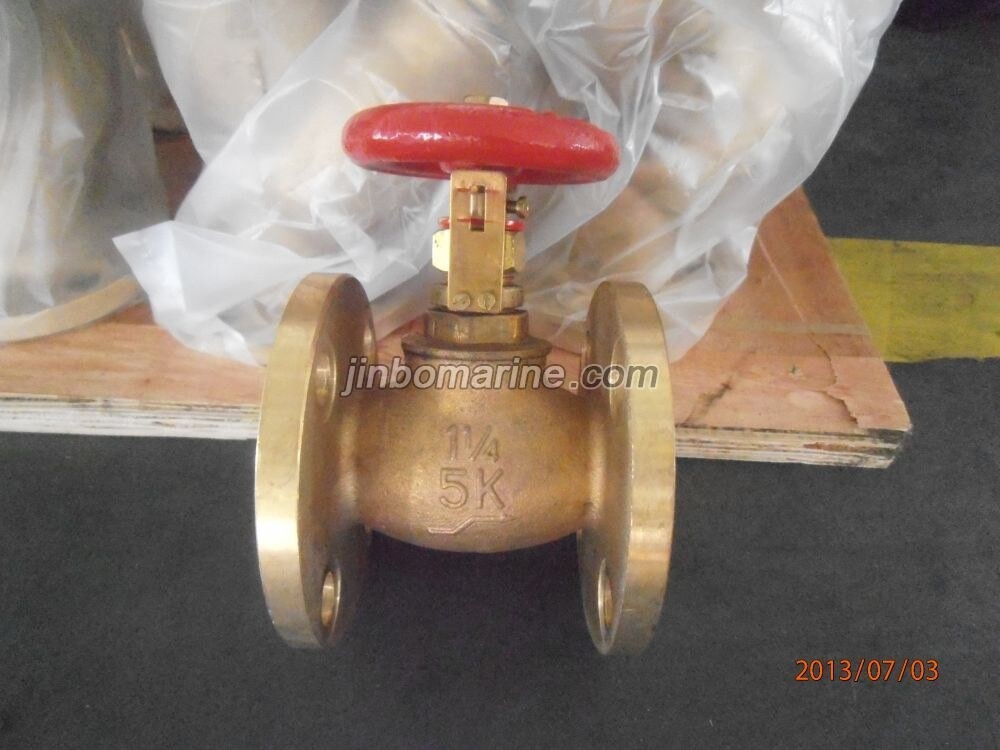

Marine Bronze SDNR Globe Valve Class 150 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze SDNR Globe Valve Class 150 5K:

Test Standard: JIS F7400-1996

Test Pressure: Body-1.05Mpa, Seat-0.77Mpa

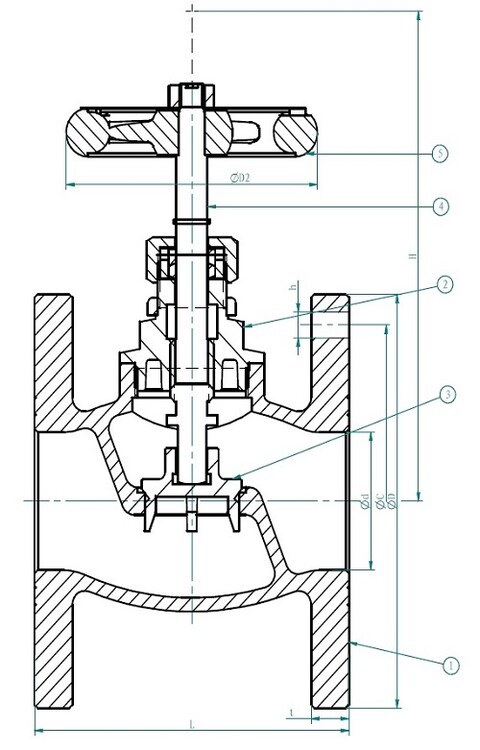

Main Material:

1-Body: Bronze (BC6)

2-Bonnet:Brass (C3771BD)

3-Disc:Brass (C3771BD)

4-Stem: Brass (C3771BD)

5-Handwheel: Cast Iron (FC200)

Main Size List(mm):

DN d L D C No of Bolt h t H D2
15 15 60 80 60 4 12 8 75.5 50
20 20 70 85 65 4 12 9 82.5 65
25 25 80 95 75 4 12 10 88.5 65
32 32 100 115 90 4 15 11 109 80
40 40 100 120 95 4 15 12 121 80
50 50 120 130 105 4 15 13 142 100
65 65 140 155 130 4 15 13 154 125
80 80 160 180 145 4 19 16 175 140
