Marine Cast Iron Angle Valve JIS F7306 5K
- Category:JIS Marine Angle Valve
- Material:Cast Iron
- Standards:JIS F7306
- Certificate:CCS,BV, NK,DNV,GL, LR, ABS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

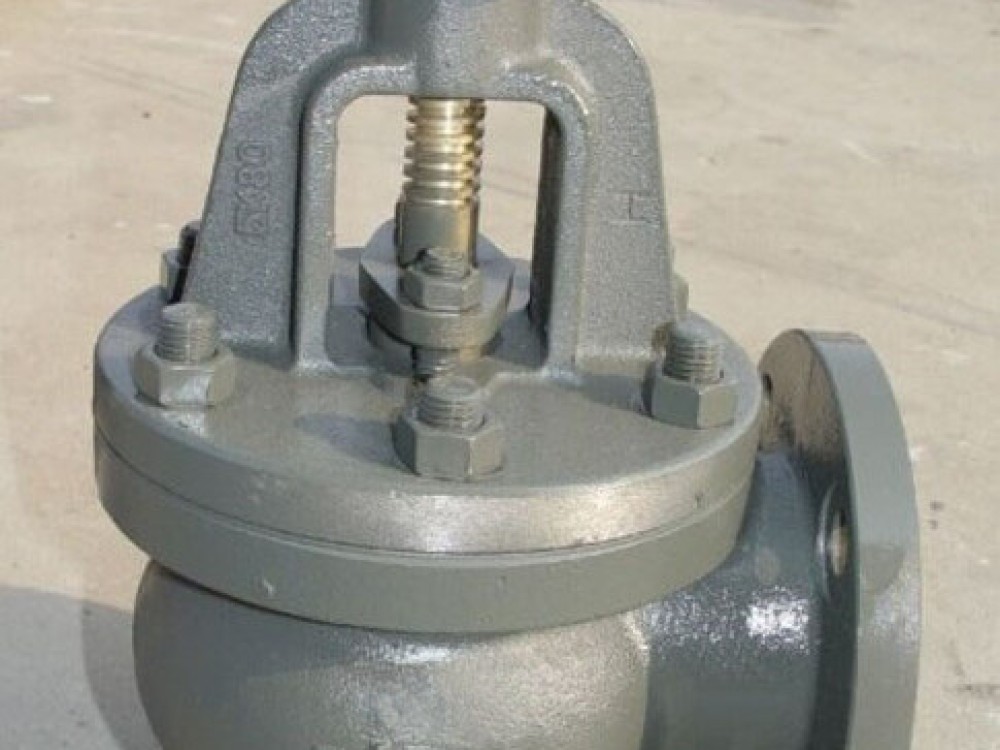

China Marine Cast Iron Angle Valve JIS F7306 5K:
Marine Cast Iron Angle Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.
Design Standard: JIS F7306-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa
Flange size as per JIS B2220 - 5K
Main Material:
Body: Cast Iron (FC200)
Bonnet: Cast Iron (FC200)
Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Gasket: non-asbestos

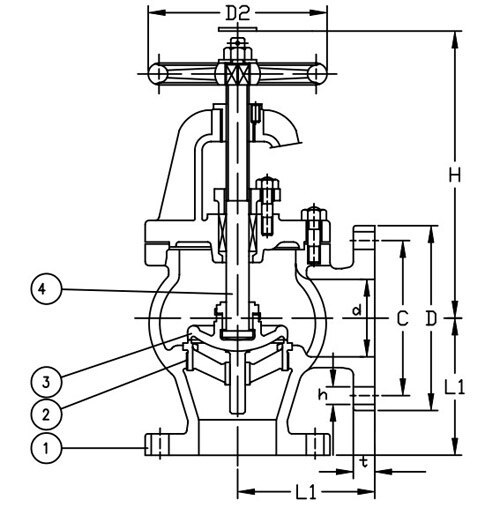

Main Size List(mm):
|
IMPA Code
|
Size | L1 | Flange diam. (D) | Pitch (C) | No of Bolt Hole | h | t | D2 | H | Weight |
| 750216 | 50 | 100 | 130 | 105 | 4 | 15 | 16 | 160 | 240 | 12.9 |
| 750217 | 65 | 115 | 155 | 130 | 4 | 15 | 18 | 180 | 255 | 18.2 |
| 750218 | 80 | 130 | 180 | 145 | 4 | 19 | 18 | 180 | 265 | 23.4 |
| 750219 | 100 | 150 | 200 | 165 | 8 | 19 | 20 | 224 | 310 | 33.7 |
| 750220 | 125 | 170 | 235 | 200 | 8 | 19 | 20 | 250 | 330 | 46.2 |
| 750221 | 150 | 190 | 265 | 230 | 8 | 19 | 22 | 280 | 380 | 63.4 |
| 750222 | 200 | 220 | 320 | 280 | 8 | 23 | 24 | 315 | 450 | 105 |
| 750223 | 250 | 275 | 385 | 345 | 12 | 23 | 26 | 355 | 540 | 176 |
| 750224 | 300 | 310 | 430 | 390 | 12 | 23 | 28 | 400 | 610 | 243 |
| 750225 | 350 | 360 | 480 | 435 | 12 | 25 | 30 | 500 | 690 | 335 |
| 750225 | 400 | 395 | 540 | 495 | 16 | 25 | 30 | 630 | 770 | 459 |
