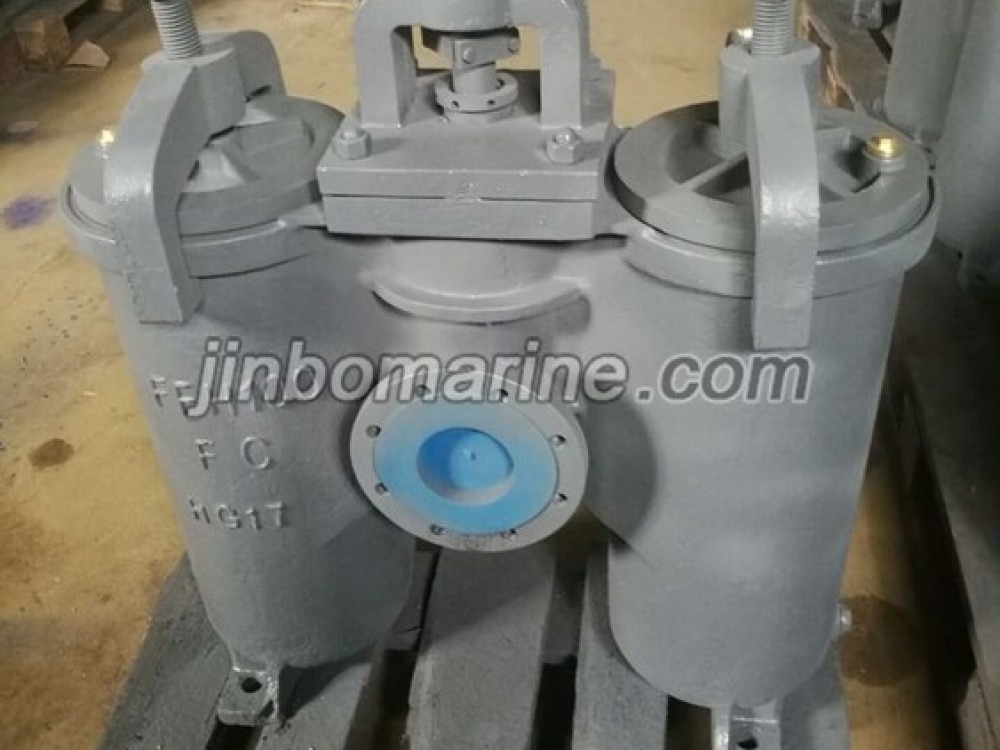

Marine Cast Iron Duplex Oil Strainer JIS F7208 HS Type

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Iron Duplex Oil Strainer JIS F7208 HS Type:

Design Standard: JIS F7208-2005

Test Standard: JIS F7200-1996

Hydraulic Test Pressure: Body-0.6Mpa, Seal: 0.44Mpa

Max Working Pressure: 0.4Mpa

Flange size as per JIS B2220-5K or 10K

Norminal Size: DN25~DN200

Main Material:

Body: Cast Iron(FC200)

Bonnet: Cast Iron (FC200)

Strainer: Carbon Steel (SS400) or Stainless Steel (SUS304 or SUS316)

Gasket: NBR

Yoke: Nodular Cast Iron (FCD450)

Air Vent Plug: Brass

Drain Plug: Brass

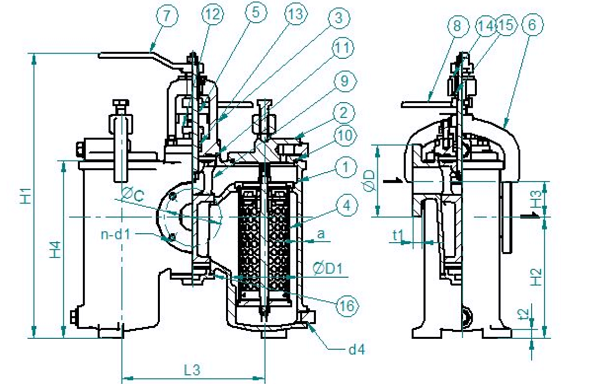

Main Size List(mm):

DN L1 L2 D C d1 H1 L3 H2 H3 D1 a D2 H5 L4 L5 t d3 L6
25 115 268 95 75 M10 247 180 82.5 50 70 6 48 98 100 200 10 12 170
32 140 390 115 90 M12 347 240 123 80 110 8 86 148 146 275 13 15 220
40 140 390 120 95 M12 347 240 123 80 110 8 86 148 146 275 13 15 220

* Duplex Oil Strainer has many different type, the size can be from DN25-DN200, Flange can be manufactured according to 5K or 10K. In the list, the flange size is 5K.
