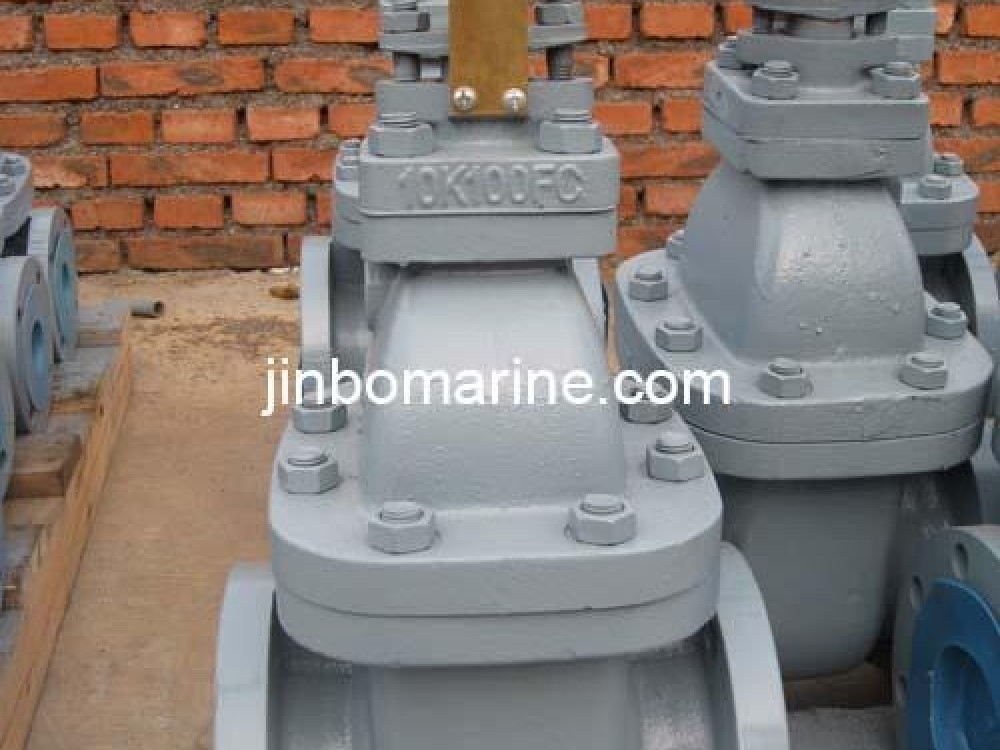

Marine Cast Iron Gate Valve JIS F7364 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Iron Gate Valve JIS F7364 10K:

Design Standard: JIS F7364-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 - 10K

Main Material:

Body: FC200 (Cast Iron)

Bonnet: FC200 (Cast Iron)

Disc: Bronze (BC6) or SCS2 (2Cr13)

Seat: Bronze (BC6) or SCS2 (2Cr13)

Stem: Brass (C3771BD) or SUS403

Gasket: non-asbestos

Packing Gland: Bronze (BC6) or SCS2(2Cr13)

Handwheel: FC200 (Cast Iron)

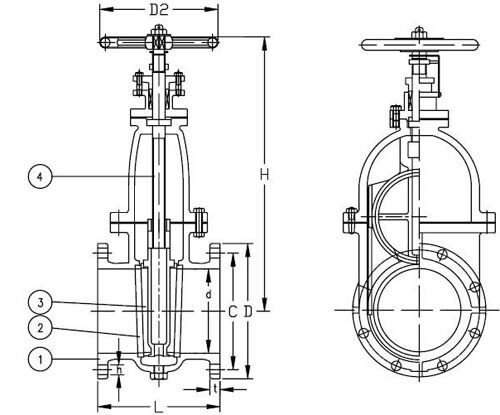

Main Size List(mm):

Size
L Flange diam. (D) Pitch (C) Hole (nxh) t H Weight
50 200 155 120 4-19 20 300 19.4
65 220 175 140 4-19 22 350 27.6
80 230 185 150 8-19 22 400 33
100 250 210 175 8-19 24 450 45.8
125 270 250 210 8-23 24 520 65.9
150 290 280 240 8-23 26 580 86
200 320 330 290 12-23 26 700 136
250 380 400 355 12-25 30 840 230
300 440 445 400 16-25 32 960 331
350 500 490 445 16-25 34 1050 433
400 590 560 510 16-27 36 1150 597
